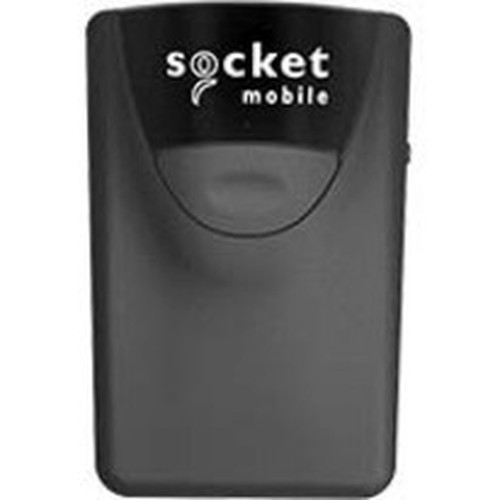

Socket Mobile CX3443-1899 SocketScan S860 Ultimate Barcode Scanner - Wireless - 19. 5" Range - DotCode & Travel ID Reader
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S860 utilizes a high-performance imager sensor capable of reading barcodes from distances up to 19.5 inches (495.3 mm), providing operators with comfortable working range and reducing repetitive strain. The scanner processes both traditional linear barcodes and modern matrix codes, including QR, Data Matrix, PDF417, and postal codes from multiple regions.
Beyond standard retail and industrial symbologies, this scanner supports OCR-A and OCR-B optical character recognition, MICR-E13B for check processing, and can capture US currency serial numbers. The wireless Bluetooth interface ensures compatibility with smartphones, tablets, and mobile computers running iOS, Android, or Windows operating systems.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SocketScan S860 combines extended scanning range with comprehensive symbology support to address specialized identification needs that generic scanners cannot handle. Its ability to read DotCode—a high-density 2D code used in tobacco and pharmaceutical tracking—and travel documents like passports makes it uniquely suited for regulated industries and border control applications.
Specialized Code Support
Handles DotCode for track-and-trace compliance, plus postal codes from Australia, Japan, Netherlands, and US systems including Intelligent Mail and Postnet.
- DotCode compliance
- International postal codes
- Travel document reading
Mobile Deployment Ready

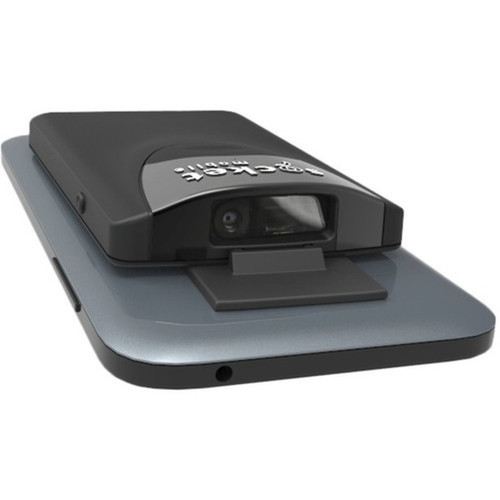

Wireless design with universal clip case enables secure attachment to belts, lanyards, or mobile device mounts for hands-free operation in dynamic environments.
- Bluetooth connectivity
- Universal clip case included
- Lightweight handheld design
Deployment / Use Cases
The S860 excels in mobile point-of-sale, inventory management, and field service applications where operators need to scan items without being tethered to a fixed workstation. Retail associates can process transactions anywhere on the sales floor, warehouse teams can conduct cycle counts without returning to terminals, and delivery drivers can verify packages directly from their handheld devices.
Government and transportation agencies benefit from the travel ID reading capabilities for passport verification and border control operations. The scanner's environmental compliance with WEEE and RoHS directives ensures it meets regulatory requirements for electronic equipment in various jurisdictions.
Retail & Mobile POS
Enables line-busting during peak hours by allowing associates to scan items and process payments anywhere in the store using mobile devices.
Logistics & Warehousing
Supports inventory management, receiving, and shipping operations with extended scanning range that reduces operator fatigue during high-volume sessions.
Physical Profile
Designed for all-day comfort, the S860 measures just 3.42 inches long by 2.12 inches wide by 0.52 inches thick (86.87 x 53.85 x 13.21 mm) and weighs only 1.69 ounces (48 g). The compact form factor fits comfortably in hand while the lightweight construction minimizes fatigue during extended scanning sessions. The scanner's durable housing withstands typical commercial use while maintaining a professional appearance suitable for customer-facing environments.
- Width
- 2.12" (53.85 mm)
- Height
- 0.52" (13.21 mm)
- Weight
- 1.69 oz (48 g)
- Length
- 3.42" (86.87 mm)
What's in the Box
The package includes everything needed for immediate deployment. Each unit comes complete with:
Highlights
- Wireless Bluetooth connectivity for mobile scanning freedom
- 19.5" (495.3 mm) scanning range reduces operator strain
- Supports DotCode for track-and-trace compliance
- Reads travel documents including passports and IDs
- Comprehensive 1D and 2D barcode symbology support
- OCR-A/B and MICR-E13B character recognition capabilities
- Lightweight handheld design at just 1.69 oz (48 g)
- Includes universal clip case for secure attachment
- WEEE and RoHS environmental compliance
- 1-year limited warranty with US manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX3443-1899 |
| Brand Name | Socket Mobile |
| Product Line | SocketScan |
| Product Series | 800 |
| Product Model | S860 |
| Product Name | SocketScan® S860, Ultimate Barcode Scanner, DotCode & Travel ID Reader |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Bookland EAN Chinese 2 of 5 Codabar Code 11 Code 39 Code 93 Code 128 Composite CC-A/B Composite CC-C Composite TLC Discrete 2 of 5 EAN-13/JAN EAN-8/JAN GS1 Databar GS1 Databar Expanded GS1 Databar Limited GS1-128 Interleaved 2 of 5 ISBT 128 ISSN EAN Matrix 2 of 5 MSI UPC/EAN/JAN UPC A UPC EO 2D: Aztec Data Matrix Maxicode Micro PDF417 MicroQR PDF417 QR Code Postal Codes: Australia Post Han Xin Japan Postal KIX Code Maxicode Netherlands UPU FICS Posta US Planet US Postnet USPS 4CB/One Code/Intelligent Mail OCR Type Face: OCR-A OCR-B MICR-EBB US currency serial number |
| Image Sensor Type | Imager |
| Scanning Distance | 19.50" (495.30 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Height | 0.52" (13.21 mm) |
| Width | 2.12" (53.85 mm) |
| Length | 3.42" (86.87 mm) |
| Weight (Approximate) | 1.69 oz (48 g) |
| Miscellaneous | |
| Package Contents | SocketScan S860 Handheld Barcode Scanner Passport Reader 1 x Micro USB Charging Cable 1 x Universal Klip Case 1 x Get Started Insert |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What types of barcodes can the SocketScan S860 read?
The S860 reads an extensive range of 1D and 2D barcode symbologies including standard retail codes (UPC, EAN, Code 128), 2D matrix codes (QR, Data Matrix, PDF417), specialized formats like DotCode used in pharmaceutical tracking, and postal codes from multiple countries. It also supports OCR character recognition and can capture US currency serial numbers.
How does the wireless connectivity work with mobile devices?
The scanner uses Bluetooth wireless technology to pair with smartphones, tablets, and mobile computers running iOS, Android, or Windows operating systems. This enables cable-free operation for mobile point-of-sale, inventory management, and field service applications where operators need to move freely while scanning.
What is the maximum scanning distance for this barcode scanner?
The SocketScan S860 can read barcodes from distances up to 19.5 inches (495.3 mm) from the target surface. This extended range allows operators to scan items comfortably without needing to bring the scanner into direct contact with each barcode, reducing repetitive motion and increasing productivity.
Can this scanner read travel documents like passports?
Yes, the S860 includes specialized capabilities for reading travel documents including passports and various government-issued IDs. This makes it suitable for border control, transportation, and security applications where document verification is required alongside standard barcode scanning.
What accessories are included with the scanner?
Each SocketScan S860 comes complete with a Micro USB charging cable for power, a universal clip case that attaches to belts or lanyards for hands-free operation, and a get-started insert with setup instructions. The scanner itself functions as both a barcode scanner and passport reader.
What environmental standards does this product comply with?
The SocketScan S860 complies with the Waste Electrical and Electronic Equipment (WEEE) Directive and Restriction of Hazardous Substances (RoHS) regulations. These environmental standards ensure responsible manufacturing and disposal practices, making the scanner suitable for organizations with sustainability requirements.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
