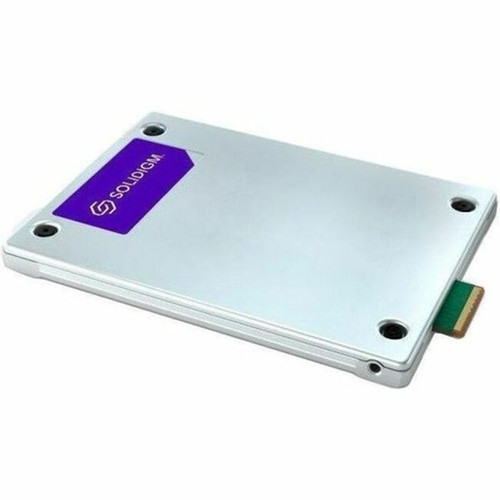

SOLIDIGM D5-P5336 15.36 TB Solid State Drive - E3.S Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Server, Data Center Device (SBFPFABV153T001)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Storage Capacity: 15.36 TB
Random 4KB Read: 770000IOPS
Random 4KB Write: 17900IOPS
Endurance (DWPD): 0.42
Endurance (TBW): 6062.08 TB
Maximum Sequential Read: 6.64 GB/s
Maximum Sequential Write: 1.76 GB/s
Mean Time Between Failures (MTBF): 228.2 Year
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 4.0 x4
Drive Type: Internal
Form Factor: E3.S
Height: 0.30" (7.50 mm)
Weight (Approximate): 3.17 oz (90 g)
Device Supported: Server,Data Center
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- With 15.36 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
- PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput
[custom-specifications]
| Specifications | |
| Manufacturer | SOLIDIGM |
| Manufacturer Part Number | SBFPFABV153T001 |
| Manufacturer Website Address | http://www.solidigm.com |
| Brand Name | SOLIDIGM |
| Product Series | D5-P5336 |
| Product Name | D5-P5336 Solid State Drive |
| Packaged Quantity | 1 Pack |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 15.36 TB |
| Drive Performance | |
| Random 4KB Read | 770000IOPS |
| Random 4KB Write | 17900IOPS |
| Endurance (DWPD) | 0.42 |
| Endurance (TBW) | 6062.08 TB |
| Maximum Sequential Read | 6.64 GB/s |
| Maximum Sequential Write | 1.76 GB/s |
| Mean Time Between Failures (MTBF) | 228.2 Year |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | E3.S |
| Height | 0.30" (7.50 mm) |
| Weight (Approximate) | 3.17 oz (90 g) |
| Miscellaneous | |
| Device Supported | Server,Data Center |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
