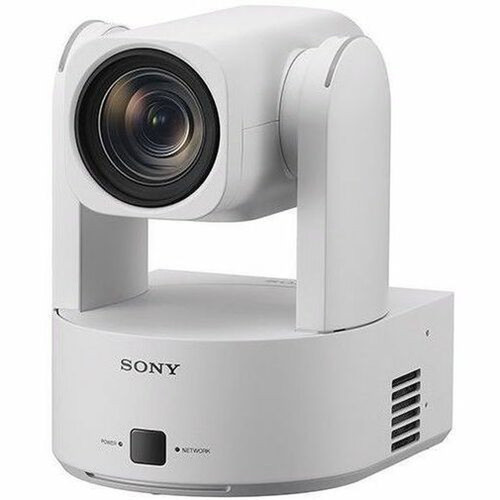

Sony BRCAM7W BRC-AM7 4K PTZ Network Camera - 20x Optical Zoom - 3840 x 2160 60fps - Exmor RS 1" Sensor - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the BRC-AM7 is Sony's Exmor RS CMOS sensor, which delivers exceptional low-light sensitivity and wide dynamic range. The 20x optical zoom lens covers focal lengths from 24mm wide-angle to 480mm telephoto, with aperture ranging from f/2.8 to f/4.5 for flexible depth of field control.
Video output supports both broadcast (3G-SDI, 12G-SDI) and consumer (HDMI) interfaces, while network connectivity enables streaming via RTSP, RTMP, SRT, and VISCA protocols. The camera records directly to memory cards and includes audio support for integrated surveillance systems.
This section brings together practical product details such as HD Recording, Recording Formats, AI-powered, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This camera stands out with professional-grade connectivity options including 12G-SDI for uncompressed 4K video transmission over long distances. PoE+ support simplifies installation by delivering both power and data over a single Ethernet cable.
Advanced Imaging Performance
The 1" sensor and 4K resolution provide superior image clarity compared to smaller-sensor cameras, with 60fps ensuring smooth motion capture for forensic review or live production.
- Exmor RS CMOS sensor technology
- 3840×2160 at 60fps
- Wide 75° field of view
Intelligent Tracking & Analytics
AI-powered features automate surveillance tasks, reducing operator workload and improving monitoring efficiency in busy environments.
- Auto Tracking follows subjects automatically
- Face Detection identifies human presence
- PTZ enables remote pan/tilt/zoom control
Deployment / Use Cases
Educational institutions benefit from the AI tracking for lecture capture, while retail environments use the detailed 4K footage for loss prevention and customer behavior analysis. The operating temperature range of 32°F to 104°F allows reliable performance in both indoor climate-controlled spaces and semi-protected outdoor installations.
This section brings together practical product details such as HD Recording, Recording Formats, AI-powered, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Critical Infrastructure Monitoring
The 20x zoom and 4K resolution make this camera ideal for monitoring large areas like parking lots, warehouses, or perimeter fences where detail at distance is essential.
Live Event Production
With broadcast outputs and smooth 60fps capture, the BRC-AM7 serves as a remote camera for streaming conferences, sports events, or performances where professional video quality is required.
Physical Profile
The BRC-AM7 features a compact, professional design measuring 6.64" wide × 7.57" high × 8.87" deep. Its white housing maintains a neutral appearance suitable for various environments. Weighing 8.16 pounds, the camera provides stable mounting for both fixed and PTZ applications. The robust construction supports reliable operation across the full temperature range.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.57" (192.30 mm), 6.64" (168.70 mm), 8.87" (225.20 mm), 8.16 lb (3700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.64" (168.70 mm)
- Depth
- 8.87" (225.20 mm)
- Height
- 7.57" (192.30 mm)
- Weight
- 8.16 lb (3700 g)
- Length
- 24 mm (0.94")
Highlights
- 4K UHD resolution (3840×2160) at 60 frames per second
- 20x optical zoom lens with 24-480mm focal range
- 1" Exmor RS CMOS sensor for superior image quality
- AI-powered auto tracking and face detection
- Professional video outputs: HDMI, 3G-SDI, and 12G-SDI
- Power over Ethernet (PoE/PoE+) and DC 12V options
- Supports RTSP, RTMP, SRT, and VISCA protocols
- Records directly to memory card storage
- 75° field of view for comprehensive coverage
- Operating temperature range: 32°F to 104°F (0°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sony Corporation |
| Manufacturer Part Number | BRCAM7W |
| Brand Name | Sony |
| Product Model | BRC-AM7 |
| Product Name | BRC-AM7 Network Camera |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor RS CMOS |
| Image Sensor Size | 1" |
| Color Supported | Color |
| Field of View | 75 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI,12G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Minimum Focal Length | 24 mm (0.94") |
| Maximum Focal Length | 480 mm (18.90") |
| Minimum Aperture | f/4.5 |
| Maximum Aperture | f/2.8 |
| Optical Zoom | 20x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Protocols | RTSP,RTMP,SRT,VISCA |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE+,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Height | 7.57" (192.30 mm) |
| Width | 6.64" (168.70 mm) |
| Depth | 8.87" (225.20 mm) |
| Weight (Approximate) | 8.16 lb (3700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | PTZ,Face Detection,Auto Tracking |
FAQ
What is the maximum video resolution of the Sony BRC-AM7 camera?
The Sony BRC-AM7 captures 4K Ultra HD video at 3840×2160 resolution. This high resolution provides exceptional detail for surveillance applications, allowing operators to zoom in digitally while maintaining clear imagery for identification purposes.
Does this camera support Power over Ethernet?
Yes, the BRC-AM7 supports both standard PoE and PoE+ (802.3at) for simplified installation. It can also be powered via 12V DC input, giving installers flexibility in deployment scenarios where PoE switches may not be available.
What type of optical zoom does this PTZ camera offer?
This camera features a 20x optical zoom lens that ranges from 24mm wide-angle to 480mm telephoto. Optical zoom maintains full image quality throughout the zoom range, unlike digital zoom which reduces resolution as you zoom in.
What video output interfaces are available on the BRC-AM7?
The camera provides multiple professional video outputs including HDMI for local monitoring, plus 3G-SDI and 12G-SDI for broadcast-quality transmission over longer distances. The 12G-SDI interface supports uncompressed 4K video up to 100 meters.
What AI features does this network camera include?
The BRC-AM7 incorporates AI-powered auto tracking that follows moving subjects automatically, along with face detection capabilities. These intelligent features reduce operator workload by automating surveillance tasks and focusing attention on relevant activity.
What is the operating temperature range for this camera?
This camera operates reliably in temperatures from 32°F to 104°F (0°C to 40°C). This range makes it suitable for both climate-controlled indoor environments and semi-protected outdoor installations where temperature fluctuations occur.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
