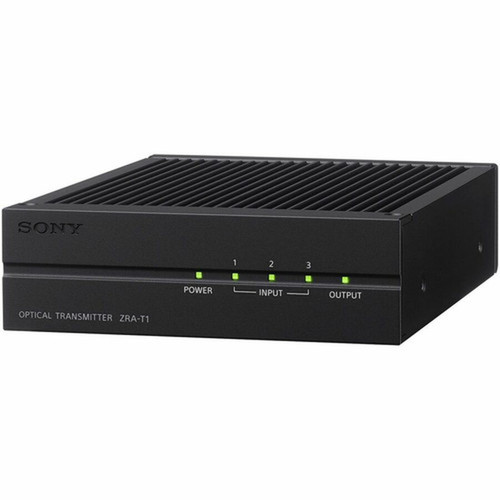

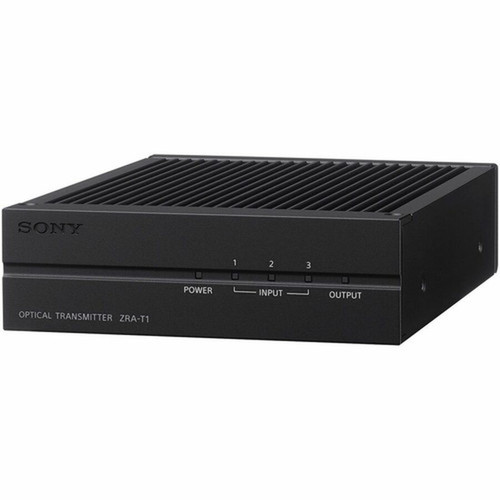

Sony ZRAT1 Optical Transmitter for Crystal LED Displays - 3 RJ-45 Ports - Multimode Fiber - SFP+ Slot - 10G Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This optical transmitter supports multi-mode fiber and twisted pair cables, with a maximum transmission distance of 0.30 km (0.19 miles). The 10/100/1000Base-T and 10GBase-X network technologies ensure compatibility with various network infrastructures, from standard Gigabit to high-speed 10G environments.
The inclusion of an SFP+ slot allows for flexible expansion with compatible optical modules, while the three RJ-45 ports provide direct copper connectivity. Power is supplied via DC input with a modest 10-watt consumption, contributing to energy-efficient operation in rack or equipment cabinet deployments.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ZRAT1 transmitter offers several advantages for professional display installations. Its dual-media support allows network designers to choose the most cost-effective cabling solution for each segment while maintaining high-speed data transfer capabilities.
Flexible Media Support
Simultaneously supports twisted pair copper cables for short runs and multi-mode fiber for extended distances up to 300 meters, providing deployment flexibility.
- Cost-effective copper for under 100m
- Fiber for longer distance requirements
- Mixed media environments supported
High-Speed Connectivity
Delivers up to 1000Mbps over twisted pair and 10Gbps over fiber with 10GBase-X technology, ensuring sufficient bandwidth for high-resolution display content.
- 10/100/1000Base-T copper support
- 10GBase-X fiber capability
- SFP+ slot for module expansion
Deployment / Use Cases
This optical transmitter is specifically designed for Sony Crystal LED display solutions, where it serves as a critical component in the signal distribution chain. It converts electrical signals from source devices to optical signals for transmission over fiber, or maintains copper connectivity for shorter runs.
Typical deployments include large-scale video walls, digital signage installations, broadcast control rooms, and command centers where multiple displays require synchronized content delivery. The device enables signal extension beyond typical copper limitations while maintaining the high bandwidth needed for 4K and beyond content.
Large Display Arrays
Ideal for Crystal LED video walls and large-format displays where signals must travel significant distances from source to display processors without degradation.
Mixed Infrastructure
Suited for environments with existing copper infrastructure that need fiber extension for specific runs, allowing gradual network upgrades without complete rewiring.
Physical Profile
The compact form factor measures 4.33" wide × 5.61" deep × 1.32" high (109.98 × 142.49 × 33.53 mm) and weighs approximately 1.32 lb (599.88 g). This modest footprint allows for flexible placement in equipment racks, behind displays, or within console furniture without consuming excessive space. The DC power input and low thermal output make it suitable for enclosed installations where ventilation may be limited.
- Width
- 4.33" (109.98 mm)
- Depth
- 5.61" (142.49 mm)
- Height
- 1.32" (33.53 mm)
- Weight
- 1.32 lb (599.88 g)
Highlights
- Designed specifically for Sony Crystal LED large display solutions
- Three RJ-45 ports for twisted pair copper connectivity
- Supports multi-mode fiber for distances up to 0.30 km (0.19 miles)
- SFP+ expansion slot for flexible optical module compatibility
- 10/100/1000Base-T and 10GBase-X network technologies
- Gigabit and 10 Gigabit Ethernet support
- DC power operation with 10-watt consumption
- Compact form factor for space-constrained installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sony Corporation |
| Manufacturer Part Number | ZRA-T1 |
| Brand Name | Sony Pro |
| Product Model | ZRA-T1 |
| Product Name | ZRA-T1 Optical Transmitter for Crystal LED Large Display Solutions |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Power Description | |
| Power Source | DC |
| Power Consumption | 10 W |
| Physical Characteristics | |
| Height | 1.32" (33.53 mm) |
| Width | 4.33" (109.98 mm) |
| Depth | 5.61" (142.49 mm) |
| Weight (Approximate) | 1.32 lb (599.88 g) |
User Manual
FAQ
What types of cables does the Sony ZRAT1 transmitter support?
The transmitter supports both twisted pair copper cables (like Cat5e, Cat6) and multi-mode optical fiber cables. This dual-media capability allows you to use cost-effective copper for shorter runs under 100 meters while utilizing fiber for extended distances up to 300 meters where signal integrity over longer distances is required.
What is the maximum transmission distance supported?
The ZRAT1 supports transmission distances up to 0.30 kilometers (0.19 miles) when using multi-mode fiber. For twisted pair copper connections, typical Ethernet distance limitations apply (approximately 100 meters). The fiber capability extends your signal reach significantly beyond copper limitations for large installation environments.
How many network ports does this transmitter have?
This device features three RJ-45 ports for copper Ethernet connections plus one SFP+ expansion slot for optical module installation. The SFP+ slot accepts compatible optical transceivers, providing flexibility to match specific fiber types and connector requirements for your installation.
What network speeds does the ZRAT1 support?
The transmitter supports both Gigabit Ethernet (1000Mbps) and 10 Gigabit Ethernet technologies. Over copper, it delivers 10/100/1000Base-T connectivity, while the fiber interface supports 10GBase-X for high-speed optical transmission. This ensures sufficient bandwidth for high-resolution display content and future network upgrades.
What power requirements does this transmitter have?
The ZRAT1 operates on DC power with a consumption of just 10 watts. This low power draw makes it suitable for energy-conscious installations and allows for deployment in locations with limited power availability. The DC operation also contributes to stable performance in professional AV environments.
Is this transmitter compatible with standard network equipment?
Yes, the ZRAT1 uses standard Ethernet technologies (10/100/1000Base-T and 10GBase-X) that are compatible with most network switches, routers, and display processors. The SFP+ slot accepts industry-standard optical modules, ensuring interoperability with existing fiber infrastructure and simplifying integration into diverse network environments.
