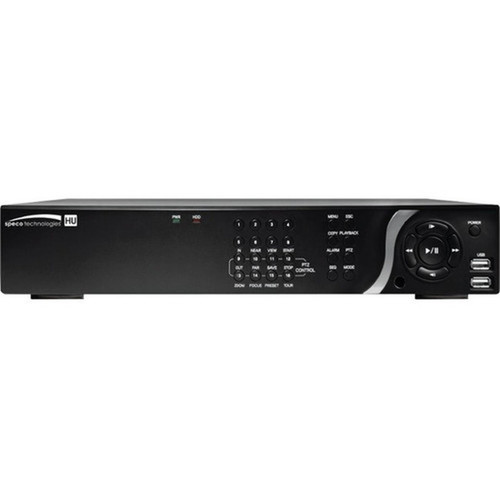

Speco D16HU8TB 16-Channel 4K IP/HD-TVI Hybrid Video Recorder - 8 TB HDD - HDMI - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This hybrid video recorder supports up to 16 total channels, accommodating a mix of IP and HD-TVI camera inputs. It records video in H.264 format at a maximum resolution of 8MP (4K) and a frame rate of 30 fps, delivering clear, smooth footage for detailed surveillance analysis. The 8 TB hard drive offers ample installed storage for extended recording periods, reducing the frequency of maintenance interventions.
Connectivity is centered on wired Ethernet for network integration, with remote management enabling off-site monitoring and configuration. The recorder includes 16 audio input ports for synchronized audio recording, one audio output, and both HDMI and VGA video outputs for local monitoring. USB ports facilitate easy data transfer and peripheral connections, while composite video inputs and outputs support legacy video equipment integration.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Speco D16HU8TB stands out with its hybrid design, allowing seamless integration of both modern IP cameras and existing HD-TVI analog cameras. This flexibility reduces upgrade costs and simplifies system expansion. The pre-configured 8 TB hard drive eliminates initial storage setup, providing immediate high-capacity recording right out of the box.
Hybrid Camera Support
Simultaneously connect 4K IP cameras and HD-TVI analog cameras on the same unit, enabling phased upgrades and mixed-technology deployments.
- Protects analog camera investments
- Simplifies migration to IP
Substantial Installed Storage
The 8 TB internal hard drive offers significant recording capacity for high-resolution video, reducing the need for early storage expansions.
- Ready for extended retention
- Minimizes initial configuration
Deployment / Use Cases
This recorder is ideal for small-to-mid-sized businesses, retail environments, office buildings, and educational facilities requiring reliable 24/7 surveillance. Its 16-channel capacity suits locations with multiple entry points, parking areas, and interior spaces that need comprehensive camera coverage. The hybrid capability makes it particularly valuable for organizations transitioning from analog to IP surveillance systems.
Deploy the D16HU8TB in security control rooms, IT closets, or network racks where centralized video management is needed. Use the HDMI or VGA outputs to connect to monitoring displays, and leverage remote management for off-site oversight by security personnel. The rack-mountable design integrates neatly into standard server racks, conserving space in equipment rooms.
Business Security Upgrades
Upgrade legacy analog systems incrementally by adding IP cameras while retaining existing HD-TVI cameras, balancing performance improvements with budget control.
Multi-Camera Monitoring
Monitor up to 16 cameras across different areas such as lobbies, warehouses, and perimeters, with centralized recording and management.
Physical Profile
The recorder measures 15" wide, 13.40" deep, and 2.80" high, with a compact form factor designed for standard 19-inch rack mounting. Its dimensions allow efficient use of rack space in server rooms or security enclosures. The unit's construction supports stable operation in controlled indoor environments, with a design focused on durability and heat dissipation for continuous recording duty.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.80" (71.12 mm), 15" (381 mm), 13.40" (340.36 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 15" (381 mm)
- Depth
- 13.40" (340.36 mm)
- Height
- 2.80" (71.12 mm)
What's in the Box
The package includes the 16-channel hybrid video recorder, a rack-mount kit for secure installation, an IR remote control for convenient operation, and a mouse for easy navigation of the recorder's interface. All components are supplied for immediate deployment.
Highlights
- 16-channel hybrid recorder supports both 4K IP and HD-TVI cameras
- 8 TB pre-installed hard drive for substantial video storage capacity
- Records at up to 8MP resolution with H.264 compression
- HDMI and VGA outputs for flexible local monitoring
- Remote management enables off-site surveillance access
- TAA compliant for government and institutional procurement
- 5-year limited warranty for long-term reliability
- Rack-mountable design for organized installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | D16HU8TB |
| Brand Name | Speco |
| Product Model | D16HU |
| Product Name | 16 Channel 4K IP, HD-TVI Hybrid Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Hybrid Video Recorder |
| Storage | |
| Hard Drive Capacity | 8 TB |
| Video | |
| Video Formats | H.264 |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 16 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 2.80" (71.12 mm) |
| Width | 15" (381 mm) |
| Depth | 13.40" (340.36 mm) |
| Miscellaneous | |
| Package Contents | 16 Channel 4K IP, HD-TVI Hybrid Video Recorder Rack Mountable IR Remote Control Mouse |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of cameras does this hybrid recorder support?
The Speco D16HU8TB supports both 4K IP cameras and HD-TVI analog cameras simultaneously. This hybrid design allows you to mix camera technologies on the same unit, making it ideal for upgrading existing analog systems while adding new IP cameras. You can connect up to 16 cameras in total, with flexible allocation between IP and HD-TVI inputs based on your surveillance needs.
How much video storage does the 8 TB hard drive provide?
The 8 TB internal hard drive offers substantial storage for high-resolution surveillance footage. Actual recording duration depends on factors like camera resolution, frame rate, compression settings, and the number of active cameras. For typical deployments with a mix of camera types, this capacity supports extended retention periods, reducing the frequency of maintenance and ensuring critical video evidence is retained for investigative or compliance purposes.
What video outputs are available for local monitoring?
This recorder includes both HDMI and VGA video outputs, allowing connection to modern monitors or legacy displays. The HDMI output supports high-definition video for clear playback, while the VGA output provides compatibility with older display equipment. These outputs enable real-time monitoring of camera feeds in a security control room or onsite viewing station, with flexible display options to suit your existing setup.
Is this recorder compliant with government procurement standards?
Yes, the Speco D16HU8TB is TAA (Trade Agreements Act) compliant, meeting requirements for government and institutional purchases in the United States. This compliance ensures the product adheres to specific sourcing regulations, making it suitable for public-sector projects, educational institutions, and other organizations that mandate TAA-certified equipment for surveillance systems.
Can I manage this recorder remotely?
Yes, the recorder supports remote management via its Ethernet connection. You can access the system over a network to view live feeds, review recorded footage, adjust settings, and receive alerts from off-site locations. This capability is essential for security teams that need to monitor multiple sites centrally or respond to incidents without being physically present at the recorder's location.
What is included in the warranty coverage?
Speco provides a 5-year limited warranty for this hybrid video recorder. This warranty covers defects in materials and workmanship under normal use, offering long-term protection for your surveillance investment. The extended warranty period reflects the product's reliability and is typical for professional-grade surveillance equipment, giving you confidence in its durability for continuous operation.
