Speco ZIPT88B2 8-Channel HD-TVI DVR & Camera Kit - 2 TB HDD - 1080p - 240 fps - Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance system leverages HD-TVI technology to deliver high-quality video over coaxial cables, maintaining compatibility with existing analog infrastructure while supporting 1080p resolution. The DVR encodes video using the efficient H.264 compression standard, optimizing storage usage without compromising detail. It supports both PAL and NTSC video signal formats, making it suitable for international deployments.

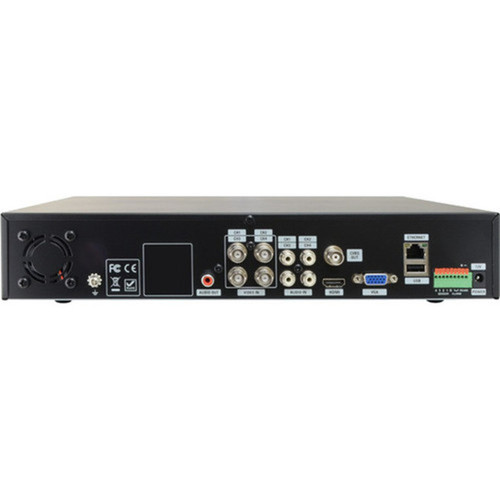

The recorder provides comprehensive connectivity options, including Ethernet for network integration, USB for peripheral connections, and multiple video outputs such as HDMI and VGA for local monitoring. Audio support includes four input ports and one output port, enabling integration with audio surveillance. The system's 240 fps maximum frame rate ensures smooth video playback across all channels.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Speco ZIPT88B2 combines ease of installation with robust performance, offering a balanced feature set for entry-level and mid-range surveillance needs. Its included camera kit eliminates compatibility concerns, while the DVR's intuitive interface simplifies configuration and operation.
Complete Surveillance Package
Includes eight 1080p IR bullet cameras and the DVR unit, reducing procurement complexity and ensuring seamless integration.
- 8 cameras pre-configured for the DVR
- IR illumination for night vision
- Bullet form factor for versatile mounting
Reliable Recording & Storage
The 2 TB hard drive provides ample capacity for extended recording periods, supported by efficient H.264 compression.
- 2 TB pre-installed HDD
- H.264 video compression
- 240 fps maximum frame rate
Flexible Monitoring & Management
Remote access enables live viewing and playback from mobile devices, while local outputs like HDMI and VGA support on-site displays.
- Remote management via network
- HDMI and VGA outputs
- USB port for data export
Deployment / Use Cases
This kit is ideal for small businesses, retail stores, offices, and light industrial facilities requiring comprehensive video coverage without complex infrastructure. The eight-channel capacity suits environments with multiple entry points, parking areas, or interior spaces that need simultaneous monitoring.
Common applications include loss prevention in retail settings, perimeter security for office buildings, and activity monitoring in warehouses. The night vision capability makes it effective for 24/7 operations, while the wired design ensures consistent performance in areas with Wi-Fi interference. The compact DVR dimensions allow for discreet installation in server racks or under desks.
Retail & Commercial Security
Monitor sales floors, stock rooms, and entrances to deter theft and ensure employee safety.
- 1080p clarity for identifying details
- Remote access for manager oversight
- Continuous recording with 2 TB storage
Office & Facility Monitoring
Cover lobbies, corridors, and parking lots to enhance security and document incidents.
- Eight cameras for wide coverage
- Night vision for low-light areas
- Ethernet for network integration
Physical Profile
The DVR unit measures 11.70 inches wide, 8.25 inches deep, and 2 inches high, with a lightweight design at approximately 272.2 grams. This compact form factor facilitates installation in standard equipment racks or confined spaces. The included bullet cameras feature durable housings suitable for both indoor and outdoor use, with mounting hardware provided for easy placement on walls or ceilings.
- Width
- 11.70" (297.18 mm)
- Depth
- 8.25" (209.55 mm)
- Height
- 2" (50.80 mm)
- Weight
- 272.2 g
What's in the Box
The kit includes all necessary components for immediate deployment:
Highlights
- 8-channel HD-TVI DVR with pre-installed 2 TB hard drive
- Includes eight 1080p IR bullet cameras for complete coverage
- Maximum recording resolution of 1920 x 1080 at 240 fps
- Night vision with 28 IR LEDs for low-light monitoring
- Remote management via Ethernet for access from mobile devices
- HDMI and VGA outputs for local display connectivity
- H.264 video compression for efficient storage usage
- 5-year limited warranty for long-term reliability
- TAA compliant for government and institutional use
- Wired connectivity ensures stable performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | ZIPT88B2 |
| Brand Name | Speco |
| Product Model | ZIPT88B2 |
| Product Name | 8 Channel HD-TVI Digital Video Recorder and HD-TVI Camera Kit |
| Product Type | Video Surveillance System |
| Technical Information | |
| Total Number of Channels | 8 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Digital Video Recorder,Camera |
| Storage | |
| Hard Drive Capacity | 2 TB |
| Video | |
| Video Formats | H.264 |
| Video Signal Format | PAL,NTSC |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 240 fps |
| Camera | |
| Maximum Camera Resolution | 1080 |
| Night Vision | Yes |
| Number of IR LEDs | 28 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 11.70" (297.18 mm) |
| Depth | 8.25" (209.55 mm) |
| Weight (Approximate) | 272.2 g |
| Miscellaneous | |
| Package Contents | 8-Channel Digital Video Recorder 8 x HD-TVI 1080p IR Bullet Cameras IR Remote Control Mouse |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras does this surveillance kit include?
The Speco ZIPT88B2 kit includes eight HD-TVI 1080p IR bullet cameras. These cameras are pre-configured to work with the included 8-channel DVR, providing a complete out-of-the-box solution for monitoring multiple areas simultaneously without additional camera purchases.
What is the storage capacity of the DVR, and is the hard drive pre-installed?
The DVR comes with a 2 TB hard drive pre-installed. This capacity allows for extended recording periods, depending on video quality settings and the number of active cameras. The system uses H.264 compression to optimize storage efficiency while maintaining 1080p video quality.
Does this system support remote viewing and management?
Yes, the DVR supports remote management via its Ethernet port. You can access live feeds, playback recorded video, and adjust settings from a computer, tablet, or smartphone over a network. This feature enables off-site monitoring and convenient management without needing to be physically present at the DVR location.
What video resolution and frame rate does this kit support?
The system supports a maximum resolution of 1920 x 1080 (1080p) and a maximum frame rate of 240 frames per second. This high frame rate ensures smooth video playback across all eight channels, reducing motion blur and providing clear details for security review.
Is night vision included, and how does it work?
Yes, the included cameras feature night vision with 28 IR LEDs each. These LEDs emit infrared light that is invisible to the human eye but allows the cameras to capture clear video in low-light or complete darkness. This capability ensures 24/7 monitoring effectiveness for both indoor and outdoor applications.
What warranty coverage does this product have?
The Speco ZIPT88B2 comes with a 5-year limited warranty. This warranty covers defects in materials and workmanship, providing long-term reliability assurance for business and institutional deployments. The product is also TAA compliant, making it suitable for government and educational procurement.
