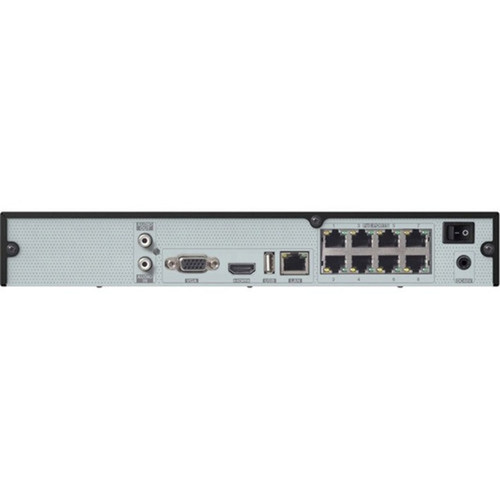

Speco N8NRL8TB 8-Channel NVR with 8 Built-In PoE Ports - 8 TB HDD - 8MP Recording - HDMI & VGA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR provides eight independent channels for connecting IP cameras, with each channel supporting video streams up to 8MP resolution at 30 frames per second. The built-in 8 TB hard drive offers substantial local storage capacity for extended recording periods without requiring immediate expansion.
Connectivity includes eight PoE ports that deliver both data and power to compatible cameras, eliminating the need for separate power injectors or adapters. Network management features enable remote access and configuration, while local monitoring is supported through both HDMI and VGA video outputs.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The integrated PoE architecture simplifies camera deployment by providing both network connectivity and power through standard Ethernet cables. This reduces installation time, minimizes cable clutter, and lowers overall system cost by eliminating separate power supplies for each camera.
Consolidated Storage Solution
With 8 TB of pre-installed storage, this NVR offers immediate recording capacity without requiring additional hard drive purchases or installation. The substantial storage supports extended retention periods for surveillance footage.
- 8 TB pre-installed capacity
- Ready for immediate deployment
- Reduces additional hardware costs
Dual Display Outputs
Both HDMI and VGA outputs provide flexible monitoring options, allowing connection to modern displays via HDMI or legacy monitors through VGA. This ensures compatibility with existing display infrastructure.
- HDMI for modern displays
- VGA for legacy monitors
- Simultaneous output support
Deployment / Use Cases
This 8-channel NVR is optimized for small business environments where comprehensive surveillance coverage is needed without enterprise-scale complexity. The eight PoE ports directly support a complete camera system, making it ideal for retail stores, office buildings, warehouses, and educational facilities.
The compact form factor allows installation in network closets, under counters, or in equipment racks where space is limited. Remote management capabilities enable security personnel to monitor multiple locations from a central station or mobile device, providing operational flexibility for distributed operations.
Retail Security Monitoring
Deploy across retail environments to monitor entrances, sales floors, and storage areas with eight high-resolution cameras. The 8 TB storage capacity ensures sufficient recording for shift-based review and incident investigation.
Office Building Surveillance
Implement in corporate offices to secure lobbies, hallways, and sensitive areas. The PoE ports simplify camera placement throughout the facility while maintaining clean cable management behind walls and ceilings.
Physical Profile
The NVR features a compact chassis measuring 11.80 inches wide, 9.80 inches deep, and just 2 inches tall. This low-profile design facilitates placement in constrained spaces while providing adequate ventilation for continuous operation. The unit's dimensions make it compatible with standard rack mounting kits for organized equipment installation in server rooms or network cabinets.
- Width
- 11.80" (299.72 mm)
- Depth
- 9.80" (248.92 mm)
- Height
- 2" (50.80 mm)
Highlights
- 8-channel network video recorder with 8 built-in PoE ports
- 8 TB pre-installed hard drive for substantial recording capacity
- Supports cameras up to 8MP resolution at 30 frames per second
- Records in efficient H.265 and H.264 video formats
- HDMI and VGA outputs for flexible display connectivity
- Remote management capabilities for off-site monitoring
- USB port for easy data transfer and peripheral connectivity
- Compact 2-inch tall chassis for space-constrained installations
- 5-year limited warranty for long-term reliability assurance
- Audio input and output ports for integrated sound recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | N8NRL8TB |
| Brand Name | Speco |
| Product Series | NRL |
| Product Model | N8NRL |
| Product Name | 8 Channel NVR with 8 Built-In PoE Ports |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 8 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 8 TB |
| Video | |
| Video Formats | AVI,H.265,H.264 |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 2" (50.80 mm) |
| Width | 11.80" (299.72 mm) |
| Depth | 9.80" (248.92 mm) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can I connect to this NVR?
The Speco N8NRL8TB supports up to eight IP cameras simultaneously through its eight built-in PoE ports. Each channel can accommodate a camera streaming at up to 8MP resolution, allowing comprehensive coverage for small-to-medium surveillance deployments without requiring additional network switches for camera connectivity.
What is the maximum recording resolution supported?
This NVR supports cameras with resolutions up to 8MP (megapixels), providing high-definition video quality for clear identification of subjects and details. The recorder maintains 30 frames per second at this resolution, ensuring smooth video playback without motion blur during security review and incident investigation.
Does the NVR come with storage pre-installed?
Yes, the N8NRL8TB includes an 8 TB hard drive pre-installed and ready for immediate use. This substantial storage capacity allows extended recording periods without requiring additional hard drive purchases or installation, reducing deployment time and simplifying the initial setup process for surveillance systems.
What video output options are available for local monitoring?
The NVR provides both HDMI and VGA video outputs, offering flexibility for connecting to modern displays via HDMI or legacy monitors through VGA. This dual-output capability ensures compatibility with various display equipment commonly found in security monitoring stations, control rooms, and office environments.
Can I manage this NVR remotely?
Yes, the NVR includes remote management capabilities that allow authorized users to access the system from off-site locations. Through network connectivity, security personnel can view live feeds, review recorded footage, adjust camera settings, and manage system configurations from computers or mobile devices without being physically present at the recorder location.
What is the warranty period for this NVR?
Speco provides a 5-year limited warranty for the N8NRL8TB network video recorder. This extended warranty period reflects the product's durability and reliability for continuous surveillance operations, offering peace of mind for business investments in security infrastructure over the long term.
