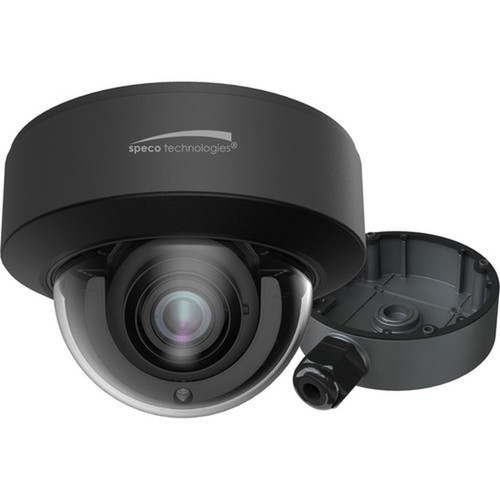

Speco O4ID1M Intensifier IP 4MP Dome Network Camera - Dark Gray - 2560 x 1440 - H. 265+/H. 264+ - Varifocal Lens - Weather/Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that delivers 4-megapixel resolution with support for color imaging in various lighting conditions. The varifocal lens offers a focal length range from 2.8mm to 12mm, providing optical zoom capability and adjustable field of view from 110° to 48° horizontally.
Video processing includes multiple compression formats with H.265+ and H.264+ offering enhanced efficiency for network transmission and storage. The camera maintains 30 fps performance at maximum resolution, ensuring smooth video capture for surveillance applications. Connectivity is provided through wired Ethernet with Power over Ethernet (PoE) support alongside traditional 12V DC power input.
Imaging Performance
The camera features advanced imaging capabilities including Wide Dynamic Range, 3D Digital Noise Reduction, and multiple detection algorithms for face, human, and vehicle recognition.
- Day/Night operation
- Auto Gain Control
- Automatic White Balance
- Back Light Compensation
- Highlight Compensation
Key Product Advantages
The O4ID1M delivers several distinct advantages for surveillance deployments, beginning with its rugged construction that meets both IK10 impact resistance and IP67 weatherproof ratings. This dual protection ensures reliable operation in challenging environments where vandalism or extreme weather conditions may be concerns.
Advanced Detection Features
Intelligent analytics capabilities enhance monitoring effectiveness with multiple detection types that can trigger alerts or recording events.
- Cross Line Detection
- Face Detection
- Human Detection
- Vehicle Detection
Flexible Installation Options
The dome form factor and comprehensive mounting hardware support discreet installation in various environments while maintaining professional monitoring capabilities.
- Dome housing design
- Junction box included
- Multiple power options
- Remote management support
Deployment / Use Cases
This camera is particularly well-suited for commercial and institutional surveillance applications where both image quality and physical durability are priorities. The combination of 4MP resolution, advanced compression, and rugged construction makes it effective for perimeter security, parking lot monitoring, and building entrance surveillance.
Educational facilities, retail environments, and industrial sites benefit from the camera's vandal-resistant design and weatherproof rating, ensuring continuous operation in both indoor and outdoor installations. The varifocal lens allows installers to optimize the field of view for specific monitoring needs, from broad area coverage to focused observation of entry points or valuable assets.
Outdoor Perimeter Security
The IP67 rating and extended temperature range support reliable operation in exterior installations where cameras are exposed to weather elements and temperature extremes.
- Weather resistant housing
- -40°F to 140°F operation
- 95% maximum humidity tolerance
High-Traffic Area Monitoring
30 fps recording at 4MP resolution provides clear video evidence for identification purposes in locations with significant pedestrian or vehicle movement.
- Smooth motion capture
- Color imaging support
- Multiple detection algorithms
Physical Profile
The camera features a dark gray dome housing measuring 5.55" in diameter and 3.94" in height, with a weight of approximately 2.05 pounds. This compact form factor supports discreet installation while the included junction box facilitates secure mounting to various surfaces. The dome design helps conceal the camera's viewing direction while providing environmental protection.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.94" (100.08 mm), 2.05 lb (929.86 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.94" (100.08 mm)
- Weight
- 2.05 lb (929.86 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all necessary components for installation and operation of the surveillance camera system.
Highlights
- 4-megapixel resolution delivers 2560x1440 video for detailed surveillance footage
- H.265+ and H.264+ compression formats optimize bandwidth and storage efficiency
- Varifocal lens with 4.3x optical zoom provides flexible field of view adjustment
- IK10 impact resistance and IP67 weatherproof rating ensure durability in challenging environments
- Power over Ethernet (PoE) support simplifies installation with single-cable connectivity
- Advanced detection features include face, human, and vehicle recognition capabilities
- Wide operating temperature range from -40°F to 140°F supports extreme climate deployment
- Remote management capability enables centralized monitoring and configuration
- 30 frames per second recording ensures smooth motion capture at maximum resolution
- Five-year limited warranty provides long-term product support and reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | O4ID1M |
| Brand Name | Speco |
| Product Line | Intensifier IP |
| Product Model | O4ID1M |
| Product Name | 4MP Intensifier IP Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H.FoV: 110° ~ 48°; V.FoV:57°~ 27°; D.FoV:130° ~ 56° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Maximum Aperture | f/1.3 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Form Factor | Dome |
| Durability | Weather Resistant,Vandal Resistant |
| Height | 3.94" (100.08 mm) |
| Diameter | 5.55" (140.97 mm) |
| Weight (Approximate) | 2.05 lb (929.86 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Cross Line Detection,Face Detection,Human Detection,Vehicle Detection,Day/Night,Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction |
| Package Contents | 4MP Intensifier IP Dome Camera Junction Box |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this Speco camera support?
The Speco O4ID1M supports 4-megapixel resolution with a maximum video resolution of 2560 x 1440 pixels. This provides detailed imaging suitable for identification purposes in surveillance applications, with the camera maintaining 30 frames per second performance at this resolution for smooth motion capture.
What video compression formats are supported?
This camera supports multiple video compression formats including H.265+, H.265, H.264+, H.264, and MJPEG. The H.265+ and H.264+ formats offer enhanced compression efficiency compared to standard versions, reducing bandwidth requirements and storage needs while maintaining video quality for network transmission.
Is this camera suitable for outdoor installation?
Yes, the camera features an IP67 weatherproof rating and IK10 impact resistance, making it suitable for outdoor installation. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and withstands humidity up to 95%, ensuring reliable performance in various weather conditions and environments.
What type of lens does this camera have?
The camera includes a varifocal lens with a focal length range from 2.8mm to 12mm, providing 4.3x optical zoom capability. This allows adjustment of the field of view from 110° to 48° horizontally, giving installers flexibility to optimize coverage for specific monitoring requirements during setup.
How is this camera powered?
The camera supports both Power over Ethernet (PoE) and traditional 12V DC power input. PoE allows power and data transmission over a single Ethernet cable, simplifying installation. The dual power options provide flexibility for different deployment scenarios and infrastructure availability.
What intelligent features does this camera include?
The camera includes multiple intelligent detection features such as Cross Line Detection, Face Detection, Human Detection, and Vehicle Detection. These analytics capabilities can trigger alerts or recording events based on specific criteria, enhancing monitoring effectiveness and reducing review time for surveillance footage.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
