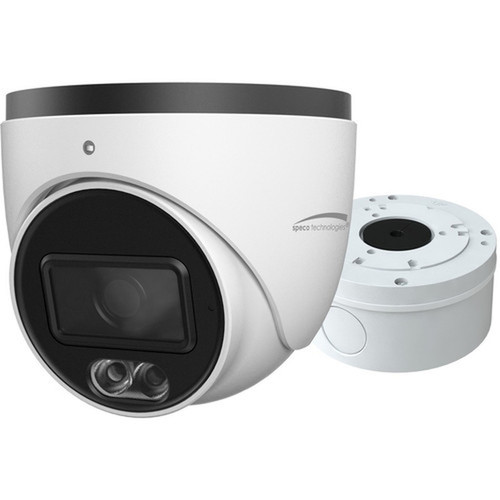

Speco O5LT1 Intensifier 5MP Network Camera - Color Turret - White - 98 ft Color Night Vision - H. 265/H. 264 - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures video at 5-megapixel resolution, translating to 2592 horizontal by 1944 vertical pixels. The fixed 2.8 mm lens provides a wide 107.3° diagonal field of view, covering substantial area with minimal distortion. Video compression utilizes modern H.265 and H.264 codecs alongside MJPEG, balancing bandwidth efficiency with image quality for network transmission and storage optimization.
Low-light performance is enhanced through color night vision technology that maintains color information at distances up to 98 feet (29.87 meters). The camera's exposure system adjusts across a broad shutter speed range from 1/100,000 second to 1 full second, accommodating everything from bright daylight to challenging nighttime conditions. Advanced imaging features include wide dynamic range, back light compensation, and highlight compensation to handle high-contrast scenes effectively.
Key Product Advantages
The O5LT1 delivers practical advantages through its combination of high-resolution imaging, extended color night vision, and versatile mounting options. Its IP67 rating ensures protection against dust ingress and temporary immersion, making it suitable for both indoor and outdoor installations in challenging environments. The camera maintains operation across extreme temperature ranges from -40°F to 140°F (-40°C to 60°C) with up to 95% humidity tolerance.
Intelligent Detection Capabilities
Beyond basic motion detection, this camera incorporates face detection, human detection, and cross line detection algorithms. These smart features reduce false alarms by distinguishing between relevant security events and incidental movement, providing more actionable alerts for security personnel.
- Face Detection
- Human Detection
- Cross Line Detection
- Motion Detection
Dual Storage & Audio Support
Local storage via SD card provides backup recording and quick access to footage without network dependency. The built-in microphone enables audio monitoring alongside video surveillance, creating a more comprehensive security record of monitored areas.
- SD Card Local Storage
- Built-in Microphone
- Remote Management Compatible
Deployment / Use Cases
This camera serves effectively in mixed lighting environments where its day/night functionality, wide dynamic range, and advanced compensation features maintain image quality. The combination of H.265 and H.264 compression supports integration with various network video recorders and video management systems, making it compatible with both new and existing surveillance infrastructure.
For remote locations or temporary installations, the SD card storage provides recording redundancy independent of network connectivity. The camera's modest power requirements (12V DC) simplify integration with existing power systems or solar-powered security setups in areas without conventional electrical infrastructure.
Commercial Perimeter Security
Deploy along building exteriors, parking lots, and loading docks where the 98-foot color night vision range and wide field of view provide comprehensive coverage after hours. The multiple mounting options accommodate various architectural features while the IP67 rating withstands weather exposure.
- Building Exteriors
- Parking Facilities
- Loading Areas
- 24/7 Monitoring
Retail & Business Interior Monitoring
Install in retail spaces, offices, and warehouses where the 5MP resolution captures fine details like facial features and product labels. The discreet white turret design blends with ceilings while intelligent detection focuses on human activity rather than general motion.
- Retail Surveillance
- Office Security
- Inventory Monitoring
- Customer Traffic Analysis
Physical Profile
The turret form factor measures 3.26 inches in height with a 3.72-inch diameter, presenting a compact profile that minimizes visual intrusion. Weighing approximately 1 pound (453.59 grams), the camera installs securely on various surfaces without requiring heavy-duty mounting hardware. The white finish maintains a neutral appearance that complements most architectural styles while resisting UV degradation in outdoor applications.
Five distinct mounting options—ceiling, corner, pole, wall, and junction box—provide installation flexibility for different surveillance scenarios. The included junction box further simplifies mounting while protecting cable connections from environmental exposure. Despite its robust construction, the camera maintains a streamlined appearance suitable for both conspicuous and discreet security applications.
- Height
- 3.26" (82.80 mm)
- Weight
- 1 lb (453.59 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all essential components for immediate deployment. Each unit arrives ready for installation with necessary mounting hardware.
Highlights
- 5-megapixel resolution delivers 2592 x 1944 video at 30 fps
- Color night vision extends to 98 feet (29.87 meters)
- H.265 and H.264 compression for bandwidth-efficient streaming
- Wide 107.3° diagonal field of view with fixed 2.8 mm lens
- IP67 rating for dust and water resistance in outdoor use
- Multiple mounting options: ceiling, corner, pole, wall, junction box
- Intelligent detection: face, human, cross line, and motion
- Local storage via SD card with built-in microphone for audio
- Operates from -40°F to 140°F (-40°C to 60°C) with 95% humidity tolerance
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | O5LT1 |
| Brand Name | Speco |
| Product Line | Intensifier |
| Product Model | O5LT1 |
| Product Name | Intensifier O5LT1 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98 ft (29.87 m) |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 94.8° (H), 78.4° (V), 107.3° (D) |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.264 HP,H.264 (MP),H.264 BP,H.265 (HP),H.265 (MP),H.265 (BP) |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Ceiling Mount,Corner Mount,Pole Mount,Wall Mount,Junction Box Mount |
| Form Factor | Turret |
| Height | 3.26" (82.80 mm) |
| Diameter | 3.72" (94.49 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,SD Card Local Storage,Face Detection,Human Detection,Cross Line Detection,Built-in Microphone,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),Motion Detection |
| Package Contents | Intensifier O5LT1 Network Camera Junction Box |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this Speco camera record at?
The Speco Intensifier O5LT1 records at 5-megapixel resolution, specifically 2592 pixels horizontally by 1944 pixels vertically. This high resolution provides detailed imagery that supports identification of individuals, license plates, and other important details within the camera's field of view. The camera maintains this resolution at a full 30 frames per second for smooth, real-time video playback.
How far does the night vision reach on this model?
This camera features color night vision with an effective range of 98 feet (29.87 meters). Unlike traditional infrared night vision that produces monochrome images, this technology maintains color information in low-light conditions, providing more detailed surveillance footage during nighttime hours. The camera automatically transitions between day and night modes based on ambient light conditions.
What video compression formats are supported?
The O5LT1 supports H.265, H.264, and MJPEG compression formats. H.265 offers approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining image quality. The camera also supports various profile versions including HP, MP, and BP for compatibility with different network video recorders and video management systems.
Is this camera suitable for outdoor installation?
Yes, this camera carries an IP67 ingress protection rating, meaning it's dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. It operates across a wide temperature range from -40°F to 140°F (-40°C to 60°C) and tolerates up to 95% humidity. These specifications make it suitable for both indoor and outdoor installations in various climate conditions.
What mounting options are available for this turret camera?
This camera supports five mounting configurations: ceiling mount, corner mount, pole mount, wall mount, and junction box mount. The included junction box simplifies installation while protecting cable connections. This versatility allows installation in diverse locations including building exteriors, parking structures, retail spaces, and industrial facilities with different architectural constraints.
Does this camera include local storage capability?
Yes, the O5LT1 features SD card local storage support, providing backup recording independent of network connectivity. This capability ensures continuous recording even during network outages and allows quick access to footage without accessing network video recorder systems. The camera also includes a built-in microphone for audio recording alongside video surveillance.
