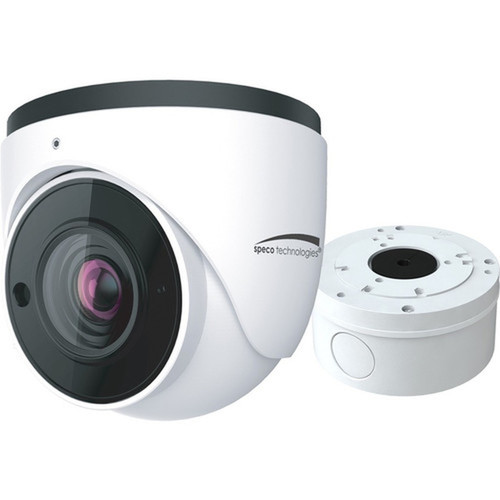

Speco O2VT1V 2MP Outdoor Turret Network Camera - White - 164 ft IR Night Vision - H. 265 - Varifocal Lens - IP67 - 5-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that balances power efficiency with high-definition video quality. It supports H.265, H.264, and MJPEG video compression formats, with H.265 significantly reducing bandwidth and storage requirements while maintaining video clarity. The 88° to 34.8° horizontal field of view adapts to both wide-area coverage and focused monitoring needs.
Exposure control ranges from 1/100,000 second to 1/25 second, handling challenging lighting conditions from bright sunlight to low-light environments. The camera features 3D digital noise reduction, back light compensation, and highlight compensation to optimize image quality across varying light levels.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The O2VT1V combines surveillance reliability with practical features that reduce installation complexity and long-term maintenance. Its integrated analytics junction box streamlines setup while providing local storage via SD card support for backup recording independent of network video recorders.
Comprehensive Mounting Flexibility
Supports junction box, corner, pole, ceiling, and wall mounting configurations, adapting to virtually any installation scenario without requiring additional brackets or adapters.
- Five mounting types included
- No extra hardware needed
- Simplifies installation planning
Advanced Video Analytics
Built-in microphone enables audio monitoring alongside video, while cross line detection and privacy masking provide intelligent surveillance capabilities without external processing.
- Audio and video synchronization
- Virtual tripwire functionality
- Selective area masking
Deployment / Use Cases
This camera excels in perimeter security applications where weather resistance and night vision capabilities are critical. Its IP67 rating makes it suitable for exposed outdoor locations subject to rain, dust, and temperature extremes, from parking lot monitoring to building exterior surveillance.
The varifocal lens and multiple mounting options allow deployment in challenging architectural environments where fixed-lens cameras would require compromise. Retail storefronts, warehouse exteriors, school campuses, and residential property boundaries benefit from its adjustable field of view and discreet turret design that discourages tampering.
Business Perimeter Security
Monitor loading docks, parking areas, and building entries with consistent day/night coverage and motion-triggered recording to storage cards or network video recorders.
Institutional Campus Monitoring
Deploy across educational or healthcare campuses where weather durability and flexible mounting address varied architectural requirements while maintaining surveillance continuity.
Physical Profile
The turret design measures 4.38" in diameter with a compact 3.92" height and 4.13" width, presenting a low-profile appearance that blends with architectural elements. The white finish maintains aesthetic consistency while reflecting sunlight to reduce heat absorption. Despite its rugged construction, the camera remains relatively lightweight at 1.47 pounds, simplifying installation on various surfaces without requiring heavy-duty support structures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.92" (99.57 mm), 4.13" (105 mm), 1.47 lb (666.78 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.13" (105 mm)
- Height
- 3.92" (99.57 mm)
- Weight
- 1.47 lb (666.78 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all necessary components for immediate deployment with the integrated analytics junction box.
Highlights
- 2-megapixel resolution delivers Full HD 1080p video at 30 fps
- 164-foot infrared night vision ensures 24/7 surveillance capability
- H.265 compression reduces bandwidth and storage requirements by up to 50% compared to H.264
- IP67 weather-resistant rating protects against dust and water immersion
- Varifocal lens (2.8-12mm) provides flexible field of view adjustment
- Five mounting options: junction box, corner, pole, ceiling, and wall
- SD card slot enables local storage independent of network recorders
- Built-in microphone supports audio monitoring alongside video
- Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
- 5-year limited warranty provides long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | O2VT1V |
| Brand Name | Speco |
| Product Model | O2VT1V |
| Product Name | 2MP H.265 IP Turret Camera with Analytics |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 164 ft (49.99 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 88° ~ 34.8° (H) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Corner Mount,Pole Mount,Ceiling Mount,Wall Mount |
| Form Factor | Turret |
| Durability | Weather Resistant |
| Height | 3.92" (99.57 mm) |
| Width | 4.13" (105 mm) |
| Diameter | 4.38" (111.25 mm) |
| Weight (Approximate) | 1.47 lb (666.78 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,SD Card Local Storage,Motion Detection,Ingress Protection,Built-in Microphone,Cross Line Detection,Privacy Masking,Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Package Contents | 2MP H.265 IP Turret Camera with Analytics Junction Box |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the effective surveillance range of this camera's night vision?
The Speco O2VT1V provides infrared night vision with an effective range of 164 feet (49.99 meters). This distance allows reliable monitoring of medium to large outdoor areas during complete darkness, making it suitable for perimeter security, parking lots, and building exteriors where illumination may be limited or inconsistent.
Does this camera support local storage without a network video recorder?
Yes, the camera includes an SD card slot for local storage, enabling recording directly to memory cards without requiring a separate network video recorder. This provides backup recording capability and allows deployment in locations where NVR connectivity might be temporarily unavailable or as a supplemental storage solution alongside network recording.
What video compression formats does the O2VT1V support?
This camera supports H.265, H.264, and MJPEG compression formats. H.265 offers approximately 50% bandwidth reduction compared to H.264 while maintaining similar video quality, making it ideal for bandwidth-constrained networks. The multiple format options provide flexibility for integration with various surveillance systems and recording platforms.
How weather-resistant is this outdoor camera?
The camera carries an IP67 ingress protection rating, meaning it's completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes. This level of protection ensures reliable operation in harsh outdoor environments including heavy rain, snow, dust storms, and extreme temperature fluctuations from -40°F to 140°F.
What mounting options are available for installation?
The O2VT1V supports five mounting configurations: junction box mount, corner mount, pole mount, ceiling mount, and wall mount. This flexibility allows installation in virtually any outdoor or indoor location without requiring additional brackets or adapters, simplifying deployment across diverse architectural environments and surveillance scenarios.
What is the warranty coverage for this network camera?
Speco provides a 5-year limited warranty for the O2VT1V network camera. This extended coverage period reflects the product's durability and reliability for continuous surveillance applications. The warranty covers manufacturing defects and ensures long-term support for professional security deployments where camera uptime is critical.
