Speco AIPK1 Single Door 2-Wire Video Intercom Kit - 7" Touchscreen - CMOS Sensor - Full-Duplex - IP54 Weather Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video intercom kit integrates several key technical specifications that ensure practical performance in security monitoring scenarios. The camera employs a CMOS image sensor with a 90-degree horizontal viewing angle, providing adequate coverage for typical doorways. Full-duplex communication allows simultaneous two-way audio, enabling natural conversations between indoor and outdoor stations without audio cut-off.
Power flexibility is offered through support for 24 V DC or 32 V DC input voltages, accommodating various power supply configurations. The 2-wire design simplifies connectivity between the indoor monitor and outdoor station, reducing wiring requirements compared to multi-wire systems.
This section brings together practical product details such as Communication Mode, Ingress Protection (IP) Rating, Impact Protection (IK) Rating, Screen Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AIPK1 kit combines installation efficiency with durable construction for dependable door entry security. Its 2-wire configuration minimizes cabling complexity, while the IP54 and IK07 ratings ensure protection against dust, water ingress, and mechanical impacts in outdoor environments.
Simplified Installation
The 2-wire connection between indoor and outdoor components reduces wiring labor and complexity compared to traditional multi-wire intercom systems.
- Reduced cable runs
- Easier termination
- Lower installation cost potential
Environmental Durability
Aluminum construction with IP54 rating provides protection against dust and water spray, while the weather-resistant design maintains performance in various outdoor conditions.
- IP54 certified
- Aluminum housing
- Suitable for exterior use
Deployment / Use Cases
This video intercom kit is designed for single-door access control applications where visual verification and audio communication enhance security. The system is particularly effective for residential entry doors, apartment building lobby doors, or small office exterior doors where monitoring visitor access is required.

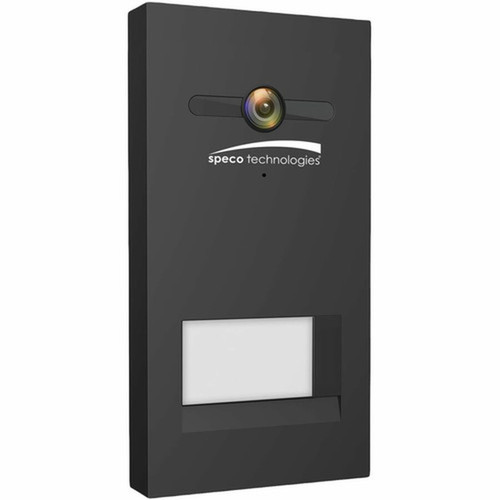

The indoor monitor's touchscreen interface allows users to quickly view and communicate with visitors without physical proximity to the door. The outdoor station's durable construction and low-light imaging capability ensure reliable operation throughout day and night cycles.
Residential Entry Security
Provides visual verification of visitors at home entry points, enhancing security while enabling convenient communication from inside the residence.
Light Commercial Access
Suitable for small office buildings, retail back entrances, or other commercial locations requiring controlled access with visitor identification.

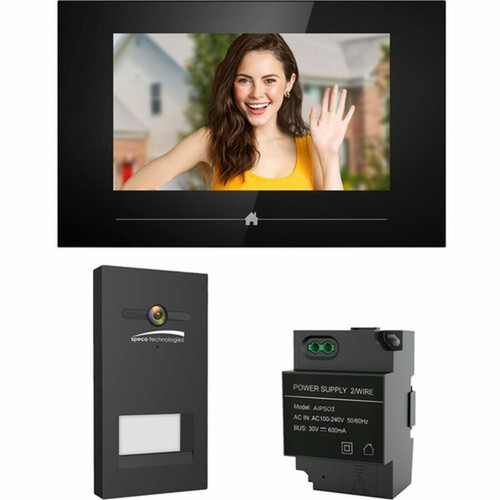

What's in the Box
The kit includes all necessary components for a complete single-door video intercom installation.
Package contents include Indoor Monitor Outdoor Station Power Supply, Indoor Monitor. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Complete single-door video intercom kit with 2-wire installation
- 7-inch touchscreen monitor with 800 x 400 resolution
- CMOS camera sensor with 0.1 lux low-light capability
- 90-degree horizontal viewing angle for doorway coverage
- Full-duplex audio communication for natural conversation
- IP54 and IK07 ratings for environmental and impact protection
- Aluminum construction with weather-resistant design
- 24 V DC or 32 V DC power input flexibility
- Suitable for door entry applications in indoor and outdoor environments
- RoHS compliant for reduced hazardous substances
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | AIPK1 |
| Brand Name | Speco |
| Product Name | Single Door 2-Wire Video Intercom Kit |
| Product Type | Video Door Phone |
| Technical Information | |
| Communication Mode | Full-duplex |
| Ingress Protection (IP) Rating | IP54 |
| Impact Protection (IK) Rating | IK07 |
| Display & Graphics | |
| Screen Resolution | 800 x 400 |
| Touchscreen | Yes |
| Camera | |
| Image Sensor Type | CMOS |
| Minimum Illumination | 0.1 lux |
| Horizontal Viewing Angle | 90° |
| Power Description | |
| Input Voltage | 24 V DC,32 V DC |
| Physical Characteristics | |
| Product Material | Aluminum |
| Durability | Weather Resistant |
| Miscellaneous | |

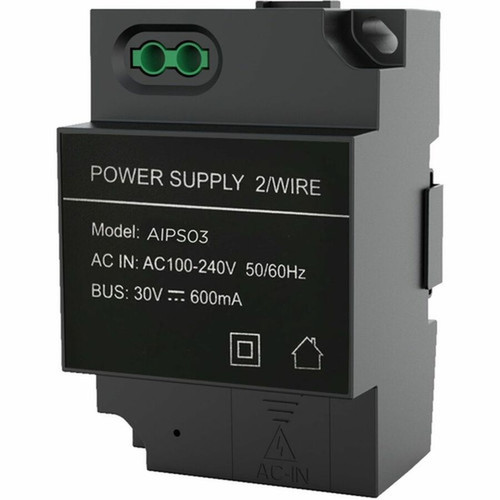

| Package Contents | Indoor Monitor Outdoor Station Power Supply |
| Application/Usage | Door Entry,Indoor,Outdoor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
User Manual
FAQ
What components are included in the Speco AIPK1 video intercom kit?
The kit includes an indoor touchscreen monitor, an outdoor station, and a power supply. This complete package provides all essential components needed for a single-door video intercom installation without requiring separate purchases of individual elements.
How does the 2-wire installation simplify setup compared to traditional intercom systems?
The 2-wire design reduces cabling complexity by using only two wires to connect the indoor monitor and outdoor station. This minimizes the number of cable runs required during installation, potentially lowering labor costs and simplifying termination compared to systems requiring separate wires for video, audio, and power.
What environmental protection does the IP54 rating provide for the outdoor station?
The IP54 rating indicates protection against dust ingress that could interfere with operation and protection against water spray from any direction. This makes the outdoor station suitable for exterior installations where it may be exposed to rain, sprinklers, or other moisture sources without compromising functionality.
How does the full-duplex communication mode enhance visitor interaction?
Full-duplex communication allows simultaneous two-way audio transmission, meaning both parties can speak and hear each other at the same time without audio cut-off. This creates more natural conversations between indoor users and outdoor visitors compared to half-duplex systems that require alternating talk/listen modes.
What low-light performance can I expect from the CMOS camera sensor?
The CMOS sensor provides a minimum illumination specification of 0.1 lux, enabling the camera to capture usable images in very low-light conditions. This ensures the system maintains visual identification capability during nighttime or poorly lit conditions typical of many exterior door environments.
What power requirements does this video intercom system have?
The system accepts input voltages of either 24 V DC or 32 V DC, providing flexibility for different power supply configurations. This dual-voltage support allows installation with various compatible power adapters or integrated power systems commonly available in security installations.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
