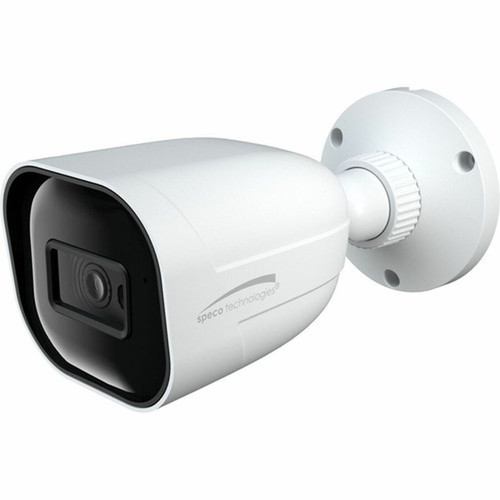

Speco VLB9 2MP Full HD Bullet Surveillance Camera - White - 65. 6 ft IR Night Vision - 1920 x 1080 - HD-TVI/CVI/AHD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VLB9 camera delivers 2-megapixel resolution through its CMOS sensor, producing 1920x1080 Full HD video. This resolution supports detailed identification at distances, making it effective for license plate recognition, facial identification, and general monitoring. The camera records at 30 frames per second, ensuring smooth motion capture without blurring or skipping during fast-moving events.
Video signal compatibility includes PAL and NTSC formats, with analog support for HD-TVI, CVI, and AHD protocols. This multi-format capability allows the camera to work with a wide range of DVRs and recorders, providing installation flexibility. Exposure control ranges from 1/100000 second to 1/50 second, enabling the camera to adapt quickly to changing light conditions while minimizing motion blur.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Speco VLB9 combines high-resolution imaging with robust environmental protection for dependable outdoor surveillance. Its 65.6-foot infrared night vision extends monitoring capability into complete darkness, while Smart IR technology prevents overexposure of close objects. The camera's IP67 rating guarantees protection against dust ingress and water immersion up to one meter, ensuring year-round operation in rain, snow, and extreme temperatures.
Advanced Imaging Features
Multiple processing technologies enhance video quality across diverse lighting conditions.
- Digital Wide Dynamic Range (D-WDR) balances bright and dark areas
- 3D Digital Noise Reduction minimizes grain in low-light footage
- Auto Gain Control maintains consistent brightness
- Back Light Compensation prevents silhouette effects
Reliable Outdoor Performance
Engineered for continuous operation in challenging environmental conditions.
- IP67 weather-resistant construction
- Operating range: -22°F to 122°F (-30°C to 50°C)
- 95% maximum operating humidity tolerance
- Durable white polycarbonate housing
Deployment / Use Cases
The VLB9 bullet camera is designed for perimeter security and outdoor monitoring applications where weather resistance and clear night vision are essential. Its junction box mounting system simplifies installation on walls, eaves, and poles, while the compact dimensions (2.93" x 2.93" x 6.59") allow for discreet placement. The white color blends with light-colored building exteriors for a less obtrusive security presence.
Typical deployments include retail storefronts, parking lots, warehouse perimeters, residential driveways, and commercial building entrances. The camera's 65.6-foot night vision range makes it suitable for monitoring medium to large outdoor areas after dark, while its support for HD-TVI, CVI, and AHD formats ensures compatibility with both new installations and legacy analog system upgrades. The included junction box provides a secure, weatherproof connection point for power and video cables.
Commercial Security
Ideal for business environments requiring reliable outdoor surveillance.
- Parking lot monitoring with license plate capture
- Loading dock surveillance in all weather conditions
- Building perimeter security after business hours
Residential Applications
Provides homeowners with professional-grade outdoor monitoring.
- Driveway and garage coverage with night vision
- Property perimeter security in suburban settings
- Entry point monitoring for enhanced home security
Physical Profile
The VLB9 features a compact bullet form factor measuring 2.93" wide by 2.93" high by 6.59" long (74.42mm x 74.42mm x 167.39mm), with a weight of approximately 371.9 grams. Its white polycarbonate housing resists UV degradation and maintains appearance over years of outdoor exposure. The integrated junction box mount provides a secure mounting platform with cable management, while the M12 lens mount allows for potential future lens upgrades if needed. The camera's streamlined design minimizes wind resistance and visual impact while maintaining full environmental protection.
- Width
- 2.93" (74.42 mm)
- Height
- 2.93" (74.42 mm)
- Weight
- 371.9 g
- Length
- 2.8 mm
What's in the Box
The package includes all essential components for immediate installation and operation.

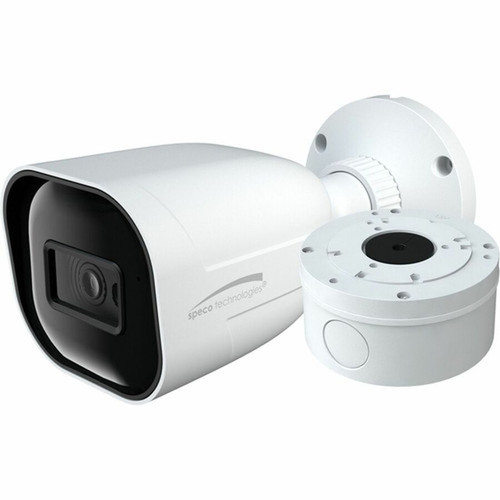

Package contents include 2MP HD-TVI IR Bullet Camera Junction Box, 2MP HD-TVI IR Bullet Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2-megapixel Full HD resolution (1920x1080) at 30 fps
- 65.6-foot infrared night vision with Smart IR technology
- Supports HD-TVI, CVI, and AHD analog video formats
- IP67 weather-resistant rating for outdoor durability
- Fixed 2.8mm M12-mount lens with wide viewing angle
- 12V DC power operation (power supply not included)
- Junction box included for secure mounting
- 5-year limited warranty for long-term reliability
- NDAA compliant for government and institutional use
- Operating temperature range: -22°F to 122°F (-30°C to 50°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | VLB9 |
| Brand Name | Speco |
| Product Model | VLB9 |
| Product Name | 2MP HD-TVI IR Bullet Camera with Junction Box |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.60 ft (19.99 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | PAL,NTSC |
| Analog Video Signal Format | HD-TVI,CVI,AHD |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/50 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount |
| Form Factor | Bullet |
| Durability | Weather Resistant |
| Height | 2.93" (74.42 mm) |
| Width | 2.93" (74.42 mm) |
| Length | 6.59" (167.39 mm) |
| Weight (Approximate) | 371.9 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Auto Gain Control,White Balance,Back Light Compensation (BLC),Mirror,Digital Noise Reduction,3D Digital Noise Reduction,Smart IR,Digital Wide Dynamic Range (D-WDR) |
| Package Contents | 2MP HD-TVI IR Bullet Camera Junction Box |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the Speco VLB9 camera record at?
The Speco VLB9 records at 2-megapixel Full HD resolution, specifically 1920 x 1080 pixels. This resolution provides detailed imagery suitable for identification purposes and delivers video at 30 frames per second for smooth motion capture. The 2-megapixel sensor captures sufficient detail for license plate recognition, facial identification, and general monitoring applications in both commercial and residential security deployments.
How far does the night vision reach on this camera?
The VLB9 features infrared night vision with a maximum range of 65.60 feet (19.99 meters). This infrared illumination allows the camera to capture clear monochrome video in complete darkness, extending monitoring capability beyond daylight hours. The Smart IR technology automatically adjusts infrared intensity based on distance to prevent overexposure of close objects while maintaining proper illumination of subjects throughout the entire 65.6-foot range.
What video formats does this camera support?
This camera supports multiple analog video formats including HD-TVI, CVI, and AHD, along with standard PAL and NTSC signal formats. This multi-format compatibility allows the VLB9 to work with a wide range of DVRs and recording systems, providing flexibility for both new installations and upgrades to existing analog surveillance infrastructure. The camera delivers Full HD resolution over coaxial cable connections when used with compatible recorders.
Is this camera suitable for outdoor installation?
Yes, the VLB9 is specifically designed for outdoor use with an IP67 ingress protection rating. This rating certifies the camera as dust-tight and protected against temporary immersion in water up to one meter deep. The weather-resistant construction, combined with an operating temperature range of -22°F to 122°F (-30°C to 50°C), ensures reliable performance in rain, snow, extreme heat, and cold conditions typical of outdoor surveillance environments.
What type of lens does the VLB9 have?
The camera features a fixed 2.8mm lens with an M12 mount. This fixed focal length provides a consistent wide viewing angle suitable for general surveillance applications where monitoring a broad area is more important than zoom capability. The M12 mount type is a standard industrial specification that allows for potential lens replacement or upgrade if different viewing angles are required for specific installation scenarios.
What power supply does this camera require?
The VLB9 operates on 12V DC power, which is standard for surveillance cameras. The camera does not include a power supply in the package, allowing installers to use existing power infrastructure or select an appropriate power supply based on installation requirements. This 12V DC operation provides compatibility with most surveillance power systems, including centralized power supplies, individual adapters, and Power over Coax solutions when used with compatible equipment.
