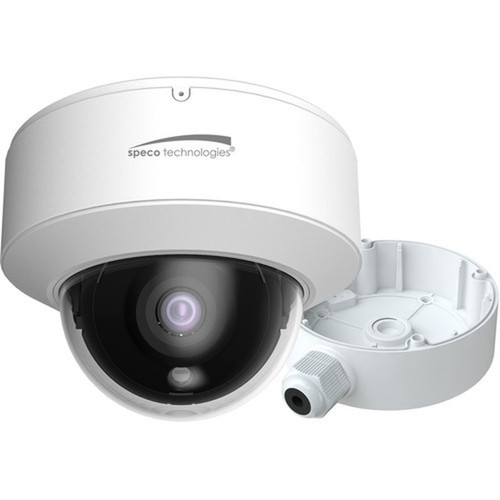

Speco VLD5 2MP HD-TVI Dome Security Camera - White - 1080p Full HD - 65. 6 ft IR Night Vision - Weather & Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that delivers 2-megapixel resolution with efficient power consumption. The fixed 2.8mm lens offers a wide viewing angle suitable for general surveillance areas, while the M12 lens mount ensures secure optical alignment.
Advanced imaging features include 3D digital noise reduction, auto gain control, automatic white balance, and back light compensation to optimize video quality across varying lighting conditions. The camera supports multiple analog video formats including HD-TVI, CVI, AHD, and CVBS for compatibility with various DVR systems.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The VLD5 combines high-definition video capture with robust physical protection for dependable security monitoring. Its dual-rated IP66 and IK10 certifications ensure protection against dust, water jets, and mechanical impacts up to 20 joules.
Extended Night Coverage
Infrared illumination reaches 65.6 feet, providing reliable surveillance in complete darkness without additional lighting.
- Built-in IR LEDs
- Day/Night auto switching
- Clear low-light imaging
Versatile Installation
Multiple mounting options including junction box, pole, ceiling, corner, and wall mounts allow flexible deployment in various surveillance scenarios.
- Five mounting types
- Compact dome design
- Easy orientation adjustment
Image Optimization
Advanced processing features maintain video quality across challenging lighting conditions for consistent surveillance footage.
- 3D noise reduction
- Back light compensation
- Auto white balance
Deployment / Use Cases
The Speco VLD5 dome camera is ideal for commercial and institutional security applications requiring durable, weatherproof surveillance. Its discreet dome design and white finish blend with most architectural environments while providing comprehensive monitoring coverage.
Common deployment scenarios include retail store entrances, school corridors, office building perimeters, warehouse loading docks, and parking lot monitoring. The camera's wide temperature tolerance makes it suitable for both indoor and outdoor installations in various climate conditions.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Entry Points
Monitor storefronts, lobbies, and reception areas with clear 1080p identification of individuals and activities.
Perimeter Security
Secure building exteriors, fences, and gates with weather-resistant construction and extended night vision capability.
Physical Profile
This compact dome camera measures 3.46 inches in height with a 4.69-inch diameter, presenting a low-profile appearance that minimizes visual intrusion. The white polycarbonate housing resists UV degradation and maintains its appearance over time. Weighing approximately 580.6 grams, the camera installs easily on various surfaces while remaining securely mounted.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.46" (87.88 mm), 580.6 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.46" (87.88 mm)
- Weight
- 580.6 g
- Length
- 2.8 mm
What's in the Box
The package includes all necessary components for immediate installation and operation.
Package contents include 2MP HD-TVI IR Dome Camera with Junction Box Junction Box, 2MP HD-TVI IR Dome Camera with Junction Box. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2-megapixel CMOS sensor delivers 1080p Full HD video at 30 fps
- Infrared night vision extends to 65.6 feet (19.99 meters)
- Weather-resistant and vandal-resistant IP66/IK10 rated housing
- Supports HD-TVI, CVI, AHD, and CVBS analog video formats
- Fixed 2.8mm lens with M12 mount for wide viewing coverage
- Multiple mounting options: junction box, pole, ceiling, corner, wall
- Advanced imaging features: 3D noise reduction, auto white balance
- Wide operating temperature range: -22°F to 122°F (-30°C to 50°C)
- 12V DC power input for standard security system compatibility
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | VLD5 |
| Brand Name | Speco |
| Product Model | VLD5 |
| Product Name | 2MP HD-TVI IR Dome Camera with Junction Box |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.60 ft (19.99 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | HD-TVI,CVI,AHD,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Pole Mount,Ceiling Mount,Corner Mount,Wall Mount |
| Form Factor | Dome |
| Durability | Weather Resistant,Vandal Resistant |
| Height | 3.46" (87.88 mm) |
| Diameter | 4.69" (119.13 mm) |
| Weight (Approximate) | 580.6 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in IR LED,Day/Night,Digital Noise Reduction,3D Digital Noise Reduction,Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC) |
| Package Contents | 2MP HD-TVI IR Dome Camera with Junction Box Junction Box |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this Speco camera capture?
The Speco VLD5 captures 2-megapixel video at 1920 x 1080 resolution, which is Full HD quality. This provides clear, detailed surveillance footage suitable for identifying individuals and monitoring activities in both commercial and security applications.
How far does the night vision reach on this dome camera?
The integrated infrared LEDs provide night vision coverage up to 65.6 feet (19.99 meters). This extended range allows for effective surveillance in complete darkness without requiring additional lighting, making it suitable for outdoor perimeter security and low-light indoor areas.
Is this camera suitable for outdoor installation?
Yes, the VLD5 is designed for both indoor and outdoor use. It features IP66 weather resistance against dust and water jets, along with IK10 impact protection against vandalism. The camera operates reliably in temperatures from -22°F to 122°F and up to 90% humidity.
What video formats does this camera support?
This camera supports multiple analog video formats including HD-TVI, CVI, AHD, and CVBS. This compatibility ensures it works with various DVR systems from different manufacturers, providing flexibility in security system integration and upgrades.
What mounting options are available for this dome camera?
The VLD5 offers five mounting options: junction box mount, pole mount, ceiling mount, corner mount, and wall mount. This versatility allows installation in diverse surveillance scenarios, from overhead coverage in retail spaces to angled views in corridors or building exteriors.
What is included in the warranty for this surveillance camera?
Speco provides a 5-year limited warranty for the VLD5 dome camera. This extended warranty period reflects the product's durability and reliability for continuous security monitoring applications, offering long-term protection for your surveillance investment.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
