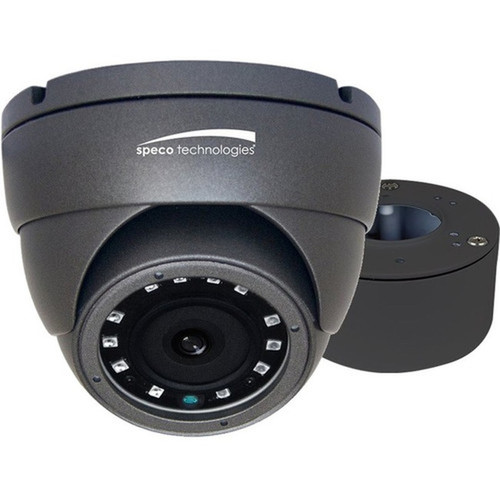

Speco VLDT4G 2MP Full HD Eyeball Surveillance Camera - Gray - 65 ft Infrared Night Vision - 1920 x 1080 - Weather Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports multiple analog video signal formats including HD-TVI, AHD, TVI, and CVBS, along with NTSC and PAL standards, ensuring compatibility with a wide range of DVR systems. The fixed 3.6 mm lens provides an 83° ± 3° field of view, capturing broad areas with minimal distortion.
Advanced imaging features such as automatic white balance, back light compensation, auto gain control, digital noise reduction, and wide dynamic range enhance video quality across varying lighting conditions. The camera operates on 12V DC power and is designed for wired connectivity, offering stable performance without remote management capabilities.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The VLDT4G combines affordability with robust surveillance features, making it an ideal choice for budget-conscious security deployments without compromising on essential performance.
Enhanced Night Vision
With 18 infrared LEDs and a 65-foot range, this camera ensures reliable monitoring in complete darkness, supporting 24/7 security operations.
- Infrared night vision
- 65 ft effective distance
- Built-in IR LEDs
Weather-Resistant Durability
The IP66-rated construction and weather-resistant design allow installation in outdoor or harsh environments, providing long-term reliability.
- IP66 ingress protection
- Weather resistant
- Wide temperature range
Broad Compatibility
Support for HD-TVI, AHD, TVI, CVBS, NTSC, and PAL formats ensures seamless integration with existing analog surveillance systems.
- Multiple video formats
- Analog compatibility
- Easy system integration
Deployment / Use Cases
This camera is well-suited for small to medium-sized surveillance setups, including retail stores, offices, residential properties, and perimeter security. Its eyeball design and junction box mount facilitate discreet installation on ceilings or walls, blending into various architectural styles.
Typical applications include entryway monitoring, parking lot surveillance, hallway security, and outdoor area coverage. The weather-resistant build makes it effective for exposed locations like building exteriors, while the wired connectivity ensures stable video transmission for continuous recording.
Retail & Commercial Security
Monitor entrances, cash registers, and inventory areas with clear Full HD video, enhancing loss prevention and safety.
- Indoor/outdoor use
- High-resolution recording
- Cost-effective solution
Residential & Perimeter Monitoring
Secure homes, driveways, and yards with reliable night vision and weather-resistant performance, providing peace of mind.
- 65 ft night vision
- IP66 rated
- Easy installation
Physical Profile
The camera features a compact gray eyeball design measuring 3.15" in height and 3.70" in width, with a weight of approximately 11.64 ounces. This form factor allows for unobtrusive mounting via the included junction box, suitable for both indoor and outdoor placements. The durable construction supports installation in environments with temperatures ranging from -22°F to 104°F.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.15" (80.01 mm), 3.70" (93.98 mm), 11.64 oz (329.99 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.70" (93.98 mm)
- Height
- 3.15" (80.01 mm)
- Weight
- 11.64 oz (329.99 g)
- Length
- 3.6 mm (0.14")
What's in the Box
The package includes the 2MP HD-TVI Eyeball Camera and the necessary junction box for mounting, providing all essential hardware for immediate setup.
Package contents include 2MP HD-TVI Eyeball Camera, Included Junction Box Junction Box, 2MP HD-TVI Eyeball Camera, Included Junction Box. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2MP Full HD resolution for clear, detailed surveillance video
- 65 ft infrared night vision with 18 built-in IR LEDs
- Weather-resistant IP66 rating for reliable outdoor performance
- Supports HD-TVI, AHD, TVI, CVBS, NTSC, and PAL video formats
- Fixed 3.6 mm lens with 83° ± 3° field of view
- Compact gray eyeball design with junction box mount
- Wired connectivity and 12V DC power for stable operation
- 5-year limited warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | VLDT4G |
| Brand Name | Speco |
| Product Model | VLDT4G |
| Product Name | 2MP HD-TVI Eyeball Camera, Included Junction Box |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65 ft (19.81 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 18 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 83° ± 3° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | HD-TVI,AHD,TVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/50 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Mount Type | Junction Box Mount |
| Form Factor | Eyeball |
| Durability | Weather Resistant |
| Height | 3.15" (80.01 mm) |
| Width | 3.70" (93.98 mm) |
| Weight (Approximate) | 11.64 oz (329.99 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | Built-in IR LED,Automatic White Balance,Back Light Compensation (BLC),Auto Gain Control,Digital Noise Reduction,Wide Dynamic Range,Day/Night |
| Package Contents | 2MP HD-TVI Eyeball Camera, Included Junction Box Junction Box |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the video resolution of the Speco VLDT4G camera?
The Speco VLDT4G delivers Full HD video at 1920x1080 resolution with a 2-megapixel effective camera resolution, providing sharp and detailed imagery suitable for surveillance applications.
How far does the night vision reach on this camera?
This camera features infrared night vision with a range of 65 feet (19.81 meters), powered by 18 built-in IR LEDs to ensure clear monitoring in low-light or complete darkness.
Is the Speco VLDT4G suitable for outdoor installation?
Yes, the camera is weather-resistant with an IP66 ingress protection rating, making it suitable for outdoor use. It operates reliably in temperatures from -22°F to 104°F.
What video signal formats does this camera support?
The VLDT4G supports multiple analog formats including HD-TVI, AHD, TVI, and CVBS, along with NTSC and PAL standards, ensuring compatibility with a wide range of DVR systems.
What type of lens does this surveillance camera have?
It includes a fixed 3.6 mm lens with an 83° ± 3° field of view, providing a broad coverage area without adjustable zoom, ideal for consistent monitoring setups.
What is included in the package with the Speco VLDT4G?
The package contains the 2MP HD-TVI Eyeball Camera and the necessary junction box for mounting, offering all essential components for immediate installation and use.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
