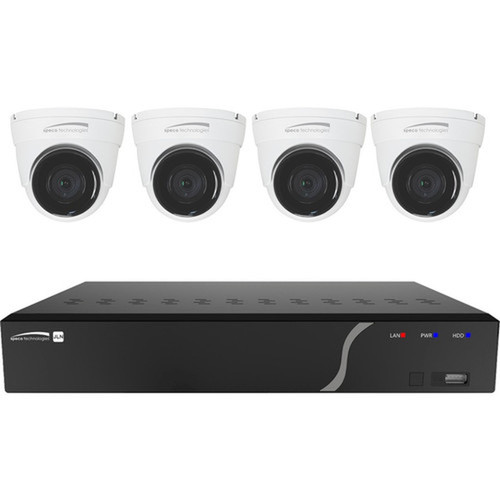

Speco ZIPK4N1 4-Channel Video Surveillance System - 1 TB HDD - 8MP NVR with 4 x 5MP IP Cameras - H. 265/H. 264 - Night Vision - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance system operates on wired Ethernet connectivity, ensuring reliable network performance for continuous recording and remote access. The NVR features HDMI and VGA video outputs for local monitoring, along with USB ports for peripheral connectivity and data transfer.
Each of the four included cameras captures 5-megapixel video at a maximum resolution of 2592 x 1944 pixels, delivering detailed imagery for identification purposes. The cameras support night vision functionality with a minimum illumination requirement of 0 lux, enabling 24/7 surveillance capability in complete darkness.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ZIPK4N1 system combines essential surveillance features in a ready-to-deploy package that reduces installation complexity and upfront configuration time. The inclusion of four 60-foot Ethernet cables and a power adapter ensures you have the necessary components for immediate setup.
Complete Surveillance Solution
Includes NVR, cameras, cables, and accessories in one box for straightforward deployment without additional component sourcing.
- 4-channel NVR with 1 TB HDD
- Four 5MP IP cameras
- Ethernet cables and power adapter included
Advanced Video Efficiency
H.265 video compression technology maximizes storage utilization while maintaining high-resolution footage quality across all channels.
- Reduces storage requirements
- Maintains 8MP maximum resolution
- Supports dual H.264/H.265 formats
Deployment / Use Cases
This 4-channel system is ideally suited for small retail stores, office environments, entry-level business security applications, and residential properties requiring comprehensive coverage. The compact NVR dimensions (11.8" W × 8.9" D × 2.1" H) allow for flexible placement on shelves, desks, or in network cabinets.
The remote management capability enables monitoring from computers, tablets, or smartphones, providing business owners and security personnel with real-time access to live feeds and recorded footage from any location with internet connectivity. This makes the system particularly valuable for multi-site management or after-hours monitoring scenarios.
Small Business Security
Protect retail spaces, offices, or service businesses with four camera positions covering entrances, cash areas, inventory spaces, and employee zones.
24/7 Monitoring Capability
Night vision functionality ensures continuous surveillance coverage regardless of lighting conditions, with remote access for after-hours monitoring.
Physical Profile
The network video recorder features a compact design measuring 11.80 inches wide, 8.90 inches deep, and 2.10 inches high, with a weight of approximately 680 grams for the camera units. This form factor supports flexible installation options including desktop placement, shelf mounting, or integration into existing network equipment racks.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.10" (53.34 mm), 11.80" (299.72 mm), 8.90" (226.06 mm), 680.4 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.80" (299.72 mm)
- Depth
- 8.90" (226.06 mm)
- Height
- 2.10" (53.34 mm)
- Weight
- 680.4 g
What's in the Box
The ZIPK4N1 package includes all necessary components for immediate system deployment and operation.
Highlights
- Complete 4-channel surveillance system with NVR and four 5MP cameras
- 1 TB pre-installed hard drive for immediate recording capacity
- 8MP maximum resolution support with H.265/H.264 video compression
- Built-in PoE ports power all four cameras through Ethernet cables
- Night vision capability with 0 lux minimum illumination requirement
- Remote management from computers, tablets, or smartphones
- HDMI and VGA outputs for local monitoring flexibility
- Includes all necessary cables and accessories for quick deployment
- Wired Ethernet connectivity for reliable network performance
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | ZIPK4N1 |
| Brand Name | Speco |
| Product Model | ZIPK4N1 |
| Product Name | ZIPK4N1 Video Surveillance System |
| Product Type | Video Surveillance System |
| Technical Information | |
| Total Number of Channels | 4 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Network Video Recorder,Camera |
| Storage | |
| Hard Drive Capacity | 1 TB |
| Video | |
| Video Formats | H.265,H.264 |
| Maximum Resolution | 8MP |
| Camera | |
| Effective Camera Resolution | 5 Megapixel |
| Maximum Camera Resolution | 2592 x 1944 |
| Minimum Illumination | 0 lux |
| Night Vision | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 2.10" (53.34 mm) |
| Width | 11.80" (299.72 mm) |
| Depth | 8.90" (226.06 mm) |
| Camera Weight | 680.4 g |
| Miscellaneous | |
| Package Contents | 4-Channel Network Video Recorder with 4 Built-In PoE Ports 4 x 5MP IP Cameras 4 x 60ft Ethernet cables 1 x 3ft Ethernet cable Remote Control (Batteries included) USB Optical Mouse 48V Power Adapter HDMI Cable |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can this surveillance system support?
The Speco ZIPK4N1 is a 4-channel system that supports up to four IP cameras simultaneously. The package includes four 5MP cameras, and the NVR features four built-in PoE ports to power and connect all cameras directly without requiring additional switches or injectors.
What storage capacity does the NVR have installed?
This system comes with a 1 TB hard drive pre-installed in the network video recorder. This provides substantial recording capacity for four camera streams, with the actual retention period depending on recording settings, resolution, motion activity, and compression efficiency of the H.265/H.264 formats.
What resolution do the included cameras record at?
The four included IP cameras have an effective resolution of 5 megapixels, with a maximum resolution capability of 2592 × 1944 pixels. The NVR supports recording at up to 8MP maximum resolution, providing flexibility for future camera upgrades while maintaining compatibility with the current 5MP cameras.
Does this system support night vision recording?
Yes, all four cameras feature night vision capability with a minimum illumination requirement of 0 lux. This enables the cameras to capture usable video footage in complete darkness, ensuring 24/7 surveillance coverage regardless of ambient lighting conditions in the monitored area.
How is remote access to the surveillance system managed?
The system supports remote management through network connectivity, allowing access to live feeds and recorded footage from computers, tablets, smartphones, or other mobile devices with internet access. This enables business owners and security personnel to monitor premises from any location with network connectivity.
What cables and accessories are included in the package?
The complete package includes four 60-foot Ethernet cables for camera connections, one 3-foot Ethernet cable for network connectivity, a remote control with batteries, a USB optical mouse for system navigation, a 48V power adapter for the NVR, and an HDMI cable for connecting to a local monitor or display.
