StarTech. com C6PATCH10BK CAT6 Ethernet Patch Cable - 10ft Black - 10Gbps - 100W PoE - UTP - Gold-Plated RJ45 - Molded - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable operates at 250 MHz and uses Unshielded Twisted Pair (UTP) construction with 24 AWG stranded copper wiring. It supports data transfer rates up to 10Gbps at distances up to 160 feet, backward compatible with CAT5e networks. The cable is UL rated (E132276-A) for PoE applications up to 100W, compliant with IEEE 802.3bt and DTE power standards to minimize cable heating.

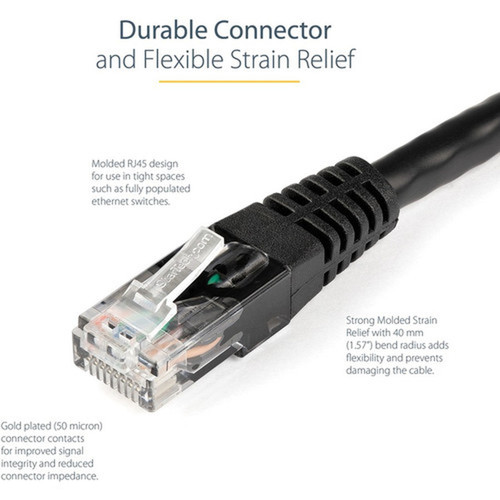

The connectors feature 50-micron gold plating for optimal signal integrity and corrosion resistance. The CMG-rated PVC jacket provides flame-retardant properties suitable for commercial installations. Each cable is individually tested to ensure compliance with ANSI/TIA-568-2.D Category 6 specifications.
Key Product Advantages
This Ethernet cable combines performance, durability, and compliance in a single solution. The gold-plated connectors and high-quality copper conductors ensure minimal signal loss, while the molded design and strain relief protect against physical damage during installation and use.
PoE Ready Design
Supports up to 100W Power over Ethernet for devices like VoIP phones, wireless access points, and security cameras without separate power cables.
- IEEE 802.3bt compliant
- UL rated wiring (E132276-A)
- Reduced cable heating
Certified Performance

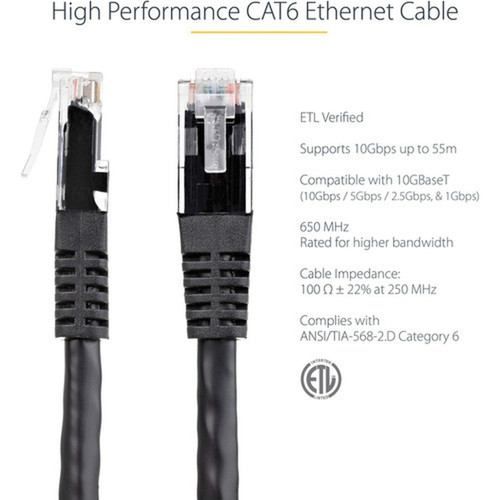

ETL verified to meet ANSI/TIA-568.2-D Category 6 standards with individual testing for reliable gigabit and multi-gigabit connectivity.
- 10Gbps up to 160'
- Backward compatible with CAT5e
- 100% copper conductors
Deployment / Use Cases
This 10-foot CAT6 patch cable is ideal for connecting network devices in office environments, data centers, and commercial installations. Its length makes it suitable for patch panels, switches, routers, and end devices where moderate reach is required.
Common applications include connecting computers to network switches, linking VoIP phones to PoE switches, integrating security cameras into surveillance systems, and extending network connections in server racks. The black color blends discreetly with most equipment, while the snagless boot option (available separately) facilitates installation in conduit and crowded cable management systems.
Office Network Infrastructure
Connect workstations, printers, and network equipment in business environments with reliable gigabit or multi-gigabit speeds.
PoE Device Deployment
Power and connect VoIP phones, wireless access points, and IP cameras using a single cable for simplified installations.
Physical Profile
This patch cable features a sleek black PVC jacket with molded strain relief at both ends. The cable measures 10 feet (3.05 meters) in length and weighs approximately 4.50 ounces (127.57 grams). The CMG-rated jacket provides durability and flame resistance for commercial use, while the flexible design allows easy routing in tight spaces.
- Weight
- 4.50 oz (127.57 g)
- Length
- 10 ft (3.05 m)
Highlights
- 10Gbps data transfer speed up to 160 feet
- 100W Power over Ethernet (PoE) support for connected devices
- Gold-plated RJ45 connectors resist corrosion and ensure reliable connections
- 24 AWG stranded copper conductors with UTP construction
- Molded strain relief and durable PVC jacket for physical protection
- ETL verified to ANSI/TIA-568.2-D Category 6 standards
- Backward compatible with CAT5e network equipment
- Lifetime warranty for long-term reliability
- Black color blends with most network environments
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6PATCH10BK |
| Brand Name | StarTech.com |
| Product Name | 10ft Black Cat6 UTP Patch Cable ETL Verified |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Jacket Type | CMG |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Molded,PoE,Strain Relief,Damage Resistant,Corrosion Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 4.50 oz (127.57 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed supported by this CAT6 cable?
This StarTech.com CAT6 patch cable supports data transfer rates up to 10 Gbit/s (10Gbps) at distances up to 160 feet. It is also fully compatible with lower-speed standards including 1Gbps, 2.5Gbps, and 5Gbps, making it suitable for both current and future network upgrades while maintaining backward compatibility with CAT5e equipment.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable supports up to 100W of Power over Ethernet (PoE). It features 24 AWG stranded copper conductors and UL rated wiring (E132276-A) that complies with IEEE 802.3bt and DTE power standards. This allows you to power devices like VoIP phones, wireless access points, and security cameras directly through the network connection without separate power cables.
What type of connectors does this patch cable have?
Both ends of this cable feature RJ-45 network connectors with male gender. The connectors are gold-plated with 50-micron thickness to prevent corrosion and ensure reliable electrical contact. This configuration is standard for connecting network devices like computers, switches, routers, and other Ethernet-enabled equipment.
Is this cable certified for commercial use?
Yes, this cable is ETL verified to meet ANSI/TIA-568.2-D Category 6 standards and features a CMG-rated PVC jacket suitable for commercial installations. It is also RoHS compliant, meeting EU environmental regulations for hazardous substance restrictions. Each cable is individually tested to ensure compliance with industry specifications.
What is the warranty for this Ethernet cable?
StarTech.com provides a lifetime warranty for this CAT6 patch cable. This warranty covers defects in materials and workmanship for the life of the product, offering long-term reliability and peace of mind for your network infrastructure investments.
Can this cable be used in high-density patch panels?
Yes, the 10-foot length and molded design make this cable ideal for high-density patch panels and crowded network installations. The strain relief protects the connector joints during frequent insertion and removal, while the flexible jacket allows for neat cable management. An optional snagless boot version is available for easier installation in conduit and tight spaces.
