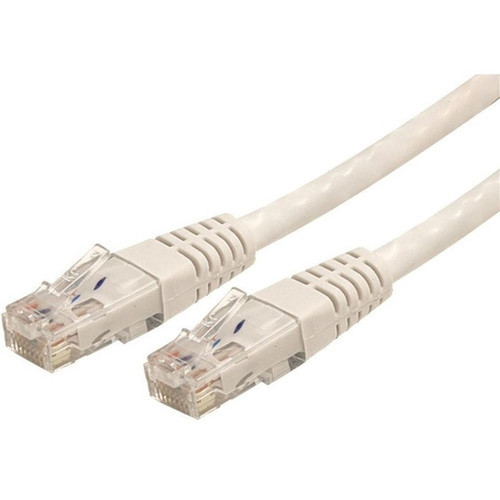

StarTech. com C6PATCH20WH 20ft Cat6 Ethernet Patch Cable - White Molded UTP - 10Gbps 250MHz - 100W PoE++ - Snagless Boot
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6 patch cable operates at 250 MHz and complies with ANSI/TIA-568.2-D standards for Category 6 performance. The 4-pair UTP construction with ANSI/T568B wiring supports multi-gigabit connections at 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps speeds.
The cable features IEEE 802.3bt PoE++ compatibility, delivering up to 100W of power to connected devices while minimizing cable heating. The 50-micron gold-plated contacts resist corrosion, and the high-quality PVC CMG jacket provides bend and fray resistance.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines performance, durability, and installation convenience for professional network deployments. The molded construction and snagless boots prevent damage during cable management, while the environmental certifications ensure responsible manufacturing.
Reliable Power Delivery
The 24 AWG copper conductors and UL-rated wiring support PoE++ applications up to 100W, making this cable ideal for powering VoIP phones, security cameras, and wireless access points without separate power supplies.
Durable Construction
Gold-plated connectors resist rust and corrosion, while the PVC jacket provides protection against bending, fraying, and environmental damage. The molded strain relief adds longevity in high-use scenarios.
Standards Compliance
Individually tested to meet ANSI/TIA-568-2.D Category 6 specifications with ETL verification. The cable is backward compatible with Cat5e networks and supports standard network topologies.
Deployment / Use Cases
This 20-foot Cat6 patch cable is designed for connecting network equipment in office environments, data centers, and commercial installations. The white color blends with modern interiors while providing clear cable identification.
Common applications include connecting computers to wall outlets, linking switches to patch panels, powering VoIP telephones, and integrating security devices into network infrastructure. The cable works with network devices, workstations, hubs, distribution panels, and security systems.
Office Network Expansion
Extend network connections between workstations and wall outlets or switches in open-plan offices and cubicle environments. The 20-foot length provides flexibility for desk arrangements.
PoE Device Installation
Power and connect VoIP phones, wireless access points, and security cameras using a single cable. The 100W PoE++ support eliminates the need for separate power adapters at device locations.
Physical Profile
The cable features a white PVC CMG jacket that resists damage while maintaining flexibility for routing through conduits and cable organizers. The snagless boots prevent accidental disconnection in high-density patch panels, and the molded connectors provide strain relief at termination points.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.80 oz (249.48 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 8.80 oz (249.48 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot Category 6 UTP patch cable with RJ45 male connectors on both ends
- Supports 10Gbps data transfer speeds at distances up to 160 feet
- 100W PoE++ compatibility for powering network devices
- Gold-plated contacts resist corrosion and ensure reliable connections
- Molded construction with snagless boots for easy installation
- 24 AWG stranded copper conductors with ANSI/T568B wiring
- ETL verified to meet ANSI/TIA-568.2-D Category 6 standards
- White PVC CMG jacket provides bend and fray resistance
- Backward compatible with Cat5e network equipment
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6PATCH20WH |
| Brand Name | StarTech.com |
| Product Name | 20ft White Cat6 UTP Patch Cable ETL Verified |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Wall Outlet,VoIP Device,Hub,Distribution Panel,Security Device |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | Molded,PoE,Strain Relief,Damage Resistant,Corrosion Resistant,Stranded,Rust Resistant,Bend Resistant,Fray Resistant,PoE++ |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this Cat6 cable supports?
This Cat6 patch cable supports data transfer rates up to 10 Gbps at distances up to 160 feet. It is also compatible with lower-speed networks including 1Gbps, 2.5Gbps, and 5Gbps connections, making it suitable for both current and future network upgrades.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable fully supports Power over Ethernet applications up to 100W (PoE++). The 24 AWG stranded copper conductors and UL-rated wiring are designed to handle high-power PoE devices like VoIP phones, security cameras, and wireless access points while minimizing cable heating.
What type of connectors does this cable have?
Both ends of the cable feature standard RJ45 male connectors with 50-micron gold plating. The connectors are designed for reliable insertion and removal cycles, and the snagless boot design prevents accidental disconnection in crowded patch panels.
Is this cable backward compatible with older network equipment?
Yes, this Cat6 patch cable is fully backward compatible with Cat5e network equipment. You can use it to connect older devices while maintaining the ability to upgrade to higher-speed networks in the future without replacing cabling infrastructure.
What certifications does this cable have?
This cable is ETL verified to meet ANSI/TIA-568.2-D Category 6 standards and features UL-rated wiring (E132276-A). It also complies with environmental regulations including RoHS, REACH, and WEEE directives for responsible manufacturing and disposal.
What is the warranty on this network cable?
StarTech.com provides a lifetime warranty on this Cat6 patch cable, ensuring long-term reliability for your network installations. The warranty covers defects in materials and workmanship for the life of the product when used under normal conditions.
