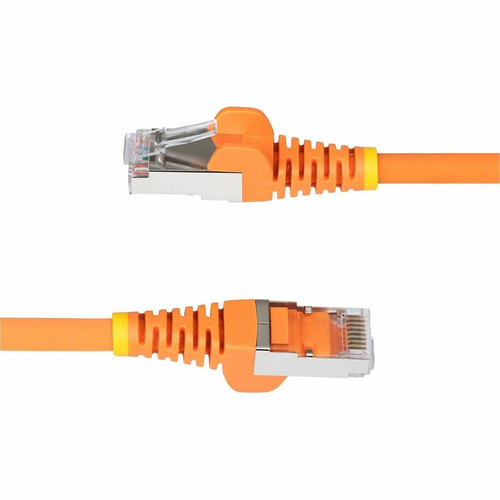

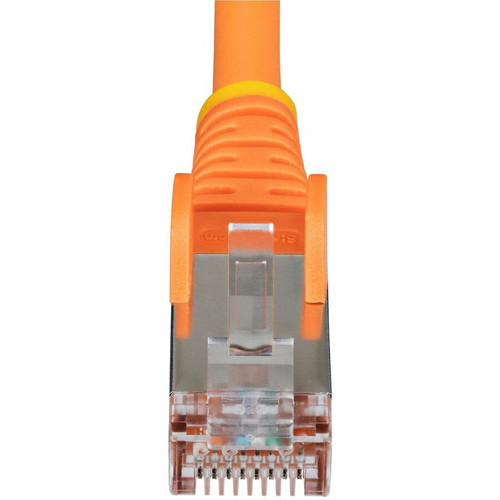

StarTech. com NLOR-6F-CAT6A-PATCH StarTech 6ft CAT6a Ethernet Cable - Snagless RJ45 - 10G - 100W PoE++ - S/FTP Shielded - LSZH - Orange
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6a cable meets ANSI/TIA-568.2-D standards and is individually tested to guarantee performance. It operates at frequencies up to 500MHz, with low near-end crosstalk (NEXT) and return loss for reliable signal transmission. The cable features four twisted pairs with eight conductors, supporting 10GBASE-T network deployments.
The construction includes aluminum mylar foil with a tinned copper braid shield for comprehensive EMI protection. Strain relief boots prevent cable damage at connection points, and the flame-retardant LSZH jacket emits minimal toxic fumes if exposed to fire, making it suitable for poorly ventilated areas.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines high-speed data transfer with robust power delivery and safety features, offering a comprehensive solution for modern network infrastructure.
Enhanced Reliability
S/FTP shielding and 27AWG bare copper wire ensure stable performance in environments with electrical interference, while gold-plated connectors maintain signal integrity over repeated connections.
- Reduced EMI/RFI interference
- Consistent conductivity
- Durable connector design
Safety & Compliance
The LSZH jacket meets strict safety standards for low smoke and zero halogen emissions, making it ideal for data centers, offices, and industrial settings where fire safety is a priority.
- Flame retardant
- Low toxic fume emission
- RoHS and WEEE compliant
Deployment / Use Cases
This cable is versatile enough for various professional and commercial networking scenarios, particularly where high bandwidth and power delivery are required simultaneously.
It excels in connecting network switches to PoE++ devices like IP cameras, wireless access points, and NAS storage units. The 10 Gbps capability makes it suitable for backbone connections in small to medium-sized networks, while the flexible LSZH jacket allows routing through tight spaces in racks or conduits.
Enterprise Networking
Ideal for 10GBASE-T switch deployments, providing high-speed links between servers, switches, and storage devices in data centers or office networks.
PoE++ Applications
Supports high-power devices such as PTZ cameras, VoIP phones, and LED lighting systems that require up to 100W of power over Ethernet.
Highlights
- Supports 10 Gbps data transfer speeds for high-bandwidth applications
- Delivers up to 100W PoE++ (IEEE 802.3bt Type 4) for powering connected devices
- S/FTP shielding with aluminum mylar and tinned copper braid for EMI protection
- LSZH jacket is flame retardant and emits low toxic fumes for enhanced safety
- 27AWG bare copper conductors ensure reliable signal transmission
- Gold-plated RJ45 connectors with snagless boots for durable connections
- Individually tested to meet ANSI/TIA-568.2-D Cat6a performance standards
- Backward compatible with Cat6, Cat5e, and Cat5 networks
- Bright orange color for easy cable identification and management
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLOR-6F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S-FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 6 ft (1.83 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device,Switch,NAS Storage Device,Module,PoE Switch,Access Point,IP Camera |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Features | Passive,PoE++,Shielded with Foiled Twisted Pair (S/FTP),Strain Relief,EMI Protection,Flame Retardant,Near End Cross Talk (NEXT),Wear Resistant |
| Physical Characteristics | |
| Color Family | Orange |
| Product Color | Orange |
| Product Material | Copper |
| Shielding Material | Braided Foil,Aluminum Mylar,Tinned Copper Braid |
| Jacket Material | Low Smoke Zero Halogen |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this CAT6a cable supports?
This StarTech CAT6a cable supports data transfer rates up to 10 Gbps (10GBASE-T), making it suitable for high-speed network applications including server connections, network backbones, and data-intensive workloads. It operates at frequencies up to 500MHz with low near-end crosstalk to maintain signal integrity at maximum speeds.
Can this cable deliver power to connected devices?
Yes, this cable supports Power over Ethernet++ (PoE++) up to 100W, compliant with IEEE 802.3bt Type 4 standards. This allows it to power devices like IP cameras, wireless access points, and VoIP phones directly through the Ethernet connection, eliminating the need for separate power supplies.
What does S/FTP shielding provide?
S/FTP (Shielded with Foiled Twisted Pair) shielding combines individual foil shielding around each twisted pair with an overall braided shield. This dual-layer protection minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable performance in electrically noisy environments like industrial settings or dense network racks.
Why is the LSZH jacket important?
The Low Smoke Zero Halogen (LSZH) jacket is flame retardant and emits minimal toxic smoke when exposed to fire. This makes the cable safer for use in enclosed spaces, poorly ventilated areas, and public buildings where fire safety regulations require reduced smoke and toxic fume emissions during combustion.
Is this cable backward compatible with older network standards?
Yes, this CAT6a cable is fully backward compatible with Cat6, Cat5e, and Cat5 networks. It will work with existing network equipment while providing improved performance characteristics when used with compatible devices. The cable has been tested to ensure proper functionality across these standards.
What applications is this cable best suited for?
This cable is ideal for 10GBASE-T network deployments, connecting switches to servers or storage devices, and powering PoE++ equipment like security cameras and access points. Its combination of high-speed data transfer, power delivery, and robust construction makes it suitable for data centers, office networks, surveillance systems, and industrial environments.
