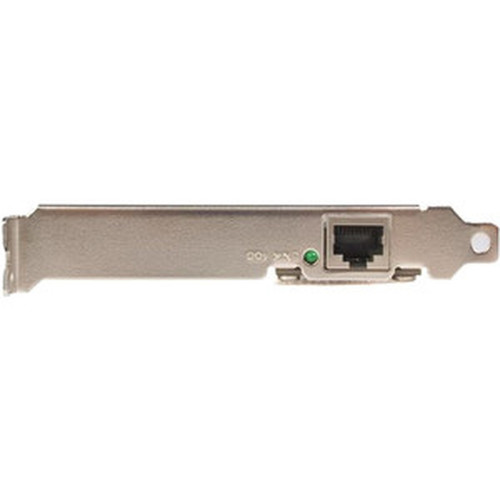

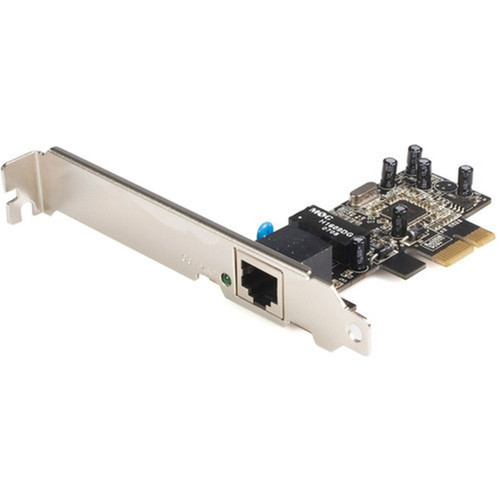

StarTech. com PEX100S 1 Port PCIe Ethernet Network Card - 10/100Mbps Desktop Computer Adapter
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
- 1 x Low Profile Bracket
- 1 x Instruction Manual
- 1 x Driver CD
Chipset Manufacturer: Realtek
Chipset Model: RTL8101E
Host Interface: PCI Express
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Maximum Data Transfer Rate: 100 Mbit/s
Network Technology: 10/100Base-TX
Form Factor: Plug-in Card
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Weight (Approximate): 1.10 oz (31.18 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Limited Warranty: 2 Year
- Single 10/100Mbps RJ45 Ethernet port
- Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
- Crossover Detection & Auto-Correction (Auto-MDIX)
- Full and Half duplex mode support
- Link speed and duplex mode auto-negotiation
- Link/Activity and 10/100Mbps LED indicators
- Supports Wake-on-LAN
- Full/Low Profile installation brackets included
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX100S |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card |
| Packaged Quantity | 1 Each |
| Product Type | Fast Ethernet Card |
| Technical Information | |
| Chipset Manufacturer | Realtek |
| Chipset Model | RTL8101E |
| Interfaces/Ports | |
| Host Interface | PCI Express |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Weight (Approximate) | 1.10 oz (31.18 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
