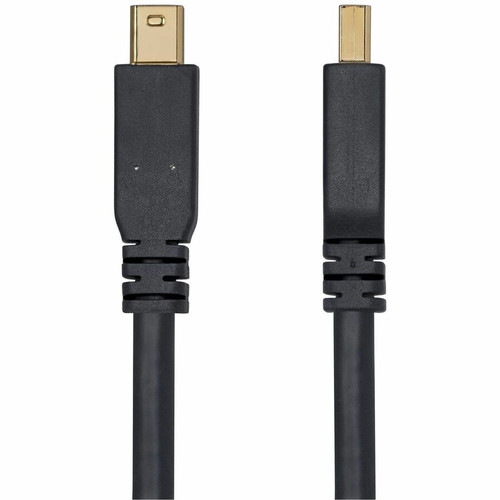

StarTech. com DP14MDPMM10F 10ft Mini DisplayPort to DisplayPort 1. 4 Cable - 8K 60Hz HBR3 HDR - 4K 120Hz - 32. 4Gbps - Gold Plated - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable leverages the DisplayPort 1.4 standard to achieve a data transfer rate of 32.4 Gbps, enabling support for High Bit Rate 3 (HBR3) signaling. Key technical features include Display Stream Compression (DSC) 1.2 for visually lossless compression at high resolutions, Multi-Stream Transport (MST) for daisy-chaining multiple monitors, and Forward Error Correction (FEC) to maintain signal integrity over longer distances.
The internal construction uses 19 conductors within a 30 AWG cable, managed to preserve signal quality. The connector interface is a standard 20-pin layout on both ends, with a latching mechanism on the DisplayPort connector to prevent accidental disconnection during use.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable stands out by combining cutting-edge DisplayPort 1.4 capabilities with a rugged, professional-grade build. It is designed not just to connect devices but to fully unlock the potential of modern high-resolution, high-refresh-rate displays and graphics hardware without compromise.
Future-Proof Resolution Support
Directly supports 8K 60Hz and 4K 120Hz outputs, ensuring compatibility with next-generation monitors, professional displays, and high-end gaming setups. The inclusion of HDR transport and DSC technology guarantees high-fidelity video and image quality.
Enhanced Reliability & Durability
Features gold-plated connectors to resist oxidation, a braided aluminum mylar foil shield for superior EMI protection, and a PVC jacket with integrated strain relief. The latching DisplayPort connector provides a secure, vibration-resistant connection.
Professional Feature Set
Includes Multi-Stream Transport for simplified multi-monitor arrays, Forward Error Correction for data integrity, and broad certification for protocols like HDCP 2.2 for protected content playback.
Deployment / Use Cases
This cable is essential for IT professionals, content creators, and power users who require a dependable, high-bandwidth connection between their source device and display. Its 10-foot length offers flexibility in desk and rack mounting scenarios, while its robust construction suits both stationary and semi-mobile environments.
Primary use cases include connecting high-end NVIDIA Quadro or AMD Radeon Pro/FirePro workstation graphics cards to 8K or high-refresh-rate 4K reference monitors for CAD, video editing, and 3D rendering. It is equally effective for daisy-chaining multiple business monitors in a financial trading or control room setup using MST, or for connecting a laptop with a Mini DisplayPort or Thunderbolt 2 port to an external high-performance display.
Professional Workstations
Ideal for connecting workstation GPUs (e.g., NVIDIA Quadro P-series, AMD Radeon Pro WX-series) to high-resolution, color-accurate professional monitors for design, engineering, and media production.
High-Performance Gaming & Entertainment
Enables 4K gaming at 120Hz on compatible monitors and supports HDR content, providing a premium experience for gaming PCs and home theater PCs connected to high-end TVs or projectors.
Highlights
- Supports 8K resolution at 60Hz and 4K at 120Hz for ultra-high-definition content.
- DisplayPort 1.4 standard with full 32.4 Gbps HBR3 bandwidth.
- Features Display Stream Compression (DSC) 1.2 for visually lossless high-resolution video.
- Multi-Stream Transport (MST) enables daisy-chaining of multiple monitors from a single port.
- Gold-plated connectors resist tarnishing and ensure optimal signal conductivity.
- Comprehensive EMI shielding with aluminum mylar foil and braid protects against interference.
- Durable PVC jacket with strain relief protects the cable core from bending stress.
- Latching connector on the DisplayPort end secures the connection and prevents disconnection.
- Broad compatibility with NVIDIA Quadro, AMD Radeon Pro/FirePro, and Apple Mac systems.
- 10-foot (3-meter) length offers flexible placement options for workstations and AV setups.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP14MDPMM10F |
| Brand Name | StarTech.com |
| Product Name | 10ft Mini DisplayPort to DisplayPort Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,Monitor,Graphics Card,Notebook,Workstation,TV,Projector,PC,MAC |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320,3840 x 2160 |
| Number of Conductors | 19 |
| Features | High Bit Rate 3 (HBR3),HDR Support,Display Stream Compression (DSC),Multi-Stream Transport (MST) Support,Forward Error Correction (FEC) Support,Braided,EMI Protection,Latching Connector,Durable,Strain Relief,Tarnish Resistant,Display Stream Compression (DSC) 1.2,HDCP 2.2,DPCP,Dynamic HDR Support |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Connector Material | Metal |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Compatibility | Nvidia Quadro - P620, P600, P400 Graphic Cards AMD Radeon Pro - VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500,WX x100Graphic Cards FirePro - W9100/900/600/4100 Graphic Cards Apple - MAC |
FAQ
What resolutions and refresh rates does this cable support?
This DisplayPort 1.4 cable supports up to 8K resolution (7680x4320) at a 60Hz refresh rate and 4K UHD (3840x2160) at 120Hz. Support for these high resolutions and refresh rates is enabled by the HBR3 (High Bit Rate 3) standard and Display Stream Compression (DSC) 1.2 technology.
Is this cable compatible with my graphics card?
The cable has broad compatibility with professional and consumer graphics cards. It is explicitly tested and works with NVIDIA Quadro (P620, P600, P400), AMD Radeon Pro (VII, WX series, W5700/5500), AMD FirePro (W9100, W9000, W600, W4100), and systems with Mini DisplayPort or Thunderbolt 2 ports, including Apple Mac computers.
What is the benefit of the gold-plated connectors?
Gold plating on the connectors provides superior corrosion and oxidation resistance compared to other metals like nickel or tin. This ensures consistent electrical conductivity and signal integrity over the lifespan of the cable, preventing signal degradation that can cause flickering, artifacts, or loss of connection.
Can I use this cable to connect multiple monitors?
Yes, this cable supports Multi-Stream Transport (MST), a feature of DisplayPort that allows you to daisy-chain multiple compatible monitors from a single DisplayPort output on your computer or graphics card. This simplifies cable management and reduces port usage on your source device.
How does the cable protect against signal interference?
The cable employs a dual-layer shielding system. It features an aluminum mylar foil shield combined with a braided shield around the internal conductors. This design effectively blocks electromagnetic interference (EMI) and radio-frequency interference (RFI), which is crucial for maintaining a clean, stable signal, especially in environments with many electronic devices or over the 10-foot cable length.
What is the cable length and is it suitable for my setup?
The cable is 10 feet (approximately 3.05 meters) long. This length is ideal for most desktop setups, providing enough reach to route the cable neatly behind a desk, connect a wall-mounted monitor, or span the distance from a floor-standing computer tower to a desk-mounted display. The included strain relief helps manage stress at the connection points.
What resolution or display format is specified?
It features a display specification of 7680 x 4320,3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
