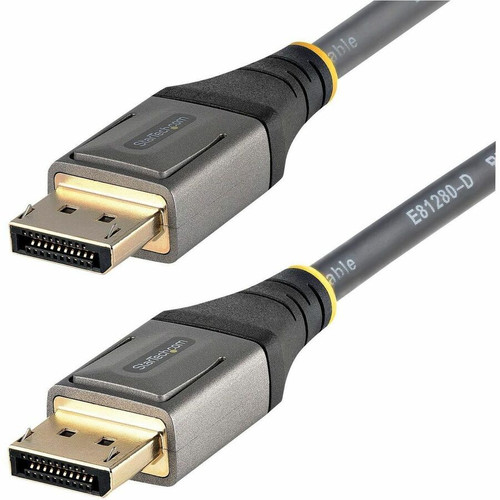

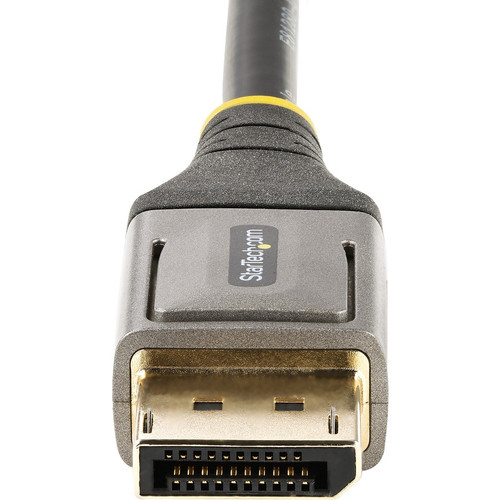

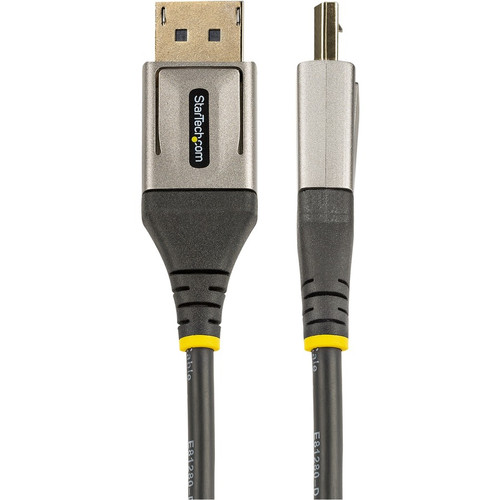

StarTech. com DP14VMM3M VESA Certified DisplayPort 1. 4 Cable - 10ft - 3m - 8K 60Hz HDR10 - 4K 120Hz - 32. 4Gbps - Gold-Plated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DisplayPort 1.4 cable operates at 32.4 Gbps bandwidth, supporting 8K resolution (7680 x 4320) at 60Hz with HDR10 and 4K resolution (3840 x 2160) at 120Hz. The cable implements HBR3 signaling with 4:4:4 chroma subsampling for uncompressed color accuracy. Forward Error Correction ensures reliable data transmission even in electrically noisy environments.
The cable's construction includes 20-pin DisplayPort 1.4 connectors on both ends with gold plating for optimal conductivity and corrosion resistance. Internal wire management maintains consistent impedance, while the Al-Mylar foil with 85% braid coverage provides superior EMI protection. The thermoplastic elastomer jacket offers flexibility and durability with halogen-free materials meeting RoHS environmental standards.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This DisplayPort cable combines future-proof performance with robust construction for reliable operation in professional and demanding consumer applications. The VESA certification guarantees compliance with DisplayPort 1.4 specifications, ensuring compatibility with current and upcoming display technologies.
Enhanced Durability
Tested to withstand over 5000 insertion cycles and 600 bend cycles at 120-degree angles, with molded strain relief that absorbs stress from frequent movement.
- 5000+ insertion cycles
- 600+ bend cycles
- Molded strain relief
Superior Signal Integrity
Advanced shielding and construction maintain clean signal transmission for artifact-free video, even at maximum bandwidth over the full 10-foot length.
- 85% braid coverage
- Internal wire management
- Consistent impedance
Future-Proof Connectivity
Supports emerging display technologies including 8K resolution, HDR10, and Display Stream Compression 1.2 for next-generation content.
- 8K ready
- HDR10 support
- DSC 1.2 compatible
Deployment / Use Cases
This high-performance DisplayPort cable serves professional workstations requiring maximum resolution and refresh rates for CAD, video editing, and 3D rendering applications. It connects high-end graphics cards like AMD Radeon Vega Frontier/Pro WX series and NVIDIA Quadro GP100/GV100/RTX 4000 to compatible 8K displays.
Gaming enthusiasts benefit from the 4K 120Hz capability for smooth gameplay on high-refresh-rate monitors. The cable also supports multi-monitor configurations through MST, making it suitable for financial trading desks, control rooms, and creative studios where multiple displays are essential. Home theater installations can leverage the 8K HDR10 support for premium viewing experiences with compatible projectors and large-format displays.
Professional Workstations
Connect high-end graphics workstations to 8K reference monitors for color-accurate video production, medical imaging, and engineering visualization.
Gaming & Entertainment
Deliver 4K at 120Hz for competitive gaming or 8K HDR content for immersive home theater experiences with compatible displays and source devices.
Highlights
- VESA Certified DisplayPort 1.4 cable with 10ft (3m) length
- Supports 8K resolution at 60Hz with HDR10 and 4K at 120Hz
- 32.4 Gbps bandwidth for maximum DisplayPort 1.4 performance
- Gold-plated 20-pin connectors with secure latching mechanism
- Advanced EMI shielding with 85% braid coverage for clean signals
- Durable TPE jacket tested for 5000+ insertions and 600+ bend cycles
- Supports Multi-Stream Transport for daisy-chaining multiple displays
- Compatible with DP 1.4 and previous DisplayPort versions
- Halogen-free construction meeting RoHS environmental standards
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP14VMM3M |
| Brand Name | StarTech.com |
| Product Name | Displayport 1.4 8K Cable |
| Packaged Quantity | 1 |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,Monitor,Workstation,Notebook,Desktop Computer,TV,Projector,Digital Signage Player,Graphics Card |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 32.4 Gbit/s |
| Supported Resolution | 7680 x 4320 |
| Features | HDR Support,Multi-Stream Transport (MST) Support,EMI Protection,Latching Connector,Molded,Strain Relief,Stress Resistant,Bendable,Halogen Free,Display Stream Compression (DSC) 1.2,Forward Error Correction (FEC) Support,HDCP 2.2,Flexible,Corrosion-free,Passive |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Gray |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Miscellaneous | |
| Compatibility | Radeon Vega Frontier/Pro WX Series Graphic Cards: 2100 3100 5100 7100 W5500 Pro Duo 2000 Nvidia Quadrop Graphic Cards: GP100 GV100 RTX 4000 Dell XPS 11th Gen Laptops HP Z2 G8 Tower Workstation |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What resolutions and refresh rates does this DisplayPort cable support?
This VESA Certified DisplayPort 1.4 cable supports 8K resolution (7680 x 4320) at 60Hz with HDR10 and 4K resolution (3840 x 2160) at 120Hz. It delivers 32.4 Gbps bandwidth for uncompressed video transmission with 4:4:4 chroma subsampling, ensuring full color accuracy at these high resolutions.
Is this cable backward compatible with older DisplayPort versions?
Yes, this DisplayPort 1.4 cable maintains full backward compatibility with previous DisplayPort versions. It works with DisplayPort 1.2, 1.3, and 1.4 source devices and displays, automatically negotiating the highest mutually supported bandwidth between connected devices.
What makes this cable VESA Certified, and why does that matter?
VESA certification guarantees this cable meets all DisplayPort 1.4 specification requirements for electrical performance, mechanical construction, and interoperability. Certified cables undergo rigorous testing to ensure reliable operation at advertised specifications, providing assurance of compatibility with VESA-certified displays and source devices.
Can I use this cable for multi-monitor setups?
Yes, this cable supports Multi-Stream Transport (MST), allowing daisy-chaining of multiple compatible DisplayPort monitors from a single graphics card output. When combined with Display Stream Compression 1.2, it maintains high resolutions across multiple displays without requiring additional graphics card outputs.
How durable is the cable construction?
The cable features a thermoplastic elastomer jacket tested to withstand over 5000 insertion cycles and 600 bend cycles at 120-degree angles. Molded strain relief absorbs stress from frequent movement, while gold-plated connectors resist corrosion. The construction meets RoHS environmental standards with halogen-free materials.
What devices are compatible with this DisplayPort cable?
This cable works with AMD Radeon Vega Frontier/Pro WX series graphics cards (2100, 3100, 5100, 7100, W5500, Pro Duo 2000), NVIDIA Quadro GP100, GV100, and RTX 4000 series, Dell XPS 11th Gen laptops, HP Z2 G8 workstations, and any DisplayPort-equipped monitors, TVs, projectors, or digital signage players.
What resolution or display format is specified?
It features a display specification of 7680 x 4320, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
