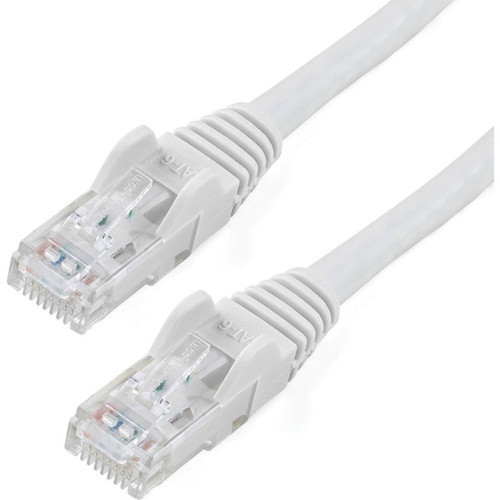

StarTech. com N6PATCH10WH 10ft CAT6 Ethernet Patch Cable - White Snagless UTP 650MHz 10Gbps 100W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable operates at a 650MHz frequency and uses unshielded twisted pair (UTP) construction, complying with ANSI/TIA-568-2.D standards for reliable performance. The 50-micron gold plating on the connectors minimizes signal loss and prevents rust, ensuring long-term connectivity in demanding network setups.
The cable is ETL verified and UL certified (E132276-A), meeting rigorous safety and performance benchmarks. It supports IEEE 802.3bt PoE standards, reducing cable heating and enabling efficient power delivery to compatible devices across its 10-foot length.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Ethernet cable combines high-performance networking with robust construction, offering several advantages for IT professionals and network installers.
High-Speed Connectivity
Supports multi-gigabit speeds up to 10 Gbps for bandwidth-intensive applications, with backward compatibility to Cat5e and earlier standards.
- 10 Gbps data transfer
- Backward compatible
- 650MHz bandwidth
PoE Ready
Delivers up to 100W of power to connected devices, eliminating the need for separate power adapters in VoIP, security, and wireless access point installations.
- IEEE 802.3bt compliant
- Reduced cable heating
- UL rated wiring
Durable Design
Features molded snagless boots for strain relief, a flexible PVC jacket resistant to bending and fraying, and corrosion-resistant gold-plated connectors.
- Snagless molded boots
- CMG-rated jacket
- Gold-plated connectors
Deployment / Use Cases
This 10-foot CAT6 patch cable is versatile enough for various networking scenarios, from office workstations to specialized equipment connections.
In corporate environments, it connects computers, printers, and switches in server rooms or cubicle setups. For security systems, it powers and transmits data to IP cameras and access control devices. In VoIP deployments, it provides both connectivity and power to desk phones, reducing cable clutter and installation complexity.
Office Networking
Connect workstations to wall outlets or distribution panels in standard office configurations, with the white color blending into modern interiors.
PoE Device Integration
Power and connect VoIP phones, wireless access points, and security devices without additional power cables, simplifying installation and maintenance.
Highlights
- 10-foot length provides flexible placement between network devices and outlets
- CAT6 UTP construction supports 10 Gbps speeds up to 160 feet
- 100W PoE capability powers VoIP phones and security cameras
- Gold-plated RJ45 connectors ensure reliable connections and corrosion resistance
- Snagless molded boots prevent accidental disconnections in tight spaces
- 24 AWG stranded copper conductors deliver stable signal transmission
- White PVC jacket offers durability and blends with office decor
- ETL verified and UL certified for safety and performance compliance
- Backward compatible with Cat5e and earlier Ethernet standards
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH10WH |
| Brand Name | StarTech.com |
| Product Model | N6PATCH10WH |
| Product Name | 10 ft White Snagless Cat6 UTP Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Wall Outlet,Distribution Panel,Security Device,VoIP Device,Hub |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Molded,Strain Relief,Damage Resistant,Corrosion Resistant,Stranded,Fray Resistant,Rust Resistant,Bend Resistant,PoE,Flexible |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this CAT6 cable supports?
This StarTech.com CAT6 patch cable supports data transfer rates up to 10 Gbps. It is rated for 650MHz bandwidth and can maintain 10 Gbps speeds up to 160 feet, making it suitable for high-bandwidth applications like video streaming, large file transfers, and network backups.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W. It uses 24 AWG stranded copper conductors and UL rated wiring (E132276-A) that complies with IEEE 802.3bt standards, reducing cable heating while delivering power to devices like VoIP phones, security cameras, and wireless access points.
What type of connectors does this patch cable have?

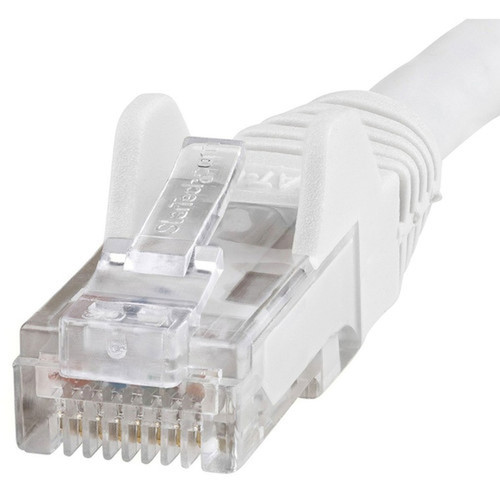

Both ends feature RJ-45 male connectors with 50-micron gold plating. The connectors are designed with snagless molded boots that provide strain relief and prevent the retention clips from catching during installation or removal in constrained spaces.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable. It does not have additional shielding layers, which makes it more flexible and easier to install in typical office environments where electromagnetic interference is not a significant concern.
What devices are compatible with this Ethernet cable?
The cable is compatible with network devices, workstations, wall outlets, distribution panels, security devices, VoIP devices, and hubs. It works with any equipment featuring standard RJ45 ports and is backward compatible with Cat5e and earlier Ethernet standards.
What warranty comes with this StarTech.com patch cable?
StarTech.com provides a lifetime warranty for this CAT6 patch cable. This warranty covers defects in materials and workmanship for the life of the product, ensuring long-term reliability and peace of mind for your network infrastructure investments.
