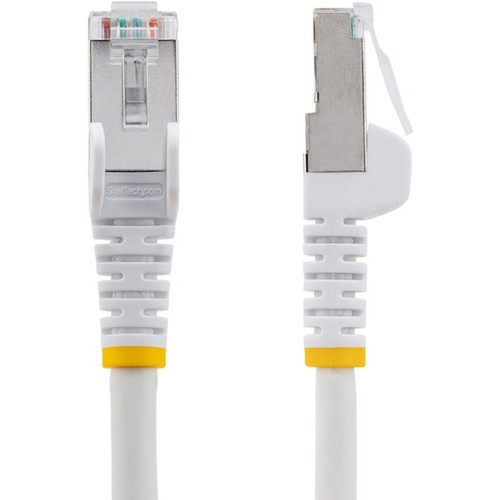

StarTech. com NLWH-10F-CAT6A-PATCH 10ft CAT6a Ethernet Cable - White LSZH S/FTP Shielded 10 GbE 100W PoE++ Snagless RJ-45 Patch Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6a cable operates at 500 MHz bandwidth and supports multi-gigabit Ethernet standards including 1/2.5/5/10 Gbps connections. The S/FTP shielding configuration combines individual foil-shielded twisted pairs with an overall braided shield, providing comprehensive protection against electromagnetic interference (EMI/RFI) and crosstalk. This design minimizes Near-End Crosstalk (NEXT) and return loss for cleaner signal transmission.
The cable's construction includes 27 AWG stranded copper wires that maintain flexibility while delivering full PoE++ power capacity. The molded snagless boots prevent latch damage during installation and removal, with strain relief features that protect the connector termination points. Contact plating utilizes gold for corrosion resistance and reliable electrical connections across repeated mating cycles.
Key Product Advantages
This Ethernet cable combines multiple performance and safety features that distinguish it from basic patch cords. The shielded design ensures reliable operation in electrically noisy environments, while the LSZH jacket provides enhanced fire safety by producing less dense, less corrosive smoke than PVC alternatives.
Enhanced Signal Integrity
The S/FTP shielding architecture protects against external interference while minimizing internal crosstalk between pairs. This maintains signal quality over the full 10-foot length at 10 GbE speeds, with testing verification to ANSI/TIA-568.2-D standards.
- Foil-shielded individual pairs
- Braided overall shield
- Gold-plated RJ-45 contacts
- Minimized NEXT and return loss
Power Over Ethernet Ready
Full support for IEEE 802.3bt PoE++ delivers up to 100W of power alongside data transmission. The 100% copper stranded conductors ensure stable power delivery without voltage drop issues common with aluminum alternatives.
- IEEE 802.3bt Type 4 compliant
- Supports all lower PoE standards
- Stranded copper for flexibility
- 27 AWG gauge for current capacity
Deployment / Use Cases
This CAT6a patch cable is ideal for connecting network equipment in office environments, data centers, and commercial installations where both high-speed data and PoE power are required. The 10-foot length provides flexibility for rack-to-rack or equipment-to-patch-panel connections while maintaining performance specifications.
Common applications include connecting PoE++ devices such as high-power wireless access points, PTZ security cameras, LED lighting systems, and thin clients. The LSZH jacket makes it suitable for plenum spaces and areas with strict fire safety requirements, while the white color blends with modern office aesthetics. The cable backward-compatibility with Cat6 and earlier standards ensures it can integrate into existing network infrastructures.
Data Center & Office Networks
Connect switches, routers, and servers with reliable 10 GbE performance. The shielded construction prevents interference in dense equipment racks.
PoE Device Installation
Power and connect high-demand devices like enterprise Wi-Fi 6/6E access points, advanced security systems, and digital signage displays.
Physical Profile
The cable features a white LSZH jacket that provides both aesthetic appeal and safety benefits. The low-smoke, zero-halogen material reduces toxic fume emission in fire situations while maintaining flexibility for installation. With a weight of approximately 3.90 oz (110.56 g), the cable is lightweight yet durable, featuring bend-resistant construction that withstands repeated routing and handling. The snagless molded boots protect the RJ-45 latches from damage during cable management in tight spaces.
- Weight
- 3.90 oz (110.56 g)
- Length
- 10 ft (3.05 m)
Highlights
- 10 GbE data transfer speed for multi-gigabit network connections
- 100W PoE++ support (IEEE 802.3bt) for high-power devices
- S/FTP shielded construction with foil and braid for EMI/RFI protection
- LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
- 10-foot length (3.05 m) for flexible patch panel connections
- Snagless molded RJ-45 connectors with gold-plated contacts
- 100% stranded copper conductors (27 AWG) for reliable power delivery
- ETL verified and ANSI/TIA-568.2-D standards compliant
- White color with bend-resistant, damage-resistant construction
- Lifetime warranty and RoHS/WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-10F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 3.90 oz (110.56 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this CAT6a cable supports?
This StarTech.com CAT6a Ethernet cable supports data transfer rates up to 10 Gbit/s (10 GbE) at distances up to its full 10-foot length. It is backward compatible with lower-speed standards including 1, 2.5, and 5 Gbps Ethernet, making it suitable for multi-gigabit network upgrades while maintaining compatibility with existing equipment.
How much Power over Ethernet (PoE) can this cable deliver?
This cable supports up to 100W of Power over Ethernet, compliant with the IEEE 802.3bt PoE++ standard (Type 4). It can power high-demand devices such as enterprise wireless access points, PTZ cameras, and thin clients while simultaneously carrying data. The 100% stranded copper conductors ensure stable power delivery without the voltage drop issues associated with aluminum-clad alternatives.
What does S/FTP shielding mean for this Ethernet cable?
S/FTP refers to Shielded/Foiled Twisted Pair construction. Each of the four twisted pairs is individually wrapped in foil shielding, and an overall braided shield covers all pairs. This dual-layer shielding provides comprehensive protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean signal transmission in electrically noisy environments common in data centers and commercial installations.
What are the advantages of the LSZH jacket material?
The Low Smoke Zero Halogen (LSZH) jacket produces less dense smoke and no corrosive halogen gases when exposed to fire, improving safety in enclosed spaces like plenums, risers, and office buildings. Unlike PVC jackets, LSZH reduces toxic fume emission while maintaining cable flexibility and durability. This makes the cable suitable for installations with strict fire safety regulations.
Are the RJ-45 connectors on this cable snagless?
Yes, this cable features molded snagless boots on both RJ-45 connectors. The boot design protects the connector latches from catching on other cables or equipment during installation and removal, preventing damage to the latch mechanism. This is particularly valuable in dense patch panels where cables are frequently moved or rearranged.
What certifications does this CAT6a cable have?
This cable is ETL verified and tested to meet ANSI/TIA-568.2-D standards for Category 6a performance. It complies with environmental directives including RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment). The lifetime warranty provides long-term assurance of quality and reliability for network infrastructure deployments.
