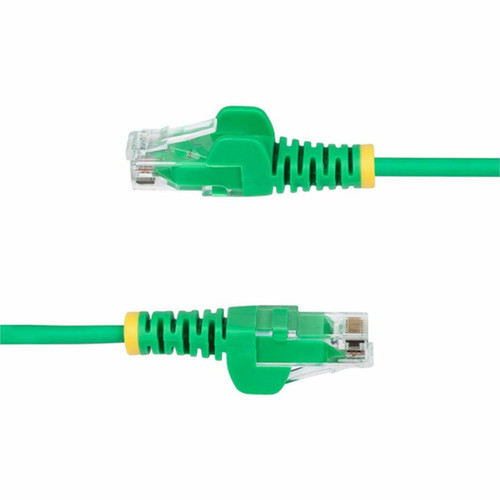

StarTech. com N6PAT10GNS Slim CAT6 Ethernet Cable - 10ft Green - Snagless RJ45 - UTP - LSZH - 28AWG Bare Copper - Fluke Tested
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable complies with ANSI/TIA-568-C.2 standards, guaranteeing reliable performance for network applications. The 28AWG stranded bare copper conductors provide optimal conductivity, while the gold-plated contacts ensure corrosion resistance and stable electrical connections over time.
The cable supports Power over Ethernet (PoE++) up to 90W in compliance with IEEE 802.3bt Type 4 specifications, making it suitable for powering IP cameras, wireless access points, and other PoE devices. With 4 twisted pairs (8 conductors total) and optimized near-end crosstalk (NEXT) performance, it maintains signal integrity even in high-density installations.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This slim CAT6 cable combines space-saving design with robust construction for demanding network environments. The reduced cable diameter improves airflow between devices and simplifies cable management in racks and patch panels.
Enhanced Safety Features
The LSZH jacket emits minimal toxic fumes if combusted, making this cable suitable for installations in enclosed spaces, data centers, and areas with limited ventilation.
- Flame retardant
- Low smoke emission
- Zero halogen content
Durability & Reliability
Constructed with wear-resistant materials and strain relief features, this cable withstands repeated connections and disconnections while maintaining performance.
- Snag-free design
- Strain relief
- Flexible jacket
Deployment / Use Cases
This slim CAT6 patch cable is ideal for high-density network closets where space optimization is critical. The reduced diameter allows for more cables in standard cable management systems while maintaining proper airflow between devices.
The cable reliably connects network devices in office environments, data centers, and commercial installations. It's particularly well-suited for connecting patch panels to switches, routers to workstations, and PoE devices such as IP cameras, VoIP phones, and wireless access points.
Network Infrastructure
Use in standard network racks and patch panels where space constraints require slim-profile cabling without sacrificing performance.
PoE Applications
Deliver both data and power to PoE++ devices up to 90W, including security cameras, access points, and digital signage.
Physical Profile
The cable features a distinctive green LSZH jacket that simplifies identification in complex installations. With a compact 3.6mm outer diameter and flexible construction, it routes easily through cable trays, conduits, and tight spaces. The snagless boot design protects the RJ45 connectors during installation and prevents accidental disconnection.
- Weight
- 2.20 oz (62.37 g)
- Length
- 10 ft (3.05 m)
Highlights
- 10-foot slim CAT6 Ethernet cable with 36% slimmer diameter
- Snagless RJ45 connectors with gold-plated contacts
- UTP (Unshielded Twisted Pair) shielding
- LSZH (Low-Smoke Zero Halogen) jacket for safety
- 28AWG pure bare copper conductors
- Supports 1 Gbps data transfer and PoE++ up to 90W
- Fluke tested for guaranteed CAT6 performance
- Green color for easy identification
- Backward compatible with CAT5e/5 networks
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PAT10GNS |
| Brand Name | StarTech.com |
| Product Line | Slim |
| Product Name | Slim Cat6 Ethernet Cable - LSZH |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 10 ft (3.05 m) |
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
| Connector Type on First End | RJ-45 Network |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | LSZH |
| Device Supported | Network Device,Rack,Patch Panel,PoE Switch,IP Camera |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Features | Flame Retardant,Flexible,Near End Cross Talk (NEXT),PoE,PoE++,Snag Free,Strain Relief,Stranded,Wear Resistant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Product Material | Bare Copper |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the advantage of a slim CAT6 cable compared to standard CAT6?
Slim CAT6 cables have a 36% smaller diameter than standard CAT6 cables, providing greater flexibility and easier routing in tight spaces. This design improves cable management in high-density installations, enhances airflow between devices, and allows more cables to fit in standard cable management systems while maintaining full CAT6 performance specifications.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 90W in compliance with IEEE 802.3bt Type 4 specifications (PoE++). It can deliver both data and power to compatible devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment, eliminating the need for separate power cables.
What does LSZH jacket mean and why is it important?
LSZH stands for Low-Smoke Zero Halogen, a jacket material that emits minimal toxic fumes and smoke if combusted. This makes the cable safer for use in enclosed spaces, poorly ventilated areas, and data centers where fire safety is a concern. LSZH cables are often required in commercial and public installations for enhanced safety compliance.
Is this cable backward compatible with older network standards?
Yes, this CAT6 cable is fully backward compatible with CAT5e and CAT5 networks. It will work with any device that uses RJ45 connectors, automatically negotiating to the highest speed supported by both connected devices. The cable has been Fluke tested to ensure it meets CAT6 specifications while maintaining compatibility with previous standards.
What applications is this cable best suited for?
This slim CAT6 cable is ideal for high-density network closets, data centers, office environments, and commercial installations where space optimization is important. It works well for connecting patch panels to switches, routers to workstations, and powering PoE devices like IP cameras and wireless access points. The green color also helps with cable identification in complex setups.
What warranty comes with this Ethernet cable?
StarTech.com provides a lifetime limited warranty for this CAT6 Ethernet cable. This warranty covers defects in materials and workmanship for the life of the product, demonstrating the manufacturer's confidence in the cable's durability and performance under normal use conditions.
