Product Features
Technical Overview
This expansion card operates on a PCI Express 2.0 x2 host interface, providing sufficient bandwidth for ten SATA III connections. It adheres to Serial ATA/600 (SATA 6Gbps) specifications and maintains backward compatibility with earlier SATA generations, though at reduced performance levels. The card supports the AHCI 1.4 specification and is compatible with ATA and ATAPI devices.
The controller does not include built-in RAID functionality, allowing it to work seamlessly with software-based storage management systems across all supported platforms. This approach ensures broad motherboard compatibility without requiring PCIe bifurcation support.
Relevant factors for this section include Host Interface, Controller Type, RAID Supported, Total Number of SATA Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SATA expansion card delivers exceptional value through its combination of high port density, broad compatibility, and straightforward installation. The inclusion of both full-profile and low-profile brackets ensures compatibility with standard desktop towers and smaller form factor systems.
High-Density Connectivity
Ten SATA ports on a single card eliminate the need for multiple expansion cards or external enclosures, simplifying cable management and reducing slot consumption in multi-drive configurations.
- Stacked connector design maximizes space efficiency
- Supports up to ten drives simultaneously
- Ideal for storage servers and workstations
Cross-Platform Compatibility
Native driver support across Windows, macOS, and Linux operating systems ensures reliable performance in heterogeneous IT environments without requiring additional driver downloads in most cases.
- Plug-and-play detection on supported OS versions
- Works with built-in storage management tools
- No proprietary software required
Deployment / Use Cases
This SATA expansion card serves multiple roles in professional and enthusiast computing environments. Its ten-port configuration makes it particularly valuable for storage servers, media editing workstations, and backup systems where high drive counts are necessary.
In desktop workstations, the card can expand storage beyond motherboard limitations for video editors, photographers, and data analysts working with large files. For home servers and NAS builds, it enables cost-effective expansion using consumer-grade SATA drives while maintaining good performance through the 6Gbps interface.
Storage Server Expansion
Add ten additional drives to existing servers for expanded capacity, backup targets, or tiered storage configurations without replacing entire systems.
Workstation Storage Pooling
Create large storage pools using Windows Storage Spaces, macOS RAID Assistant, or Linux mdadm for professional media workflows and data-intensive applications.
Physical Profile
The card features a standard plug-in card form factor with dimensions of 5.50 inches in length, 2.10 inches in width, and 0.60 inches in height. This compact profile ensures compatibility with most desktop and server chassis while providing adequate space for the ten SATA connectors. The lightweight design at 2.65 ounces minimizes stress on the PCIe slot during installation and transport.
- Width
- 2.10" (53.34 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 2.65 oz (75 g)
- Length
- 5.50" (139.70 mm)
What's in the Box
The package includes everything needed for installation in both standard and small form factor systems.
Highlights
- Adds ten SATA III 6Gbps ports via single PCIe x4 slot
- ASM1062 controller with Port Multiplier and NCQ support
- Compatible with Windows 7 through 11, Windows Server 2012 R2 through 2022, macOS 10.10+, and Linux 2.6.32+

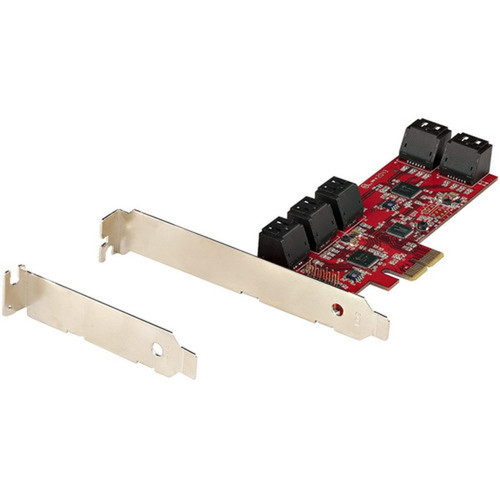

- Includes both full-profile and low-profile brackets for flexible installation
- Supports software storage management (Storage Spaces, RAID Assistant, mdadm)
- Backward compatible with SATA II and SATA I devices
- RoHS and WEEE compliant for environmental responsibility
- Backed by 2-year StarTech.com warranty with North American technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 10P6G-PCIE-SATA-CARD |
| Brand Name | StarTech.com |
| Product Name | PCIe SATA Card |
| Product Type | SATA Controller |
| Technical Information | |
| Host Interface | PCI Express 2.0 x2 |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Device Supported | Server |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32 |
| Interfaces/Ports | |
| Total Number of SATA Ports | 10 |
| Number of SATA Ports (Internal) | 10 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 0.60" (15.24 mm) |
| Width | 2.10" (53.34 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 2.65 oz (75 g) |
| Miscellaneous | |
| Package Contents | PCIe SATA Card Full-Profile Bracket (Installed) Low-Profile Bracket Quick-Start Guide |
| Platform Supported | PC,Mac,Linux |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What PCIe slot does this SATA expansion card require?
The card requires a PCIe x4 slot (mechanical x16 compatible) and operates on the PCI Express 2.0 x2 interface. It draws power directly from the PCIe slot, so no additional power connectors are needed. The card is compatible with both full-profile and low-profile chassis through the included brackets.
Does this card support hardware RAID configurations?
No, this card does not include built-in RAID functionality. It is designed to work with software-based storage management solutions native to each operating system, such as Windows Storage Spaces, macOS RAID Assistant, or Linux mdadm. This approach ensures broader compatibility across different motherboards and systems.
What operating systems are supported by this SATA expansion card?
The card supports Windows 7, 8, 8.1, 10, and 11; Windows Server 2012 R2, 2016, 2019, and 2022; macOS 10.10 Yosemite through 13.0 Ventura; and Linux kernel 2.6.32 and later. Most modern operating systems include native drivers, though specific distributions may require additional configuration.
What is the maximum bandwidth available across all ten SATA ports?
The PCIe 2.0 x2 interface provides up to 10 Gbps of total bandwidth, which is shared across all ten SATA ports. Each individual port supports SATA III 6Gbps speeds, but simultaneous full-speed operation across all ports would be limited by the PCIe interface bandwidth. For typical multi-drive workloads, this bandwidth is sufficient for most applications.
Can I use this card in a small form factor or low-profile computer case?
Yes, the package includes both a pre-installed full-profile bracket and an additional low-profile bracket. The low-profile bracket allows installation in smaller cases that require half-height expansion cards. The card's compact dimensions (5.50" x 2.10" x 0.60") ensure compatibility with most small form factor chassis.
What types of drives are compatible with this expansion card?
The card supports both SATA hard disk drives (HDDs) and solid-state drives (SSDs) that use the standard SATA interface. It is compatible with SATA III (6Gbps), SATA II (3Gbps), and SATA I (1.5Gbps) devices, though earlier generations will operate at their native speeds. The card also supports ATA and ATAPI devices such as optical drives.
