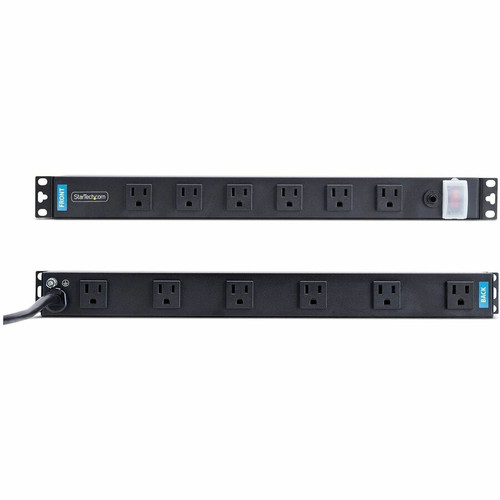

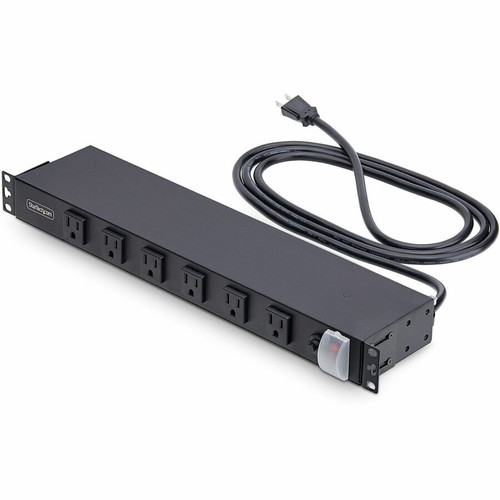

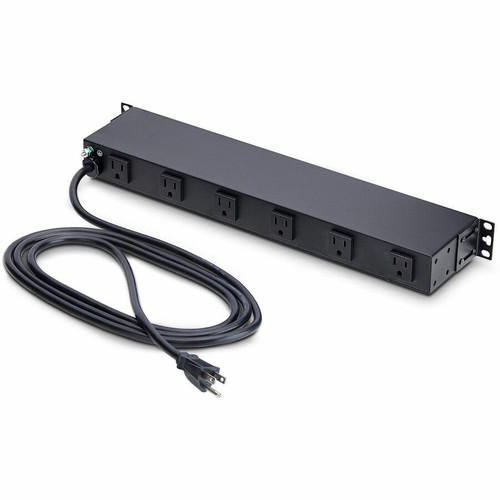

StarTech.com 1215B8H-RACK-PDU-RA 12-Outlet Rackmount PDU - 1U - 120V - 15A - 1.50 kW - Horizontal/Vertical Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rackmount PDU delivers 1.50 kW load capacity with 120V AC input and 120V/125V AC output, supporting a 15A input current. The unit incorporates a user-resettable 15A circuit breaker that safeguards connected devices from overloads, providing essential protection for sensitive IT equipment. An LED status indicator offers clear visual confirmation of power delivery status.
The electrical design ensures stable power distribution across all 12 NEMA 5-15R outlets, with the right-angle configuration maximizing outlet accessibility in confined rack spaces. The 1 x NEMA 5-15P input plug connects directly to standard North American power sources, while the 7.9-foot cord length accommodates various rack placement scenarios.
Relevant factors for this section include Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This rackmount PDU combines practical outlet management with robust protection features for dependable power distribution in professional IT environments.
Optimized Outlet Access
Right-angle NEMA 5-15 outlets prevent bulky power adapters from blocking adjacent plugs, allowing full utilization of all 12 outlets without wasted space.
- Reduces cable strain
- Supports clean routing
- Maximizes outlet accessibility
Flexible Mounting Options
The 1U form factor installs horizontally or vertically on EIA-310 19" racks or cabinets over 4 inches deep using the included 4-way mounting brackets.
- Horizontal/Vertical orientation
- 19" rack compatible
- Includes mounting hardware
Equipment Protection
A user-resettable 15A circuit breaker safeguards connected devices from overloads, while the illuminated switch with protective cover prevents accidental shutdowns.
- Overload protection
- User-resettable breaker
- Protected switch cover
Deployment / Use Cases
This 12-outlet rackmount PDU is engineered for small to mid-sized IT environments requiring organized power distribution. The 1U form factor and flexible mounting options make it suitable for various rack configurations in server rooms, data centers, and office IT closets.
The right-angle outlet design and 7.9-foot power cord support efficient cable management in space-constrained racks. IT professionals deploy this PDU for edge computing setups, on-premises server racks, AV equipment installations, and network infrastructure deployments where reliable power distribution is critical for continuous uptime.
Server Rack Power Distribution
Provides centralized 120V power for up to 12 servers, switches, or other rack-mounted equipment in data center and server room environments.
Office IT Infrastructure
Organizes power distribution for network equipment, workstations, and peripherals in office server closets and IT work areas.
Physical Profile
This PDU features a compact 1U rack height design measuring 1.70" (43.18 mm) in height, 3.70" (93.98 mm) in width, and 18.80" (477.52 mm) in length. The black powder-coated steel construction ensures durability in professional environments while maintaining a clean, professional appearance. With an approximate weight of 3.57 lb (1618.76 g), the unit is lightweight yet robust enough for stable rack mounting.
- Width
- 3.70" (93.98 mm)
- Height
- 1U
- Weight
- 3.57 lb (1618.76 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
This PDU ships complete with all necessary mounting hardware for immediate installation in standard 19" racks.
Highlights
- 12 NEMA 5-15R outlets with right-angle design for maximum accessibility
- 1.50 kW load capacity with 120V AC input and 15A circuit breaker protection
- 1U rack height with horizontal/vertical mounting on 19" EIA-310 racks
- User-resettable 15A circuit breaker safeguards connected equipment
- 7.9-foot power cord provides flexibility for distant AC outlets
- Rugged SPCC steel housing with powder-coated black finish
- LED status indicator for clear power delivery confirmation
- TAA-compliant and UL listed for regulatory compliance
- Includes complete mounting hardware for immediate installation
- 2-year limited warranty with lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 1215B8H-RACK-PDU-RA |
| Brand Name | StarTech.com |
| Product Name | 1215B8H-RACK-PDU-RA |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Features | LED Status Indicator |
| Load Capacity (VA) | 1.50 kW |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC,125 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable,Cabinet-mountable |
| Form Factor | Rack,Horizontal |
| Rack Height | 1U |
| Cord Length | 7.9 ft (2.40 m) |
| Height | 1.70" (43.18 mm) |
| Width | 3.70" (93.98 mm) |
| Length | 18.80" (477.52 mm) |
| Weight (Approximate) | 3.57 lb (1618.76 g) |
| Miscellaneous | |
| Package Contents | 1215B8H-RACK-PDU-RA 2 x Mounting Brackets (Pre-Installed) 4 x M5 Cage Nuts 4 x M5x12mm Rack Screws 1 x Product Documentation |
| Application/Usage | Server Rack/Cabinet,Server Room,A/V Equipment,IT Equipment,Office,Data Center |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the load capacity of this rackmount PDU?
This StarTech.com rackmount PDU has a load capacity of 1.50 kW. It delivers 120V AC power through 12 NEMA 5-15R outlets, supporting a maximum input current of 15A. The 1.50 kW capacity makes it suitable for powering multiple servers, network switches, and other rack-mounted equipment in small to mid-sized IT environments.
How many outlets does this PDU have and what type are they?
This power distribution unit features 12 NEMA 5-15R outlets with a right-angle design. The right-angle configuration prevents bulky power adapters from blocking adjacent outlets, allowing full utilization of all 12 receptacles. The outlets deliver 120V/125V AC output and are compatible with standard North American plugs for servers, networking equipment, and other IT devices.
What rack mounting options are available for this PDU?
This 1U PDU installs horizontally or vertically on EIA-310 standard 19" racks or cabinets that are at least 4 inches deep. The unit includes 4-way mounting brackets that are pre-installed, along with 4 M5 cage nuts and 4 M5x12mm rack screws for secure attachment. The flexible mounting orientation allows installation in various rack configurations to optimize space and cable management.
What protection features does this PDU include?
This rackmount PDU incorporates a user-resettable 15A circuit breaker that protects connected equipment from overload conditions. The illuminated power switch includes a protective cover to prevent accidental shutdowns, while the LED status indicator provides clear visual confirmation of power delivery. These protection features help safeguard sensitive IT equipment in server racks and data center environments.
What is the length of the power cord and what plug type does it use?
The PDU includes a 7.9-foot (2.40-meter) power cord with a NEMA 5-15P plug on the input end. This cord length provides flexibility to reach distant AC outlets in rack installations, while the standard NEMA 5-15P plug connects directly to typical North American power sources. The adequate cord length supports various rack placement scenarios without requiring extension cords.
What certifications and compliance standards does this PDU meet?
This StarTech.com rackmount PDU is TAA-compliant for government procurement requirements and UL listed for electrical safety standards. It also meets Restriction of Hazardous Substances (RoHS) environmental compliance. These certifications ensure the PDU meets regulatory requirements for deployment in professional IT environments, including government, education, and enterprise installations.
