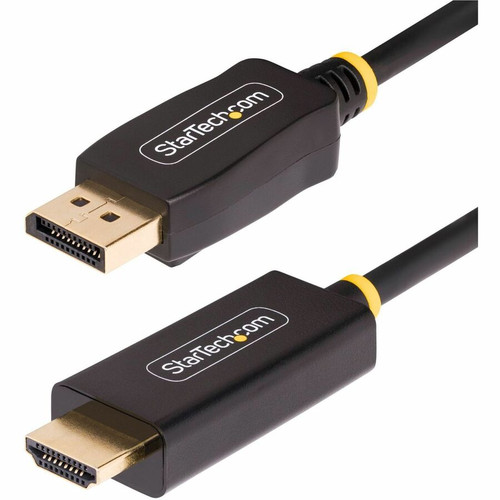

StarTech. com 12F-DP-HDMI-4K60-HDR StarTech DisplayPort to HDMI 2. 0b Active Adapter Cable - 12ft - 4K 60Hz HDR - 18Gbps - HDCP 2. 3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for robust signal integrity, this cable features adaptive receiver equalization to optimize input signals and amplify output for consistent display compatibility. The DisplayPort 1.4 male connector on one end and HDMI 2.0 male connector on the other provide a direct, secure connection between devices.
Key technical specifications include support for HDCP 1.4 and 2.3 content protection, ensuring seamless playback of protected media. The latching DisplayPort connector secures the connection to prevent accidental disconnection, while cage shielding provides effective EMI protection to maintain signal clarity in electrically noisy environments.
Relevant factors for this section include Cable Type, Cable Length, Outer Diameter, Jacket Material. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This adapter cable combines high-performance conversion with practical design benefits that enhance both visual quality and reliability in professional setups.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Superior Visual Experience, Plug-and-Play Reliability.
Superior Visual Experience
HDR support expands brightness and color ranges for more dynamic, realistic imagery. The 18Gbps bandwidth ensures smooth 4K 60Hz playback without compression artifacts.
- 4K at 60Hz with HDR
- Full 4:4:4/RGB color space
- 8-bit color with dithering
Plug-and-Play Reliability
No drivers or software required—compatible with any operating system and hardware platform. Utilizes GPU capabilities directly for efficient graphics processing with minimal CPU overhead.
- Universal hardware compatibility
- Works with integrated or dedicated GPUs
- Backward compatible with lower resolutions
Deployment / Use Cases
This cable is ideal for extending DisplayPort outputs from desktops, workstations, or external GPUs to HDMI displays, monitors, or audio/video devices. Its 12-foot length provides flexible placement options in office, studio, or home entertainment environments.
Common applications include connecting business workstations to 4K conference room displays, linking gaming PCs to HDR-capable TVs, or integrating external GPUs with high-resolution monitors for creative workflows. The active conversion ensures consistent performance even with longer cable runs where passive adapters might fail.
Professional Workspaces
Connect Dell, HP, or Lenovo desktops to 4K monitors for detailed design, coding, or financial analysis. HDCP 2.3 support allows secure presentation of protected content.
Multimedia & Entertainment
Enable HDR video playback from NVIDIA-based systems to home theater displays. The 7.1ch audio pass-through delivers immersive sound alongside high-quality video.
Highlights
- 12-foot active DisplayPort 1.4 to HDMI 2.0b adapter cable
- Supports 4K resolution at 60Hz with HDR for vibrant visuals
- 18Gbps bandwidth via HBR3 ensures full-color fidelity
- HDCP 1.4 and 2.3 compliance for protected content playback
- Gold-plated connectors with latching mechanism for reliable connections
- EMI shielding maintains signal integrity in noisy environments
- Plug-and-play operation—no drivers or software required
- Backward compatible with 4K 30Hz, 1080p, and lower resolutions
- Compatible with NVIDIA, Dell, HP, Lenovo, and other systems
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 12F-DP-HDMI-4K60-HDR |
| Brand Name | StarTech.com |
| Product Name | DisplayPort/HDMI Audio/Video Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort/HDMI |
| Cable Length | 12 ft (3.66 m) |
| Outer Diameter | 0.22" (5.50 mm) |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x DisplatPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Desktop Computer,Monitor,External GPU,Audio/Video Device |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 4096 x 2160,3840 x 2160,2560 x 1440 |
| Features | HDR Support,Active,High Bit Rate 3 (HBR3),HDCP 1.4,HDCP 2.3,EMI Protection,Latching Connector |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Brand Compatibility | NVIDIA,Dell,HP,Lenovo |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution and refresh rate this cable supports?
This cable supports up to 4K resolution (4096x2160 or 3840x2160) at 60Hz refresh rate. It also handles 2560x1440 and lower resolutions. The 18Gbps bandwidth via High Bit Rate 3 (HBR3) ensures smooth performance at these high settings without compression or lag.
Does this cable require external power or software drivers?
No, this is a plug-and-play active adapter cable that does not require external power, drivers, or software. It draws power directly from the DisplayPort source and works with any operating system. The integrated active circuitry ensures compatibility across different hardware platforms automatically.
What is the difference between this active cable and a passive adapter?
This active cable includes integrated circuitry that actively converts the DisplayPort signal to HDMI, ensuring reliable performance over its full 12-foot length. Passive adapters rely on the source device to handle conversion and may fail with longer cables or certain hardware combinations. The active design provides consistent signal integrity and broader compatibility.
Is this cable compatible with HDR content?
Yes, this cable fully supports HDR (High Dynamic Range) content. HDR expands the range of brightness levels and colors, resulting in more dynamic and realistic visuals. The cable maintains the necessary bandwidth and signal protocols to pass HDR metadata from source to display without degradation.
What types of devices can I connect with this cable?
You can connect DisplayPort 1.4 sources such as desktop computers, workstations, or external GPUs to HDMI 2.0b displays, monitors, TVs, or audio/video devices. It is compatible with systems from NVIDIA, Dell, HP, Lenovo, and other manufacturers. The cable also supports audio pass-through for 7.1-channel sound.
How does the latching connector improve reliability?
The latching DisplayPort connector features a secure locking mechanism that prevents accidental disconnection due to movement or vibration. This ensures a stable connection in professional environments where reliability is critical. The gold-plated contacts further enhance conductivity and resist corrosion over time.
