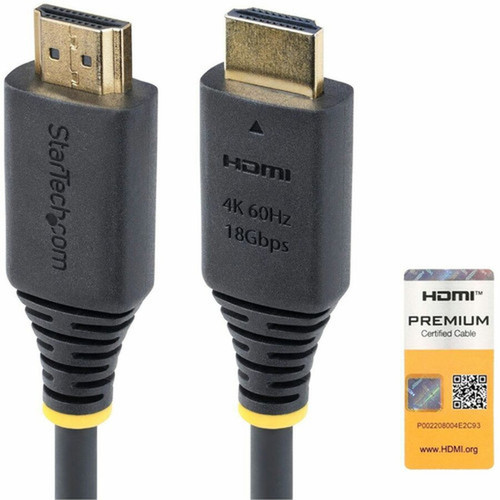

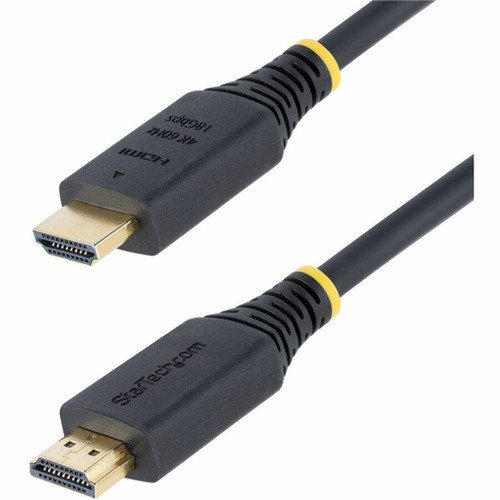

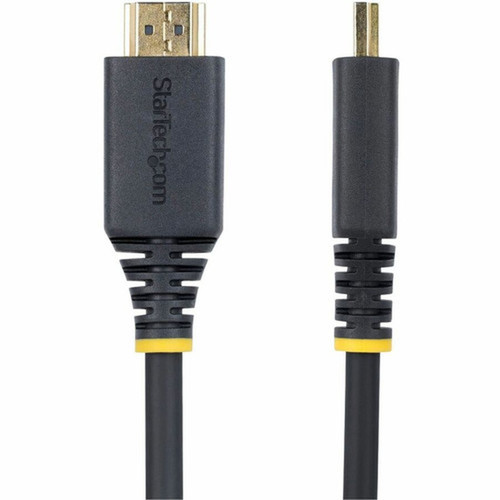

StarTech. com HDMI2-CABLE-4K60-12F Premium Certified HDMI 2. 0 Cable - 12ft - 3. 6m - 18Gbps - 4K 60Hz/1440p 144Hz - HDR10 - Gold-Plated - TPE Jacket
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This cable utilizes a 28 AWG conductor with full 18 Gbit/s bandwidth to handle high-resolution video formats without compression or signal loss. It supports resolutions up to 3840 x 2160 (4K UHD) at 60Hz and is optimized for high refresh rates, delivering 144Hz at 1440p resolution and 240Hz at 1080p for responsive gaming and motion clarity.
The technical design includes comprehensive shielding with an aluminum mylar foil and braided layer for enhanced EMI protection, minimizing interference for clean signal integrity. It incorporates the HDMI Ethernet Channel (HEC), allowing for a shared network connection over the cable, and supports Consumer Electronics Control (CEC) for single-remote operation of connected devices.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HDMI2-CABLE-4K60-12F combines certified performance with durable construction, offering a future-proof connection for modern AV equipment. Its certification ensures it meets rigorous testing standards for signal consistency, eliminating guesswork and compatibility issues often associated with uncertified cables.
Guaranteed Performance
As a Premium Certified HDMI cable, it is tested and verified to deliver the full 18Gbps bandwidth required for HDMI 2.0 features, including 4K 60Hz, HDR, and HDCP 2.2, ensuring reliable performance with any compatible source and display.
- Officially certified for HDMI 2.0 spec
- Ensures reliable 4K 60Hz playback
- Backward compatible with HDMI 1.4/1.3 devices
Durable Build Quality
Engineered for longevity, the cable features gold-plated connectors rated for over 10,000 insertions, a flexible yet durable TPE (Thermoplastic Elastomer) jacket that is halogen-free and RoHS compliant, and reinforced strain reliefs.
- Gold-plated connectors for optimal conductivity
- TPE jacket tested for 2,000 bending cycles
- Braided shield for superior EMI protection
Deployment / Use Cases
This high-speed HDMI cable is designed for scenarios demanding maximum bandwidth and signal fidelity. It is ideal for connecting 4K UHD displays, monitors, and projectors to media sources such as gaming consoles, Blu-ray players, AV receivers, and high-performance computing equipment.
For workstation and professional environments, it reliably connects 4K docking stations, external GPUs, and digital signage players to displays. Its length and performance also make it suitable for home theater setups, connecting soundbars and A/V receivers to televisions while supporting ARC for simplified audio routing.
High-Performance Computing & Gaming
Deliver high frame rates and low latency from gaming PCs or workstations to high-refresh-rate monitors. Supports 1440p at 144Hz for smooth gameplay and 4K at 60Hz for detailed creative work.
4K Home Theater & Professional AV
Connect 4K Blu-ray players, streaming devices, and set-top boxes to televisions and projectors with support for HDR10 and HDCP 2.2, ensuring full compatibility with premium 4K content services.
Physical Profile
The cable features a sleek, all-black design with a 7.3mm (0.29in) outer diameter, offering a balance of flexibility and durability. The TPE jacket provides excellent resistance to kinking and abrasion, maintaining signal integrity even in routed installations. The compact, gold-plated connectors are clearly marked with performance certifications for easy identification during setup.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.80 oz (221.13 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 7.80 oz (221.13 g)
- Length
- 12 ft (3.66 m)
Highlights
- Premium Certified HDMI 2.0 cable guaranteeing 18Gbps bandwidth and full specification compliance.
- Supports 4K UHD resolution at 60Hz and high refresh rates: 1440p at 144Hz, 1080p at 240Hz.
- Features HDR10 support for enhanced contrast and color, plus HDCP 2.2 for protected 4K content.
- Includes Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) for advanced connectivity.
- Durable construction with gold-plated connectors, braided EMI shielding, and a flexible TPE jacket.
- Tested for over 2,000 bending cycles and connectors rated beyond 10,000 insertions.
- Backward compatible with earlier HDMI versions (1.4, 1.3) for use with existing equipment.
- RoHS and WEEE compliant, halogen-free, and backed by a lifetime limited warranty.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMI2-CABLE-4K60-12F |
| Brand Name | StarTech.com |
| Product Name | 12ft HDMI Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 12 ft (3.66 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,TV,Monitor,Display,A/V Receiver,Soundbar,External GPU,Workstation,Docking Station |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | HDR10 Support,Audio Return Channel (ARC),HDCP 2.2,Flexible,Strain Relief,Durable,HDMI Ethernet Channel (HEC),Braided,EMI Protection,Consumer Electronics Control (CEC),Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Santoprene,TPE Rubber |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 7.80 oz (221.13 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does 'Premium Certified' mean for this HDMI cable?
Premium Certified is an official HDMI licensing program. This cable has been tested and certified to meet all performance requirements of the HDMI 2.0 specification, including the full 18Gbps bandwidth. This certification guarantees reliable performance for features like 4K at 60Hz, HDR, and HDCP 2.2, eliminating compatibility issues common with uncertified cables.
What is the maximum resolution and refresh rate this cable supports?
The cable supports up to 4K UHD (3840x2160) resolution at a 60Hz refresh rate. For higher refresh rate applications, it supports 1440p (QHD) resolution at 144Hz and 1080p (Full HD) at 240Hz. This makes it suitable for both detailed 4K media playback and high-frame-rate gaming or motion-intensive applications.
Does this HDMI cable support HDR?
Yes, this cable supports HDR10, one of the common High Dynamic Range formats. HDR10 enhances the visual experience by providing a wider range of contrast and color, resulting in more realistic highlights, deeper shadows, and richer colors when used with HDR-compatible source devices and displays.
Can I use this cable with older HDMI devices?
Yes, the HDMI2-CABLE-4K60-12F is fully backward compatible with earlier HDMI versions, including HDMI 1.4 and 1.3. It will work with older devices, but will operate at the maximum capabilities supported by the connected source and display. The advanced features like 4K 60Hz and HDR require both the cable and the connected devices to support HDMI 2.0 or later.
What are the benefits of the gold-plated connectors and TPE jacket?
The gold plating on the connectors provides superior corrosion resistance and maintains excellent electrical conductivity over thousands of insertions, ensuring a reliable connection. The Thermoplastic Elastomer (TPE) jacket is flexible, durable, and resistant to kinking and abrasion. It is also halogen-free and RoHS compliant, making it a safer and more environmentally conscious choice.
What devices is this cable compatible with?
This cable is designed for a wide range of audio/video devices. It is ideal for connecting 4K TVs, monitors, projectors, A/V receivers, soundbars, gaming consoles, media players, and computers (including workstations and laptops via docking stations). Its high bandwidth also makes it suitable for use with external GPUs and other high-performance video sources.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
