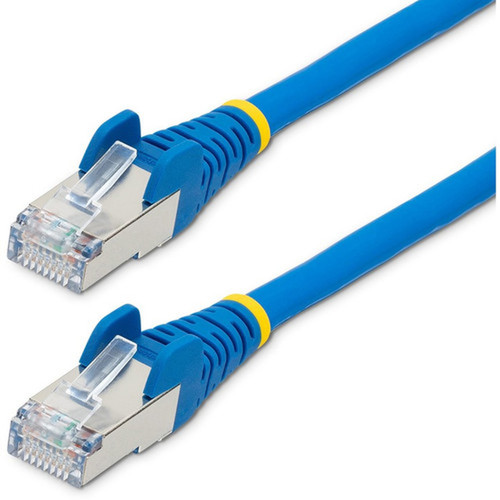

StarTech. com NLBL-12F-CAT6A-PATCH CAT6a Ethernet Patch Cable - 12ft Blue S/FTP Shielded 10GbE 100W PoE++ Snagless RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6a cable operates at a 500 MHz bandwidth, supporting data transfer rates up to 10 Gbit/s over distances up to 100 meters. It utilizes a 4-pair S/FTP (Shielded/Foiled Twisted Pair) design, where each twisted pair is individually foil-shielded, and an overall braided shield provides additional protection against electromagnetic and radio frequency interference. This dual-layer shielding minimizes near-end crosstalk and return loss, ensuring stable performance in high-density installations.
The 27 AWG 100% stranded copper conductors offer superior conductivity compared to copper-clad aluminum alternatives, delivering both error-free data transmission and stable PoE power. The cable is constructed with ethylene vinyl acetate and aluminum hydroxide materials, contributing to its bend-resistant and damage-resistant properties. It is Fluke tested and ETL verified to meet CAT6a performance specifications, backward compatible with CAT6 and earlier standards.
Key Product Advantages
This cable distinguishes itself through a combination of performance, durability, and safety features that cater to professional network deployments. Its S/FTP shielding ensures reliable operation in environments with high EMI/RFI, while the LSZH jacket enhances safety by producing less dense and corrosive smoke than traditional PVC jackets. The snagless design with strain reliefs protects connectors from physical damage, extending the cable's operational lifespan.
Enhanced Signal Integrity
The foil and braid shielding protects against external interference, maintaining clean signal transmission for critical applications like VoIP, video streaming, and data backups.
- Individual pair foil shielding
- Overall braided shield
- Gold-plated RJ-45 contacts
PoE++ Ready
Supports up to 100W of Power over Ethernet, compliant with IEEE 802.3bt (Type 4), enabling direct power to high-demand devices without separate power supplies.
- IEEE 802.3bt compliant
- Stable power delivery
- Reduces cable clutter
Durable & Safe Construction
The LSZH jacket is PVC-free and flame-retardant, while the stranded copper and reinforced design resist bending, crushing, and environmental stress.
- LSZH safety jacket
- Bend-resistant design
- Lifetime warranty
Deployment / Use Cases
This CAT6a patch cable is ideal for connecting network switches, routers, servers, and end-user devices in environments where high bandwidth and reliable PoE are required. Its 12-foot length makes it suitable for rack-to-rack connections, workstation setups, and linking PoE devices like wireless access points or security cameras within server rooms, offices, or industrial settings.
Common applications include backbone links in data centers, connections for 10GbE network adapters, and infrastructure for Power over Ethernet deployments in smart buildings. The blue color aids in cable identification and management, while the shielding ensures performance in areas with electrical machinery or dense cabling. It is also used for upgrading existing CAT5e or CAT6 installations to support higher speeds without rewiring entire runs.
Physical Profile

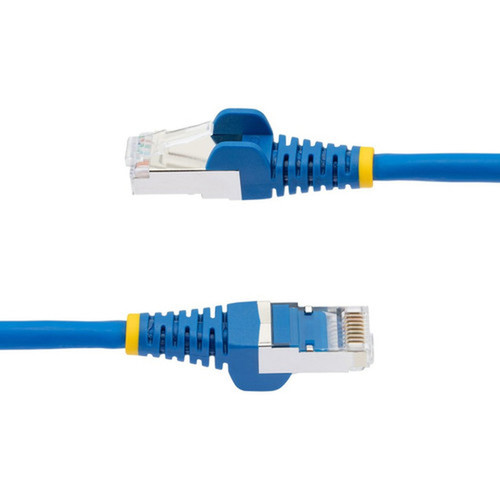

The cable features a sleek blue LSZH jacket that is both flexible and resistant to abrasion. With a weight of approximately 4.60 oz (130.41 g), it is lightweight yet robust, designed for easy handling and installation. The snagless molded boots on each RJ-45 connector provide latch protection and strain relief, preventing accidental unplugging and cable damage during frequent use. Its compact design allows for neat cable management in tight spaces, such as patch panels or cable trays.
- Weight
- 4.60 oz (130.41 g)
- Length
- 12 ft (3.66 m)
Highlights
- 12-foot CAT6a Ethernet patch cable with 10 Gb/s data transfer speed
- S/FTP shielding (foil & braid) for superior EMI/RFI protection
- Supports 100W PoE++ (IEEE 802.3bt) for high-power devices
- Low Smoke Zero Halogen (LSZH) jacket for enhanced fire safety
- Snagless molded boots with strain relief on RJ-45 connectors
- Gold-plated contacts ensure reliable connectivity and corrosion resistance
- 100% stranded copper conductors (27 AWG) for optimal performance
- ETL verified and compliant with ANSI/TIA-568.2-D standards
- Blue color for easy identification in cable management
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLBL-12F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 12 ft (3.66 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 4.60 oz (130.41 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed supported by this CAT6a cable?
This cable supports data transfer rates up to 10 Gbit/s (10GbE) at a bandwidth of 500 MHz, making it suitable for high-speed network applications like server connections, data backups, and multimedia streaming. It is backward compatible with CAT6, CAT5e, and earlier standards, ensuring versatility in mixed-environment deployments.
Does this cable support Power over Ethernet (PoE)?
Yes, it fully supports Power over Ethernet up to 100W, compliant with the IEEE 802.3bt standard (PoE++ Type 4). This allows it to deliver both data and power to devices such as wireless access points, IP cameras, and VoIP phones, reducing the need for separate power adapters and simplifying installations.
What does S/FTP shielding mean, and why is it important?
S/FTP stands for Shielded/Foiled Twisted Pair, indicating that each of the four twisted pairs is individually wrapped in foil, and an overall braided shield covers the entire cable. This dual-layer shielding protects against electromagnetic and radio frequency interference, ensuring stable signal integrity in environments with electrical noise, such as data centers or industrial settings.
What are the benefits of the LSZH jacket?
The Low Smoke Zero Halogen (LSZH) jacket is PVC-free and produces less dense, less toxic smoke compared to traditional PVC jackets in the event of a fire. This enhances safety in enclosed spaces like server rooms or plenum areas by reducing corrosive emissions and improving visibility during evacuation, while also being environmentally friendly.
Is this cable suitable for outdoor or direct burial use?
No, this is an indoor-rated patch cable designed for use in controlled environments like offices, data centers, and equipment rooms. It does not have the weatherproofing or UV resistance required for outdoor or direct burial applications. For outdoor setups, consider specifically rated outdoor Ethernet cables.
What warranty does this StarTech.com cable come with?
This cable includes a lifetime limited warranty from StarTech.com, covering defects in materials and workmanship for the duration of its use. This warranty reflects the product's durable construction and reliability, providing long-term peace of mind for network infrastructure investments.
