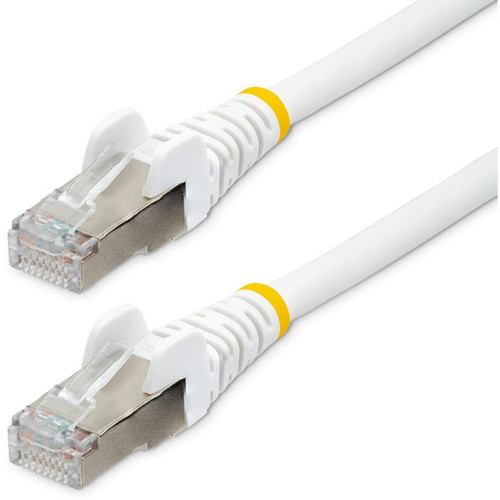

StarTech. com NLWH-12F-CAT6A-PATCH CAT6a Ethernet Patch Cable - 12ft White LSZH S/FTP Shielded 10GbE 100W PoE++ Snagless RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6a patch cable operates at 500 MHz bandwidth and supports data transfer rates up to 10 Gbit/s across its 12-foot length. The S/FTP shielding configuration combines individual foil-shielded twisted pairs with an overall braided shield, providing comprehensive protection against electromagnetic interference and crosstalk. The 27 AWG stranded copper conductors maintain signal integrity while delivering consistent PoE power.
The cable is tested to ANSI/TIA-568.2-D standards and verified by ETL, ensuring compliance with industry specifications for performance and safety. Four twisted pairs with minimized Near-End Crosstalk (NEXT) contribute to error-free transmission across multi-gigabit connections from 1Gbps to 10Gbps.
Key Product Advantages
This Ethernet cable combines multiple professional features that distinguish it from basic patch cords. The LSZH jacket material produces less dense and corrosive smoke than traditional PVC in case of fire, making it suitable for enclosed spaces and commercial installations. The comprehensive shielding system protects against both internal and external interference sources.
Enhanced Durability
The braided construction with strain reliefs resists damage from bending and repeated handling, while the snagless boot design prevents connector latch breakage during cable management.
- Damage resistant
- Bend resistant
- Latch protection
Power Delivery
100% stranded copper conductors ensure stable power transmission for PoE++ devices, supporting the latest IEEE 802.3bt standard for high-power applications like access points, cameras, and lighting.
- 100W PoE++
- Stranded copper
- IEEE 802.3bt compliant
Deployment / Use Cases
This shielded CAT6a patch cable is ideal for connecting network equipment in environments where signal integrity and power delivery are critical. Its 10GbE capability makes it suitable for backbone connections between switches, servers, and storage devices in data centers and server rooms.
The LSZH jacket and comprehensive shielding make this cable particularly valuable in commercial buildings, healthcare facilities, educational institutions, and industrial settings where EMI protection and fire safety are priorities. The 12-foot length provides flexibility for rack-to-rack connections or equipment-to-patch-panel installations.
Data Center Applications
Connect switches, routers, and servers with reliable 10GbE performance and PoE++ support for powered devices in rack environments.
Commercial Installations
Deploy in offices, schools, and hospitals where LSZH safety ratings and EMI protection ensure reliable network performance in sensitive environments.
Physical Profile
The cable features a clean white LSZH jacket that blends with modern office environments while providing enhanced fire safety characteristics. With an approximate weight of 4.60 oz (130.41 g), the cable maintains flexibility for easy routing through cable management systems. The snagless molded boots on both RJ-45 connectors include strain relief to prevent cable damage at connection points.
- Weight
- 4.60 oz (130.41 g)
- Length
- 12 ft (3.66 m)
Highlights
- CAT6a Ethernet patch cable supporting 10GbE data transfer rates
- 12-foot length (3.66 m) with white LSZH jacket for enhanced fire safety
- S/FTP shielding with foil and braid for maximum EMI/RFI protection
- Supports Power over Ethernet++ up to 100W (IEEE 802.3bt compliant)
- Gold-plated RJ-45 connectors with snagless molded boots
- 100% stranded copper conductors (27 AWG) for reliable power delivery
- Tested to ANSI/TIA-568.2-D standards and ETL verified
- RoHS and WEEE compliant with lifetime warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-12F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 12 ft (3.66 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 4.60 oz (130.41 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this CAT6a cable supports?
This StarTech.com CAT6a patch cable supports data transfer rates up to 10 Gbit/s (10GbE) at its full 12-foot length. It maintains this performance across the entire 500 MHz bandwidth, making it suitable for multi-gigabit network connections from 1Gbps to 10Gbps. The cable is backward compatible with Cat6, Cat5e, and earlier standards while providing enhanced performance for modern network equipment.
Does this Ethernet cable support Power over Ethernet?
Yes, this cable fully supports Power over Ethernet, including the latest PoE++ standard (IEEE 802.3bt) for devices requiring up to 100W of power. The 100% stranded copper conductors ensure stable power delivery alongside data transmission, making it ideal for connecting PoE devices like wireless access points, security cameras, VoIP phones, and lighting systems without separate power cables.
What does LSZH mean for the cable jacket?
LSZH stands for Low Smoke Zero Halogen, a jacket material that produces less dense smoke and no corrosive halogen gases when exposed to fire compared to traditional PVC cables. This makes the cable safer for use in enclosed spaces, ventilation systems, and commercial buildings where fire safety is a priority. The LSZH jacket is also PVC-free and environmentally compliant with RoHS and WEEE directives.
How does the S/FTP shielding protect the cable?
The S/FTP (Shielded/Foil Twisted Pair) shielding provides two layers of protection: each of the four twisted pairs is individually wrapped in foil, and an overall braided shield covers the entire cable. This configuration minimizes Near-End Crosstalk (NEXT) between pairs while protecting against external electromagnetic interference (EMI/RFI) from power cables, fluorescent lighting, and other electronic equipment, ensuring signal integrity in noisy environments.
What are the benefits of the snagless RJ-45 connectors?
The snagless molded boots on the RJ-45 connectors prevent the connector latch from catching on other cables, ports, or rack components during installation and removal. This design reduces the risk of broken latches that can render connectors unusable. The boots also include strain relief to protect the cable termination points from damage caused by bending or pulling, extending the cable's service life in frequently reconfigured environments.
Is this cable suitable for outdoor or industrial use?
While this cable features durable construction with LSZH jacket and comprehensive shielding, it is designed primarily for indoor use in commercial and data center environments. The cable is not rated for direct burial, prolonged UV exposure, or extreme temperature conditions. For outdoor or harsh industrial applications, specifically rated outdoor Ethernet cables with additional weatherproofing would be more appropriate.
