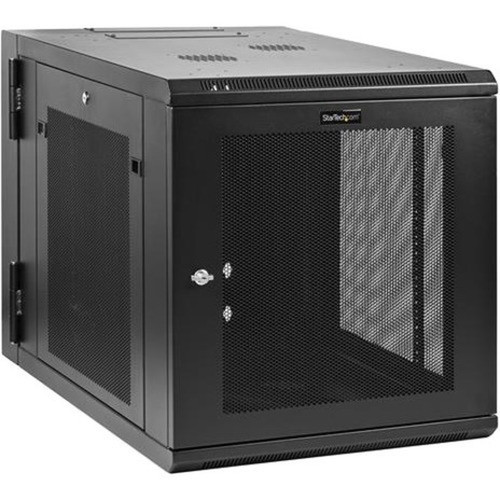

StarTech. com RK1232WALHM 12U Wall Mount Server Rack Cabinet - 24" Deep Hinged Vented Enclosure with Locking Doors
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall-mount rack cabinet delivers precise technical specifications tailored for professional IT deployments. The external dimensions measure 25.20 inches in height, 24 inches in width, and 33.60 inches in length, providing a compact footprint without sacrificing internal rack space. The 12U rack height offers ample vertical room for standard equipment, while the 23.80-inch rack depth ensures compatibility with deep servers and switches. The enclosure is EIA/ECA-310-E compliant, guaranteeing adherence to industry standards for rack mounting and interoperability.
The design incorporates practical features such as a 180-degree hinged front door that swings open fully for unobstructed rear access to mounted devices. The door and side panels are reversible and removable, allowing flexible configuration based on installation requirements. The locking mechanism secures equipment with included keys, and the fully assembled delivery eliminates setup time, arriving ready for immediate wall mounting and equipment installation.
Key Product Advantages
This server rack cabinet stands out with its combination of security, accessibility, and durability, making it an ideal choice for IT professionals managing network infrastructure. The lockable, hinged design ensures equipment protection while simplifying maintenance tasks, and the vented construction maintains optimal operating temperatures for critical hardware.
Enhanced Security & Access

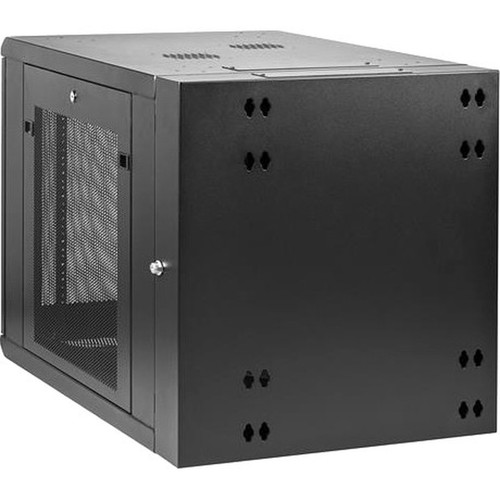

The lockable front door and side panels protect equipment from unauthorized access, while the 180-degree hinged door and removable panels provide full rear access for easy cable management and hardware servicing.
- Locking doors with included keys
- Reversible and removable panels
- 180-degree hinge for full access
Superior Cooling Design
Mesh front doors and side panels facilitate passive airflow, and the cabinet supports up to four optional 120mm fans for active cooling, preventing overheating in high-density deployments.
- Vented mesh panels
- Optional fan support
- Improved thermal management
Robust Build Quality
Made from SPCC cold-rolled steel, the cabinet offers a 198.42-pound weight capacity and a 4-post design for stability, ensuring long-term reliability in demanding environments.
- High-weight capacity
- 4-post support structure
- Durable steel construction
Deployment / Use Cases
The RK1232WALHM is versatile for various IT and networking scenarios where wall-mounted rack space is essential. Its adjustable depth and 12U capacity make it suitable for consolidating equipment in server rooms, network closets, or office environments, reducing clutter and improving organization.
Common applications include housing rackmount servers for small business infrastructure, organizing LAN switches and patch panels in data centers, and mounting audio/video equipment in control rooms. The enclosure is also effective in retail or warehouse settings for securing network hardware, and its locking features provide added security for sensitive equipment in shared or public spaces.
Server Room Consolidation
Ideal for mounting servers, switches, and patch panels in compact server rooms or network closets, maximizing vertical space while maintaining accessibility.
- Space-efficient wall mounting
- Organized cable management
- Secure equipment housing
Office & Retail IT Infrastructure
Perfect for small to medium businesses needing a secure rack for network equipment in offices, stores, or warehouses, with easy access for IT staff.
- Locking for security
- Vented for cooling
- Fully assembled for quick setup
Physical Profile
This rack cabinet features a sleek black finish that blends with professional IT environments. The steel and steel mesh construction provides a sturdy yet ventilated enclosure, with dimensions optimized for wall mounting without protruding excessively. The design includes integrated cable management options, and the reversible doors allow customization based on installation orientation. The compact footprint makes it suitable for tight spaces, while the robust build ensures it can support heavy equipment securely over time.
- Width
- 24" (609.60 mm)
- Depth
- 23.80" (604.52 mm)
- Height
- 25.20" (640.08 mm)
- Weight
- 198.42 lb (90000 g)
- Length
- 33.60" (853.44 mm)
What's in the Box
The cabinet ships fully assembled with all necessary hardware for immediate use. Package contents include:
Highlights
- 12U wall-mount server rack cabinet with 24-inch depth and adjustable mounting from 2.4 to 24 inches
- Fully assembled design with no assembly required, ready for immediate wall installation
- Locking front door and side panels with included keys for equipment security
- 180-degree hinged door and removable panels for easy rear access to mounted devices
- Vented mesh front doors and side panels to promote airflow and support optional fans
- Constructed from SPCC cold-rolled steel with a maximum weight capacity of 198.42 pounds
- 4-post design for enhanced stability and support of heavy rackmount equipment
- Includes a 1U shelf, cage nuts, screws, and hook-and-loop fastener for cable management
- EIA/ECA-310-E compliant and backed by a 5-year limited warranty
- Environmentally friendly with EU RoHS and REACH compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK1232WALHM |
| Brand Name | StarTech.com |
| Product Name | 12U Wall-Mount Server Rack Cabinet - 24 in. Deep - Hinged |
| Packaged Quantity | 1 Each |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | Server,LAN Switch,Patch Panel |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,Steel Mesh |
| Maximum Weight Capacity | 198.42 lb (90000 g) |
| Height | 25.20" (640.08 mm) |
| Width | 24" (609.60 mm) |
| Length | 33.60" (853.44 mm) |
| Rack Height | 12U |
| Rack Depth | 23.80" (604.52 mm) |
| Weight (Approximate) | 99.43 lb (45100 g) |
| Miscellaneous | |
| Package Contents | 1 x Wall-Mount Enclosure 1 x 1U Shelf 1 x Roll Of Hook-And-Loop Fastener 50 x 12-24 Cage Nuts 50 x 12-24 Screws 2 x Door Keys 2 x Side Panel Keys 1 x Instruction Manual |
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the rack height and depth of this cabinet?
This cabinet has a 12U rack height, providing space for twelve standard rack units of equipment. The rack depth is 23.80 inches (604.52 mm), with an adjustable mounting depth range from 2.4 to 24 inches to accommodate various server and switch sizes.
Does this server rack come fully assembled?
Yes, the RK1232WALHM ships fully assembled with no required assembly. It includes all necessary mounting hardware such as cage nuts, screws, and a shelf, allowing for immediate wall mounting and equipment installation upon delivery.
What security features does this rack cabinet offer?
The cabinet includes lockable front doors and side panels with two keys provided for each. This secures equipment from unauthorized access, making it suitable for shared or public environments where physical security is a priority.
How does the cabinet support cooling for installed equipment?
Vented mesh front doors and side panels facilitate passive airflow to prevent overheating. Additionally, the cabinet supports up to four optional 120mm fans (sold separately, model ACFANKIT12) for active cooling in high-density or high-heat deployments.
What is the maximum weight capacity of this wall-mount rack?
The maximum weight capacity is 198.42 pounds (90,000 grams). This robust capacity, supported by a 4-post design and steel construction, ensures the rack can safely hold heavy servers, switches, and other rackmount equipment.
What is included in the package with this server rack?
The package includes the wall-mount enclosure, a 1U shelf, a roll of hook-and-loop fastener for cable management, 50 cage nuts, 50 screws, two door keys, two side panel keys, and an instruction manual. All components are provided for complete setup.
What performance, throughput, or capacity detail stands out?
The listed power specification is 198.42 lb (90000 g), which helps position the unit for the right load level and installation role.
