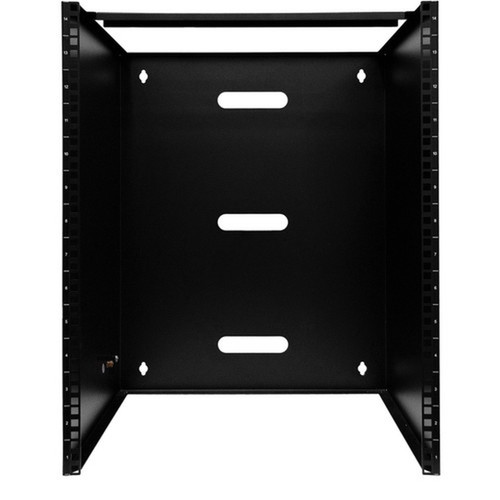

StarTech. com RACK-14U-14-BRACKET 14U Wall Mount Rack - 14in Deep - 19-inch Network Rack with Patch Panel Bracket for Switch/IT Equipment
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount rack features a robust 1/16-inch (1.5 mm) thick solid steel frame, providing a maximum weight capacity of 77 lbs (35 kg) to securely hold networking equipment. The rack dimensions are 24.80 inches in height, 19.60 inches in depth, and 14 inches in length, with a total weight of approximately 11.02 lbs (5000 g). The design includes predrilled wall mounting holes spaced 16 inches apart for standard stud alignment, ensuring straightforward installation in various environments.
The rack supports standard 19-inch equipment and comes with M6 screws and M6 square cage nuts for easy equipment mounting. The rear cable opening slot allows for in-wall cable routing, reducing clutter and improving airflow. This technical specification ensures compatibility with a wide range of networking devices while maintaining a compact footprint.
Key Product Advantages
The StarTech.com 14U wall mount rack combines durability, ease of installation, and efficient cable management to streamline network infrastructure deployment. Its cold-rolled steel construction offers superior strength and longevity, while the included hardware and predrilled holes reduce setup time. The rear cable opening slot enhances organization by enabling clean in-wall routing, which is critical for maintaining optimal performance in high-density environments.
Durable Construction
The 1/16-inch thick solid steel design ensures the rack can withstand heavy loads and daily use without compromising stability.
- Maximum weight capacity of 77 lbs
- Resists bending and corrosion
Simplified Installation
Ships fully assembled with M6 screws, M6 square cage nuts, and wall mounting hardware, including plastic washers and anchors for various wall types.
- Predrilled holes spaced 16 inches apart
- Quick-start guide included
Deployment / Use Cases
This rack is ideal for environments where space is limited but organization is critical. In network closets, it provides a secure mounting solution for switches, routers, and patch panels, keeping equipment off the floor and accessible. In server rooms, it helps consolidate smaller devices, while in wiring closets and classrooms, it supports educational and office IT setups by maintaining a tidy and professional appearance.
Common applications include mounting network switches for data centers, organizing patch panels in telecom rooms, and housing IT equipment in small offices or retail spaces. The 14U capacity allows for scalable deployment, accommodating multiple devices while the 14-inch depth ensures compatibility with most standard networking hardware.
Network Closet Optimization
Maximizes vertical space in tight areas, allowing for efficient equipment stacking and easy access for maintenance.
Educational and Office IT
Supports classroom or office networking needs with a compact design that fits into standard wall studs.
Physical Profile
The rack's dimensions of 24.80 inches in height, 19.60 inches in depth, and 14 inches in length provide a balanced footprint for wall mounting. The cold-rolled steel finish offers a sleek, professional look while enhancing durability. The design includes a rear cable opening slot for streamlined cable management, reducing clutter and improving airflow around mounted equipment. With an approximate weight of 11.02 lbs, it is lightweight enough for easy handling during installation yet sturdy enough to support heavy loads.
- Depth
- 19.60" (497.84 mm)
- Height
- 24.80" (629.92 mm)
- Weight
- 11.02 lb (5000 g)
- Length
- 14" (355.60 mm)

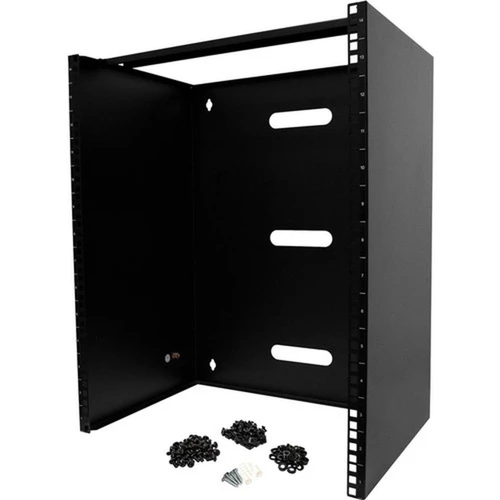

What's in the Box
The package includes all necessary components for immediate installation and use.
Highlights
- 14U wall mount rack with 19-inch width and 14-inch maximum mounting depth
- Cold-rolled steel construction for durability and a 77 lbs weight capacity
- Fully assembled design with included M6 screws and cage nuts for easy installation
- Rear cable opening slot for in-wall cable routing and improved organization
- Predrilled wall mounting holes spaced 16 inches apart for standard stud alignment
- Lifetime warranty backed by StarTech.com with free 24/5 multilingual tech support
- Ideal for network closets, server rooms, wiring closets, and classrooms
- Supports networking equipment up to 12 inches deep with 2 inches for cable routing
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RACK-14U-14-BRACKET |
| Brand Name | StarTech.com |
| Product Name | Mounting Bracket |
| Product Type | Rack Mount Bracket |
| Technical Information | |
| Application/Usage | Rack |
| Physical Characteristics | |
| Height | 24.80" (629.92 mm) |
| Depth | 19.60" (497.84 mm) |
| Length | 14" (355.60 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | Mounting Bracket 25 x M5 Mounting Screws M6 Square Cage Nuts M6 Cage Screws Plastic Washers Plastic Wall Anchors Quick-Start Guide |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum weight capacity of this wall mount rack?
The StarTech.com RACK-14U-14-BRACKET has a maximum weight capacity of 77 lbs (35 kg). This capacity is supported by its cold-rolled steel construction, which features a 1/16-inch thick solid steel design to ensure safe and sturdy mounting for networking equipment like switches and patch panels.
How deep is this rack, and what equipment depth does it support?
This rack has a maximum mounting depth of 14 inches (35 cm). It is recommended for networking equipment up to 12 inches deep, leaving 2 inches of space for cable routing behind the devices. This design helps maintain organized cables and proper airflow in confined spaces.
What installation hardware is included with the rack?
The rack ships fully assembled and includes Mounting Bracket, 25 x M5 Mounting Screws, M6 Square Cage Nuts, M6 Cage Screws, Plastic Washers, Plastic Wall Anchors, and a Quick-Start Guide. The predrilled wall mounting holes are spaced 16 inches apart for easy alignment with standard wall studs.
Does this rack support cable management features?
Yes, the rack includes a rear cable opening slot for in-wall cable routing. This feature allows cables to be neatly organized and routed through the wall, reducing clutter in network closets, server rooms, wiring closets, and classrooms, which improves accessibility and airflow.
What warranty does StarTech.com offer for this product?
StarTech.com provides a lifetime limited warranty for this 14U wall mount rack. Additionally, it includes free 24/5 North America-based multilingual technical support, ensuring long-term reliability and assistance for IT professionals deploying this rack in various environments.
Where is this rack manufactured?
The StarTech.com RACK-14U-14-BRACKET is manufactured in China. It meets StarTech.com's quality standards for durability and performance, as evidenced by its cold-rolled steel construction and lifetime warranty backing.
