Product Features
Technical Overview
This Cat6a patch cable is engineered to meet ANSI/TIA-568.2-D standards and has been Fluke tested and ETL verified for performance compliance. The cable utilizes 100% stranded copper conductors (27 AWG) arranged in four twisted pairs, with each pair individually foil-shielded and an overall braided shield for comprehensive EMI/RFI protection.
The cable supports multi-gigabit speeds from 1 Gbps to 10 Gbps across its entire 15-foot length, with minimized near-end crosstalk (NEXT) and return loss characteristics. It is fully backward compatible with Cat6, Cat5e, and earlier Ethernet standards, ensuring seamless integration into existing network infrastructures.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines enterprise-grade performance with practical durability features for reliable network operation. The shielded construction maintains signal integrity in electrically noisy environments, while the LSZH jacket offers safety advantages over traditional PVC cables.
Enhanced PoE Capability
Supports IEEE 802.3bt (Type 4) PoE++ standard for delivering up to 100W of power to connected devices such as wireless access points, security cameras, and VoIP phones.
- 100% stranded copper conductors
- Stable power delivery
- Compatible with all PoE standards
Superior Shielding Design
S/FTP (Shielded/Foiled Twisted Pair) construction provides multiple layers of protection against electromagnetic interference.
- Individual pair foil shielding
- Overall braided shield
- Shielded RJ-45 connectors
Deployment / Use Cases
This Cat6a patch cable is ideal for connecting network equipment in office environments, data centers, educational facilities, and commercial buildings where both high-speed data transfer and Power over Ethernet capabilities are required.
Common applications include linking switches to routers, connecting workstations to network ports, powering and connecting PoE devices like security cameras and wireless access points, and establishing connections in server racks where cable management and durability are important considerations.
Data Center Applications
Provides reliable 10 GbE connections between servers, switches, and storage devices while offering the flexibility to power PoE-enabled management interfaces.
Office Network Infrastructure
Connects workstations, printers, and network equipment with the bandwidth headroom for future network upgrades and the power delivery needed for modern PoE devices.
Physical Profile
The cable features a white LSZH jacket that produces less dense and less corrosive smoke than traditional PVC cables in the event of fire. The snagless molded boot design includes strain relief to protect the connector interface from damage during installation and routine handling. With an approximate weight of 5.70 oz (161.59 g), the cable offers a balance of durability and manageable handling characteristics.
- Weight
- 5.70 oz (161.59 g)
- Length
- 15 ft (4.57 m)
Highlights

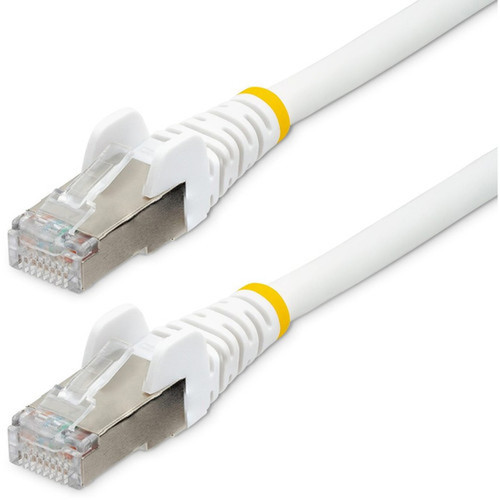

- 15-foot Category 6a Ethernet patch cable with 10 GbE data transfer capability
- S/FTP shielded construction with foil and braid for superior EMI/RFI protection
- Supports Power over Ethernet up to 100W (PoE++ IEEE 802.3bt compliant)
- Low Smoke Zero Halogen (LSZH) jacket for enhanced safety in commercial installations

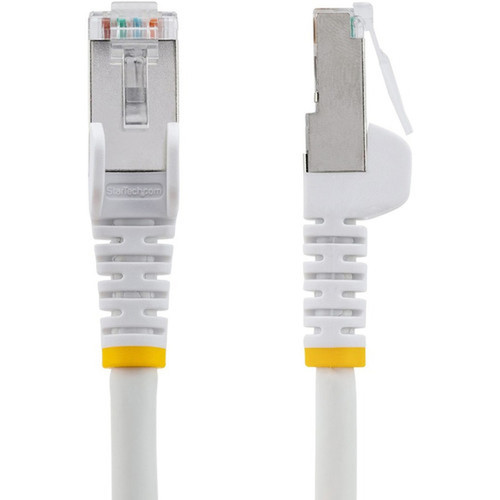

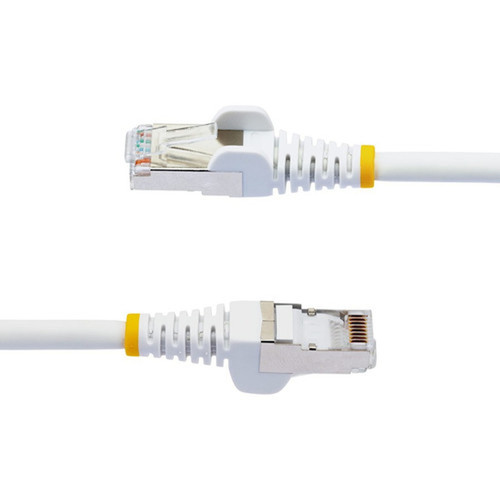

- Gold-plated RJ-45 connectors with snagless boot design for reliable connections
- 100% stranded copper conductors (27 AWG) for optimal performance and flexibility
- Backward compatible with Cat6, Cat5e, and earlier Ethernet standards
- ETL verified and Fluke tested to meet ANSI/TIA-568.2-D specifications
- White color with durable construction resistant to bending and damage
- Lifetime warranty and RoHS/WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-15F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 15 ft (4.57 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 5.70 oz (161.59 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this Cat6a cable?
This StarTech.com Cat6a patch cable supports data transfer rates up to 10 Gbit/s (10 Gigabit Ethernet) across its entire 15-foot length. It is backward compatible with lower-speed standards including 5 GbE, 2.5 GbE, and 1 GbE, making it suitable for both current high-speed networks and future upgrades.
Does this Ethernet cable support Power over Ethernet?
Yes, this cable fully supports Power over Ethernet up to 100W, complying with the IEEE 802.3bt (Type 4) PoE++ standard. It can deliver both data and power to compatible devices such as wireless access points, security cameras, VoIP phones, and other PoE-enabled equipment while maintaining stable power delivery through its 100% stranded copper conductors.
What does S/FTP shielding mean for this cable?
S/FTP stands for Shielded/Foiled Twisted Pair, indicating this cable has multiple layers of shielding. Each of the four twisted pairs is individually wrapped in foil shielding, and there is an overall braided shield around all pairs. This construction provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity in electrically noisy environments.
What are the advantages of the LSZH jacket?
The Low Smoke Zero Halogen (LSZH) jacket produces less dense smoke and contains no halogen materials compared to traditional PVC cables. In the event of fire, this reduces toxic gas emissions and corrosive byproducts, making it safer for use in commercial buildings, data centers, and enclosed spaces where people and equipment need protection from hazardous smoke.
Is this cable compatible with existing network equipment?
Yes, this Cat6a patch cable is fully backward compatible with Cat6, Cat5e, and earlier Ethernet standards. It uses standard RJ-45 connectors and will work with any network equipment that supports these interfaces. The cable has been tested to meet ANSI/TIA-568.2-D specifications and is ETL verified for performance compliance.
What is the warranty coverage for this Ethernet cable?
StarTech.com provides a lifetime warranty for this Cat6a patch cable. The cable also complies with environmental regulations including RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment Directive), reflecting the manufacturer's commitment to both product durability and environmental responsibility.
