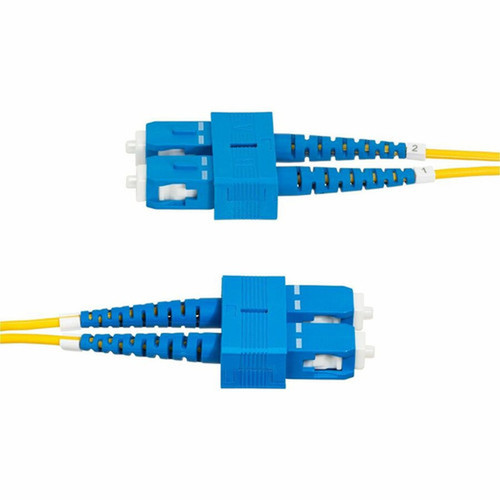

StarTech. com SMDOS2SCSC1M SC to SC - UPC OS2 Single Mode Duplex Fiber Optic Patch Cable - 1m - 3. 3ft - 100Gbps - LSZH - Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable utilizes OS2-grade single mode fiber optimized for laser-optimized 10/40/100G network applications. The SC connectors feature UPC polish that achieves superior return loss performance compared to standard PC connectors, with specifications meeting ≤0.3dB insertion loss and ≥55dB return loss for minimal signal degradation.
The cable construction incorporates aramid reinforcement within the 2mm diameter LSZH jacket, providing exceptional bend resistance with a loaded bend radius of just 10mm (0.39 inches). This design enables tight routing in crowded racks and cabinets without compromising optical performance or cable integrity.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic patch cable delivers multiple advantages for network professionals requiring reliable, high-performance connectivity solutions in data center and enterprise environments.
Superior Signal Integrity
UPC-polished SC connectors minimize back reflection and insertion loss, ensuring clean signal transmission for sensitive optical networking equipment.
- ≤0.3dB insertion loss
- ≥55dB return loss
- Number-labeled connectors for polarity identification
Enhanced Installation Flexibility
Bend-insensitive fiber technology and reinforced construction allow tight routing in confined spaces without performance degradation.
- 10mm loaded bend radius
- Aramid-reinforced jacket
- 2mm cable diameter for easy management
Safety and Compliance
LSZH jacket material emits minimal toxic fumes if combusted, making this cable suitable for poorly ventilated areas while meeting multiple environmental standards.
- RoHS 2 compliant
- REACH and WEEE compliant
- EU RoHS certified
Deployment / Use Cases
This SC to SC fiber optic patch cable is specifically designed for interconnecting network equipment in data centers, server rooms, and enterprise network environments. Its OS2 single mode fiber and 100Gbps capability make it ideal for backbone connections between switches, routers, servers, and storage devices in high-bandwidth applications.
The cable's backward compatibility with OS1 fiber and support for extended wavelength ranges (1260-1625nm) enables flexible deployment in both current and legacy network infrastructures. Common applications include connecting SAN/NAS storage arrays, linking network switches in core/distribution layers, and establishing connections between telecommunications equipment in carrier environments.
Data Center Interconnects
Connect servers to top-of-rack switches or establish cross-connects between distribution switches in high-density rack environments.
Network Infrastructure
Link network switches, routers, and optical transceivers in enterprise backbones supporting 10G, 40G, and 100G Ethernet standards.
Highlights
- OS2 single mode fiber optimized for 10/40/100G networks with CWDM support
- SC to SC UPC connectors for superior return loss and signal integrity
- 1-meter (3.3-foot) length with bend-insensitive fiber technology
- LSZH jacket emits low toxic fumes, safe for enclosed installations
- 100Gbps data transfer rate with backward compatibility to OS1
- Individually tested with included performance test report
- 9/125µm fiber with 1260-1625nm wavelength support
- Lifetime warranty for long-term reliability assurance
- Aramid-reinforced construction with 10mm bend radius
- Yellow color-coded jacket for easy single mode identification
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMDOS2SCSC1M |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 3.3 ft (1 m) |
| Connector Type on First End | SC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Ultra Physical Contact (UPC),Bend Insensitive,Flame Retardant,Bend Resistant |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Jacket Material | Low Smoke Zero Halogen |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber is used in this patch cable?
This cable uses OS2-grade single mode fiber with 9/125µm core/cladding dimensions. OS2 fiber is specifically optimized for laser-optimized applications and supports extended wavelength ranges from 1260-1625nm, making it suitable for Coarse Wavelength Division Multiplexing (CWDM) systems and high-speed 10G, 40G, and 100G network deployments.
What connectors does this fiber optic cable have?
Both ends feature SC connectors with Ultra Physical Contact (UPC) polish. Each end has two male SC connectors in a duplex configuration, providing separate transmit and receive paths. The UPC polish delivers improved return loss performance compared to standard Physical Contact (PC) connectors, minimizing signal reflection for cleaner optical transmission.
What is the maximum data transfer rate supported?
This OS2 single mode fiber patch cable supports data transfer rates up to 100 Gbit/s, making it suitable for current high-speed network standards including 100G Ethernet. The cable is backward compatible with lower-speed applications such as 10G and 40G networks, providing flexibility for mixed-speed environments and future upgrades.
What does LSZH jacket mean and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that emits minimal toxic fumes and smoke if combusted. This safety feature makes the cable suitable for enclosed spaces, poorly ventilated areas, and data centers where fire safety is a priority. The LSZH construction meets multiple environmental standards including RoHS 2, REACH, and WEEE directives.
What is the bend radius of this fiber optic cable?
The cable features a loaded bend radius of 10mm (0.39 inches) thanks to its bend-insensitive fiber technology and aramid-reinforced construction. This tight bend capability allows for flexible routing in crowded racks and cabinets without compromising optical performance or cable integrity, making installation in confined spaces more manageable.
What devices is this patch cable compatible with?
This SC to SC fiber optic patch cable is compatible with network devices, servers, switches, and storage equipment that support single mode fiber connections with SC interfaces. It's ideal for data center interconnects, SAN/NAS storage connections, telecommunications equipment, and any application requiring reliable single mode fiber connectivity between optical transceivers or network ports.
