Product Features
Technical Overview
Engineered for heavy-duty use, the CABSHELF1U7V is constructed from SPCC commercial cold-rolled steel, providing a robust platform that supports static loads up to 44.20 pounds (20 kg). Its cantilever design mounts securely to the front rails of any 19-inch rack using the included M6 cage nuts and screws, creating a stable shelf without requiring rear support.
The shelf's dimensions are precisely tailored for 1U rack spaces: it measures 1.70 inches (43.18 mm) in height, 17.30 inches (439.42 mm) in width to span standard rack widths, and 6.90 inches (175.26 mm) in length (depth). The unit itself weighs approximately 3 pounds (1360.78 g), adding minimal weight to the rack structure while delivering substantial load-bearing capacity.
Key Product Advantages
This rack shelf stands out by combining universal compatibility with durable construction and thoughtful design features that address common rack deployment challenges.
Universal 19-Inch Fit
Designed to work with virtually any 19-inch cabinet or equipment rack, the shelf eliminates compatibility concerns. It provides additional storage space for mission-critical hardware, tools, or audio/video accessories that would otherwise occupy valuable bench or floor space.
- Fits standard 19" racks
- No tool adjustments required
- Works with square-hole or round-hole rails
Enhanced Thermal Management
The vented shelf plate ensures consistent airflow across equipment placed on the shelf, effectively dissipating heat from servers, network switches, and AV components. This ventilation helps maintain optimal operating temperatures, potentially extending equipment lifespan and reducing cooling demands in enclosed racks.
- Promotes passive cooling
- Reduces hot spots
- Ideal for heat-sensitive gear
Heavy-Duty Durability
Constructed from SPCC steel, the shelf offers long-term durability in commercial, studio, and data center environments. The sturdy front-mounted design provides reliable support for equipment up to 44 pounds, making it suitable for dense deployments where equipment weight is a concern.
- SPCC steel construction
- 44 lb weight capacity
- Corrosion-resistant finish
Deployment / Use Cases
The CABSHELF1U7V serves multiple roles across IT, AV, and networking environments, providing flexible storage where dedicated rack mounting isn't available or practical.
In server rooms and data centers, the shelf is ideal for supporting small-form-factor servers, network-attached storage (NAS) devices, external hard drives, or backup tape drives that lack rack ears. For network closets, it can hold LAN switches, patch panels, power distribution units (PDUs), or cable management accessories. In AV installations, the shelf accommodates audio mixers, video processors, media players, or control panels that need secure rack placement but aren't rack-mountable by design.
Physical Profile

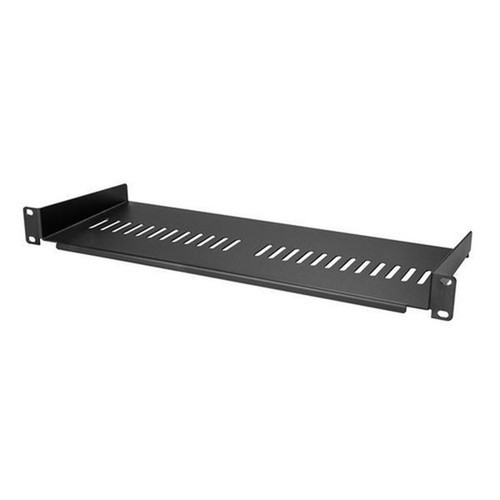

The shelf features a clean black finish that blends seamlessly with most rack equipment. Its fixed 7-inch depth provides sufficient space for many compact devices while minimizing protrusion into the rack's usable depth. The cantilever mounting system installs quickly using the supplied hardware, requiring only front rail access—an advantage in tightly packed racks where rear access is limited.
- Width
- 17.30" (439.42 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 44.20 lb (20048.78 g)
- Length
- 6.90" (175.26 mm)

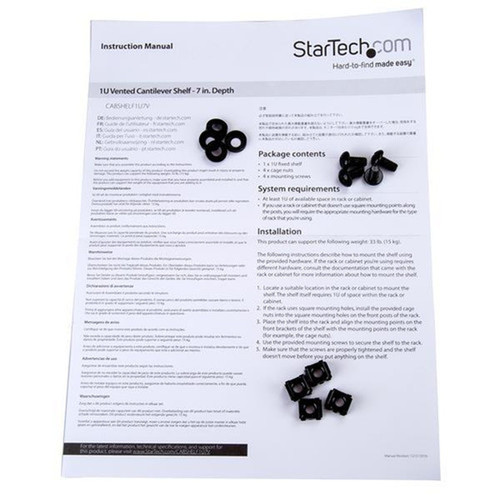

What's in the Box
The shelf ships complete with all necessary mounting hardware for immediate installation into standard 19-inch racks.
Highlights
- Fits any standard 19-inch server rack, cabinet, or enclosure
- 7-inch internal depth accommodates servers, switches, patch panels, and AV equipment
- Vented steel plate promotes airflow for better heat dissipation
- Constructed from durable SPCC commercial cold-rolled steel
- Supports static weights up to 44.20 lb (20 kg)
- Cantilever design mounts securely to front rack rails only
- Includes M6 cage nuts and screws for immediate installation
- Lifetime warranty with free lifetime technical support
- TAA compliant for government and educational procurement
- RoHS and REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CABSHELF1U7V |
| Brand Name | StarTech.com |
| Product Line | Universal |
| Product Model | CABSHELF1U7V |
| Product Name | Vented 1U Rack Shelf - 7 in. Deep |
| Packaged Quantity | 1 Each |
| Product Type | Rack Shelf |
| Technical Information | |
| Application/Usage | Server,A/V Equipment,LAN Switch,Patch Panel |
| Features | Vented |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel,SPCC |
| Static/Stationary Weight Capacity | 44.20 lb (20048.78 g) |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Length | 6.90" (175.26 mm) |
| Rack Height | 1U |
| Weight (Approximate) | 3 lb (1360.78 g) |
| Miscellaneous | |
| Package Contents | Vented 1U Rack Shelf - 7 in. Deep 4 x M6 Cage Nuts 4 x M6 Screws |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of equipment is this rack shelf designed to hold?
The CABSHELF1U7V is designed to support servers, A/V equipment, LAN switches, and patch panels—essentially any non-rackmount equipment that needs secure placement within a 19-inch rack. Its 44-pound weight capacity and vented design make it suitable for heat-generating devices like compact servers, network switches, and media processors that benefit from improved airflow.
How deep is the shelf, and what rack depth does it require?
The shelf has an internal depth of 7 inches (17.7 cm), meaning it can accommodate equipment up to that depth. The shelf itself measures 6.90 inches in length (front to back). It requires a standard 19-inch rack with front mounting rails; no rear support is needed due to its cantilever design, making it compatible with most racks regardless of their total depth.
What is the weight capacity of this rack shelf?
The shelf supports a static/stationary weight capacity of 44.20 pounds (20048.78 grams). This capacity applies to equipment evenly distributed across the shelf surface. The shelf's own weight is approximately 3 pounds, adding minimal load to the rack structure while providing substantial support for typical rack accessories and compact hardware.
What mounting hardware is included with the shelf?
The package includes four M6 cage nuts and four M6 screws for mounting the shelf to standard 19-inch rack rails. These hardware components are compatible with both square-hole and round-hole rack rails, ensuring easy installation without requiring additional purchases. The shelf uses a front-mount cantilever design, so only front rail attachment is necessary.
Is this shelf vented, and why does that matter?
Yes, the shelf features a vented steel plate design. The ventilation openings allow air to flow through the shelf, helping dissipate heat from equipment placed on it. This is particularly important for servers, switches, and other electronics that generate heat during operation, as improved airflow can help maintain safe operating temperatures and potentially extend equipment lifespan.
What warranty and support does StarTech.com provide for this product?
StarTech.com backs the CABSHELF1U7V with a lifetime warranty and free lifetime technical support. This coverage includes defects in materials and workmanship for the life of the product. Additionally, the shelf is TAA (Trade Agreements Act) compliant, making it suitable for government, education, and institutional procurement where TAA compliance is required.
