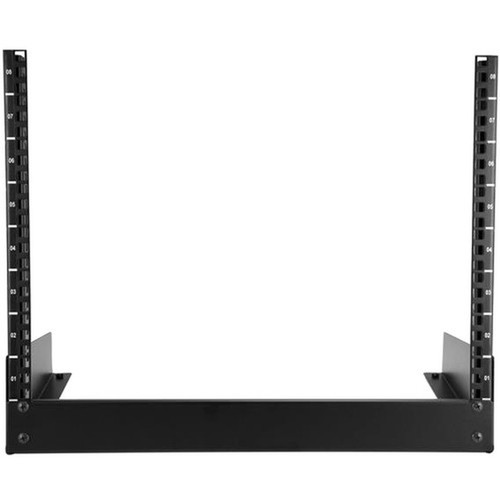

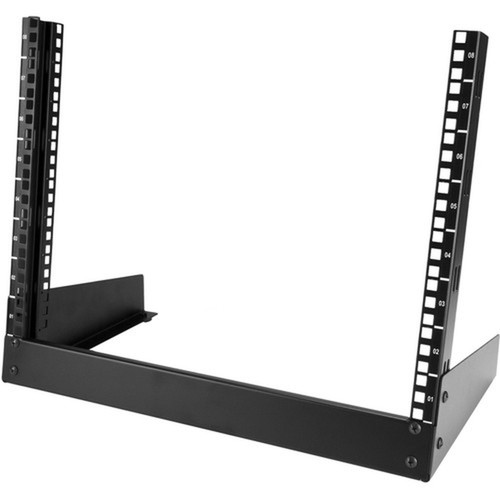

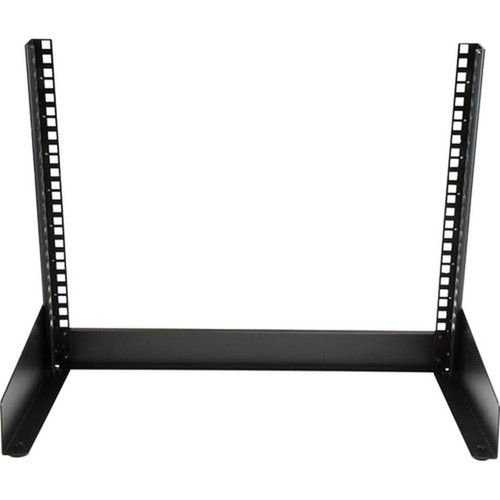

StarTech. com RK8OD 8U Desktop Server Rack - 2-Post Open Frame - 19in Steel Tabletop Rack for AV/Server Equipment
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for EIA-310 compliance, the RK8OD maintains precise 19-inch rack width spacing and standard mounting hole patterns. The 2-post configuration provides front-facing equipment support with open sides and rear access for simplified cable management and maintenance. The rack's steel construction ensures structural stability while keeping the overall weight under 5 pounds for easy repositioning.
The 8U height accommodates multiple 1U or 2U devices, with vertical rails spaced to support standard cage nuts and screws. The tabletop base includes rubber feet to prevent surface scratching and improve stability. Assembly is straightforward with all necessary hardware included, and the rack ships with comprehensive documentation for quick setup.
Key Product Advantages
The RK8OD combines affordability with practical rack functionality, offering several distinct advantages for space-constrained environments.
Space-Efficient Design
The tabletop form factor eliminates the need for dedicated floor space, making this rack ideal for offices, studios, and small server rooms where footprint is limited.
- Fits on standard desks and workbenches
- Maintains full 19-inch equipment compatibility
- Provides 8U of mounting height in compact dimensions
Complete Mounting Solution
Includes all necessary hardware for both rack assembly and equipment installation, with 20 M5 screws and cage nuts provided for securing devices.
- Prevents additional hardware purchases
- Ensures proper equipment mounting
- Supports standard rack-mount accessories
Enhanced Equipment Accessibility
The open frame design allows full access to all sides of mounted equipment, simplifying cable routing, maintenance, and airflow management.
- Improves cooling efficiency
- Facilitates quick component swaps
- Reduces cable clutter behind devices
Deployment / Use Cases
The RK8OD serves multiple deployment scenarios where traditional full-size racks are impractical or cost-prohibitive. Its compact design and substantial weight capacity make it suitable for various professional and small business applications.
In office environments, the rack organizes networking equipment, small servers, or AV components while keeping them accessible on a desk or in a communications closet. For studio applications, it provides structured mounting for audio interfaces, patch panels, and signal processors. In IT settings, the rack supports test equipment, development servers, or network gear in lab configurations.
Small Office Server Rack
Mount a combination of network switches, patch panels, and compact servers in a single organized unit that fits in a closet or under a desk.
AV Studio Equipment Rack
Organize audio interfaces, power conditioners, and signal processors with easy front and rear access for cable management during productions.
Physical Profile
The RK8OD measures 16.10 inches in height, 19.80 inches in width, and 11.50 inches in depth, providing a compact footprint that fits on most work surfaces. The black steel frame offers a professional appearance that blends with office or studio equipment. Rubber feet on the base brackets prevent surface damage and improve stability during equipment installation and maintenance. The open sides and rear allow for unobstructed airflow and cable access, while the 2-post design maintains equipment accessibility from all angles.
- Width
- 19.80" (502.92 mm)
- Height
- 16.10" (408.94 mm)
- Weight
- 110.50 lb (50121.96 g)
- Length
- 11.50" (292.10 mm)
What's in the Box
The RK8OD includes all components necessary for assembly and equipment mounting:
Highlights
- 8U height capacity for multiple rack-mount devices
- 2-post open frame design with 19-inch width compatibility
- Steel construction with 110.5 lb maximum weight capacity
- Tabletop form factor fits on desks and workbenches
- Includes 20 M5 screws and cage nuts for equipment mounting
- EIA-310 compliant for standard equipment compatibility
- Black finish with rubber feet to protect surfaces
- Open sides and rear for optimal airflow and cable access
- Lifetime warranty for long-term reliability
- TAA compliant and RoHS certified for environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK8OD |
| Brand Name | StarTech.com |
| Product Name | 8U Desktop Rack - 2-Post Open Frame Rack - 19in Open Frame Desktop Rack - 8U |
| Packaged Quantity | 1 Each |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | A/V Equipment,Server |
| Rack Post Quantity | 2 |
| Physical Characteristics | |
| Form Factor | Tabletop |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 110.50 lb (50121.96 g) |
| Height | 16.10" (408.94 mm) |
| Width | 19.80" (502.92 mm) |
| Length | 11.50" (292.10 mm) |
| Rack Height | 8U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 4.80 lb (2177.24 g) |
| Miscellaneous | |
| Package Contents | 1 x Left Base Bracket 1 x Right Base Bracket 1 x Left Vertical Rail 1 x Right Vertical Rail 1 x Front Base Bracket 4 x Rubber Feet 8 x Assembly Screws 20 x M5 Screws 20 x M5 Cage Nuts 1 x Instruction Manual |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What equipment can I mount in this 8U desktop rack?
The RK8OD supports standard 19-inch rack-mount equipment including servers, network switches, patch panels, audio interfaces, power distribution units, and AV components. The 8U height accommodates multiple 1U or 2U devices, with a maximum weight capacity of 110.5 pounds distributed across all mounted equipment. The open frame design provides compatibility with most rack-mount accessories and ensures proper airflow for active equipment.
Does this rack require assembly, and is hardware included?
Yes, the RK8OD requires assembly, but all necessary hardware is included in the package. The rack ships with left and right base brackets, vertical rails, a front base bracket, rubber feet, assembly screws, 20 M5 screws, 20 M5 cage nuts, and a comprehensive instruction manual. Assembly typically takes 15-30 minutes using basic tools, and the design ensures proper alignment for equipment mounting once assembled.
What are the dimensions of this desktop rack?
The assembled rack measures 16.10 inches in height, 19.80 inches in width, and 11.50 inches in depth (408.94 x 502.92 x 292.10 mm). The rack height provides 8U of mounting space, while the 19-inch width accommodates standard rack-mount equipment. The compact footprint allows placement on most desks, workbenches, or shelves, with rubber feet included to protect surfaces and improve stability.
Is this rack compatible with standard rack-mount screws and accessories?
Yes, the RK8OD is fully compatible with standard rack-mount hardware and accessories. The vertical rails feature standard mounting hole patterns that accept M5 cage nuts and screws (20 of each included). The rack is EIA-310 compliant, ensuring compatibility with industry-standard rack-mount equipment, shelves, brackets, and cable management accessories designed for 19-inch racks.
What weight capacity does this desktop rack support?
The RK8OD has a maximum weight capacity of 110.50 pounds (50121.96 grams). This capacity applies to the total weight of all mounted equipment distributed across the rack. The steel construction and 2-post design provide structural stability for servers, network gear, and other rack-mount devices while maintaining a lightweight frame that weighs only 4.80 pounds for easy repositioning.
What warranty comes with the StarTech.com RK8OD rack?
StarTech.com provides a lifetime warranty for the RK8OD desktop rack. This warranty covers defects in materials and workmanship for the life of the product. The rack is also TAA compliant and meets EU RoHS environmental standards, ensuring it contains restricted hazardous substances below specified limits and is suitable for government and institutional purchasing where TAA compliance is required.
