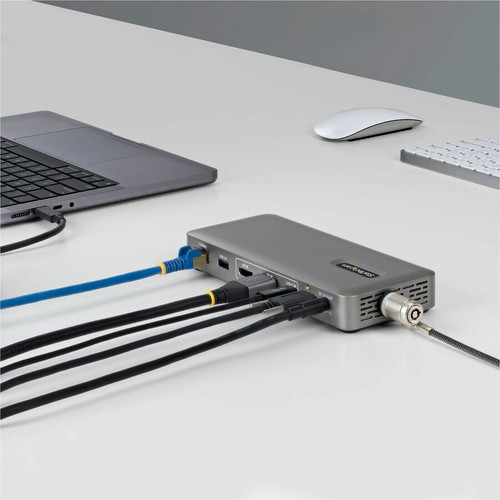

StarTech. com 208N-USB4-DOCK USB4 Docking Station – Driverless Dual 4K for macOS & Windows - Universal USB-C Dock with 100W Laptop Charging and 2. 5GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The 208N-USB4-DOCK features a USB4 host interface supporting up to 40Gbps bandwidth, ensuring low-latency video and data throughput. It drives two 4K displays at 144Hz or one 8K display at 60Hz via two DisplayPort outputs, making it ideal for high-refresh-rate productivity or creative workflows.
Network connectivity is handled by a 2.5 Gigabit Ethernet port, providing faster wired network access than standard gigabit. The dock offers a total of six USB ports: three USB 3.2 Gen 2 Type-A ports (10Gbps), one USB 3.2 Gen 2 Type-C port (10Gbps), and one USB-C with DP Alt Mode for video. It also includes IT management features like PXE Boot, Wake-on-LAN, and MAC Address Pass-through for centralized control.
This section brings together practical product details such as Connectivity Technology, Charging Capability, Number of Displays Supported, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The 208N-USB4-DOCK simplifies IT procurement and support by offering true cross-platform driverless operation. It works out of the box with Windows 10/11, macOS Big Sur through Tahoe 26.0, Ubuntu 24.04, and ChromeOS, reducing help desk tickets and OS-specific workarounds.
Its robust feature set includes 2.5GbE for fast network transfers, 100W laptop charging to keep high-power notebooks running, and dual high-refresh-rate display support—all through a single cable. Additionally, IT admins benefit from PXE Boot and Wake-on-LAN for network-based maintenance and provisioning.
Driverless Cross-Platform
No driver installation needed on macOS, Windows, or Linux. Consistent performance across all major operating systems speeds up deployments and reduces support calls.
Enterprise Management Features
Includes PXE Boot, Wake-on-LAN, and MAC Address Pass-through, making it suitable for corporate environments that require remote provisioning and asset management.
Deployment / Use Cases
Ideal for hot-desking setups, shared workstations, and remote offices where users alternate between Mac and Windows laptops. The driverless nature means no IT intervention is needed when switching devices, while 100W charging ensures compatibility with power-hungry laptops like the 16-inch MacBook Pro.
In design and engineering environments, the dual 4K 144Hz output supports smooth motion for CAD, video editing, and data visualization. The 2.5GbE port is a practical upgrade for teams that transfer large files over a wired network, and VESA mounting (bracket sold separately) helps keep workspaces tidy.
Mixed-OS Hot-Desking
Deploy the same dock across departments with macOS and Windows laptops. Driverless switching eliminates login delays and adapter hunting.
- Supports M4/M5 MacBook Pro/Air and Windows business laptops
- 100W PD handles any ultrabook or workstation
High-Performance Creative Workflows
Connect dual 4K monitors at 144Hz for video production or 3D modeling. The 2.5GbE port provides fast NAS or server access for large project files.
Physical Profile
The dock has a compact footprint at 1.10" H x 3.10" W and weighs just 11.2 oz (317.5 g), making it easy to mount under a desk or carry between locations. The Space Gray finish matches modern MacBook and monitor aesthetics, and the integrated Kensington lock slot provides physical security in shared spaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10" (27.94 mm), 3.10" (78.74 mm), 11.20 oz (317.51 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.10" (78.74 mm)
- Height
- 1.10" (27.94 mm)
- Weight
- 11.20 oz (317.51 g)
What's in the Box
The package includes the docking station, a USB4 host cable, a universal power adapter (NA), and product documentation.
Package contents include Docking Station, 1 x USB4 Host Cable, 1 x Universal Power Adapter (NA), 1 x Product Documentation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Driverless plug-and-play on macOS, Windows, Ubuntu, and ChromeOS – no driver installation required
- Dual 4K display output at 144Hz or single 8K at 60Hz via two DisplayPort connections
- 2.5 Gigabit Ethernet port for faster wired network performance
- 100W Power Delivery upstream charging supports high-power laptops like 16-inch MacBook Pro
- USB4 40Gbps host connection with full compatibility with Thunderbolt 4/5 ports
- Enterprise management: PXE Boot, Wake-on-LAN, and MAC Address Pass-through
- Six USB ports (3x USB-A, 2x USB-C, 1x USB4) for peripheral connectivity
- Kensington lock slot and VESA mountable design for secure and organized deployment
- Backed by StarTech.com 3-year warranty and free lifetime 24/5 multilingual technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 208N-USB4-DOCK |
| Brand Name | StarTech.com |
| Product Name | Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 7680 x 4320,3840 x 2160 |
| Screen Mode Supported | 8K @ 60Hz,4K @ 240Hz,4K,4K @ 144Hz |
| Management Features | PXE Boot,Wake-on-LAN,MAC Address Pass-through |
| Device Supported | Notebook,Workstation,MacBook,Monitor |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB4 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C (24 pin, 10Gbps, DP Alt-Mode Video), 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| USB Power Delivery | 100W |
| USB4 | Yes |
| Number of USB4 Ports | 1 |
| Total Number of Ports | 9 |
| Software | |
| Operating System Supported | Windows 10,Windows 11,macOS Big Sur,macOS Monterey,macOS Ventura,macOS Sonoma,macOS Sequoia 15,macOS Tahoe 26.0,Ubuntu 24.04,ChromeOS |
| Physical Characteristics | |
| Product Color | Space Gray |
| Height | 1.10" (27.94 mm) |
| Width | 3.10" (78.74 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Package Contents | Docking Station 1 x USB4 Host Cable 1 x Universal Power Adapter (NA) 1 x Product Documentation |
| Kensington Security Slot | Yes |
| Compatibility | Apple Products: M4 / M5 MacBook Pro MacBook Air |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
Is the StarTech 208N-USB4-DOCK compatible with M4/M5 MacBook Pro and MacBook Air?
Yes, the 208N-USB4-DOCK leverages native USB4 support on Apple M4 and M5 MacBook Pro and MacBook Air. It is also fully compatible with Thunderbolt 4/5 ports found on both Intel and Apple Silicon Macs, delivering driverless plug-and-play performance.
What display resolutions and refresh rates does this docking station support?
The dock supports up to dual 4K displays at 144Hz, or a single 8K display at 60Hz via the two DisplayPort outputs. It can also drive 4K at 240Hz for single-display setups when using a compatible monitor and host device.
Does the dock support PXE Boot and Wake-on-LAN for enterprise IT management?
Yes, the 208N-USB4-DOCK includes PXE Boot, Wake-on-LAN, and MAC Address Pass-through. These features allow IT administrators to remotely boot, provision, and manage networked systems in corporate environments.
Can I charge my laptop through this dock, and what power delivery does it support?
Yes, the dock provides up to 100W of Power Delivery upstream charging to the host laptop. This is sufficient to charge high-power models like the 16-inch MacBook Pro (M4/M5) and most Windows business laptops at full speed.
What operating systems are supported without installing additional drivers?
The dock is truly driverless and supports Windows 10 and 11, macOS Big Sur through macOS Tahoe 26.0, Ubuntu 24.04, and ChromeOS. It works out of the box on all these platforms with no manual driver installation needed.
How many USB ports are available, and what are their speeds?
The dock features six USB ports in total: three USB 3.2 Gen 2 Type-A ports (10Gbps), one USB 3.2 Gen 2 Type-C port (10Gbps), one USB-C with DP Alt Mode (10Gbps, supports video), and one upstream USB4 port for host connection. All downstream ports provide high-speed data transfer.
What resolution or display format is specified?
It features a display specification of 7680 x 4320,3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
