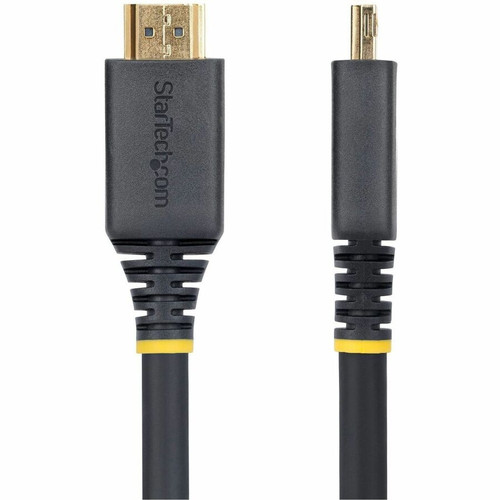

StarTech. com HDMI2-CABLE-GRIP-20F 20ft High Speed HDMI Cable with Gripping Connectors - 4K 60Hz/1440p 144Hz 18Gbps - UHD - HDR10 - HDCP 2. 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This High Speed HDMI cable implements the HDMI 2.0 specification with full 18Gbps bandwidth capacity, enabling support for 4K UHD content at 60 frames per second. The cable architecture includes 24/26 AWG conductors with aluminum mylar shielding that provides effective EMI protection, ensuring clean signal transmission even in electrically noisy environments. The HDMI Ethernet Channel (HEC) capability allows for network sharing between connected devices without requiring separate Ethernet cables.
The cable supports 32-channel audio transmission alongside video signals, maintaining synchronization between audio and visual elements. Audio Return Channel (ARC) functionality enables audio to be sent from a display back to an audio system through the same HDMI connection, simplifying home theater setups. Consumer Electronics Control (CEC) support allows for single remote control operation of multiple connected devices.
Key Product Advantages
The gripping connector design represents a significant advancement in cable reliability, particularly for mounted displays and hard-to-access ports. These connectors feature a secure locking mechanism that prevents accidental disconnection due to tension or vibration, ensuring uninterrupted signal transmission in professional installations. The gold-plated contacts exceed 10,000 insertion cycles while maintaining optimal conductivity and corrosion resistance.
Durable Construction
The cable undergoes rigorous testing including 2,000 bending cycles at ±60 degrees, demonstrating exceptional flexibility and resilience. The halogen-free TPE jacket and RoHS compliance ensure environmental safety while providing excellent abrasion resistance.
- Tested to 2,000 bending cycles
- Halogen-free construction
- RoHS compliant materials
Enhanced Signal Integrity
Advanced shielding technology combines braided shielding with aluminum mylar layers to minimize electromagnetic interference. This multi-layer protection maintains signal purity over the full 20-foot length, preventing signal degradation that can cause visual artifacts or audio dropouts.
- Braided EMI shielding
- Aluminum mylar protection
- Maintains signal integrity at 20ft
Deployment / Use Cases
This HDMI cable excels in professional AV installations where reliability and performance are critical. The 20-foot length makes it particularly suitable for connecting wall-mounted displays to media consoles, gaming PCs to large-format monitors, or projectors to source devices in conference rooms and home theaters. The gripping connectors provide essential security in installations where cables may experience tension or movement.
For gaming applications, the cable supports high refresh rates up to 144Hz at 1440p resolution, delivering smooth gameplay with reduced motion blur. Content creators working with 4K video editing workstations benefit from the full 18Gbps bandwidth when connecting high-resolution reference monitors. The cable also serves well in digital signage deployments where continuous operation and secure connections are essential for maintaining display functionality.
Professional AV Installations
Ideal for conference rooms, digital signage, and home theater systems where secure connections and long cable runs are required. The gripping connectors prevent disconnection in mounted display scenarios.
- Wall-mounted displays
- Conference room setups
- Digital signage deployments
High-Performance Computing
Connects external GPUs, high-refresh gaming monitors, and 4K docking stations to workstations and gaming PCs. Supports the bandwidth demands of modern graphics cards and high-resolution displays.
- External GPU connections
- Gaming monitor setups
- 4K docking station integration
Physical Profile
The cable features a sleek black Santoprene construction with a 9mm outer diameter that balances flexibility with durability. The Thermoplastic Elastomer (TPE) jacket provides excellent resistance to kinking and abrasion while maintaining flexibility across the entire 20-foot length. Weighing approximately 10.70 ounces (303.34 grams), the cable offers substantial construction without excessive bulk, making it manageable for installation while providing the robustness needed for professional use.
- Weight
- 10.70 oz (303.34 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot (6.1m) High Speed HDMI cable with full 18Gbps bandwidth
- Supports 4K UHD at 60Hz and 1440p at 144Hz refresh rates
- Gold-plated gripping connectors prevent accidental disconnection
- HDMI 2.0 compliant with HDR10 and HDCP 2.2 support
- Includes Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC)
- Durable TPE jacket tested to 2,000 bending cycles
- Braided shielding with aluminum mylar for EMI protection
- Halogen-free, RoHS compliant construction
- Backward compatible with previous HDMI standards
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMI2-CABLE-GRIP-20F |
| Brand Name | StarTech.com |
| Product Name | 20ft HDMI 2.0 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector on First End Details | 1x HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1x HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Device Supported | Audio/Video Device,TV,Monitor,Display,External GPU,Workstation |
| American Wire Gauge | 24/26 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 2560 x 1440,1920 x 1080,3840 x 2160 |
| Features | Gripping Connector,HDR10 Support,HDCP 2.2,Audio Return Channel (ARC),Flexible,Strain Relief,Durable,HDMI Ethernet Channel (HEC),Braided,EMI Protection,Halogen-free,Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Santoprene |
| Shielding Material | Aluminum Mylar |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 10.70 oz (303.34 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What resolutions and refresh rates does this HDMI cable support?
This High Speed HDMI cable supports 4K UHD resolution (3840 x 2160) at 60Hz, 1440p resolution (2560 x 1440) at 144Hz, and 1080p resolution (1920 x 1080) at 240Hz. The 18Gbps bandwidth ensures these resolutions and refresh rates are maintained without signal degradation over the full 20-foot cable length.
How do the gripping connectors work and when are they most useful?
The gripping connectors feature a secure locking mechanism that prevents accidental disconnection due to tension or vibration. They are particularly valuable in professional installations with wall-mounted displays, hard-to-access ports, or environments where cables may experience movement. The gold-plated contacts ensure optimal conductivity while the gripping design maintains connection integrity.
Is this cable compatible with HDMI 1.4 and earlier devices?
Yes, this HDMI 2.0 cable maintains full backward compatibility with HDMI 1.4, 1.3, and earlier specifications. You can connect it to older devices while still benefiting from the enhanced construction and durability features. When used with HDMI 2.0 compatible equipment, you gain access to the full 18Gbps bandwidth and advanced features like HDR10 support.
What makes this cable suitable for professional installations?
The cable's professional-grade construction includes gold-plated connectors rated beyond 10,000 insertions, a durable TPE jacket tested to withstand 2,000 bending cycles, and braided shielding with aluminum mylar for superior EMI protection. The 20-foot length accommodates larger installation spaces while the gripping connectors ensure secure connections in mounted display scenarios.
Does this cable support Audio Return Channel (ARC) functionality?
Yes, this HDMI cable fully supports Audio Return Channel (ARC) functionality, allowing audio to be sent from a compatible display back to an audio system through the same HDMI connection. This eliminates the need for a separate audio cable in home theater setups and simplifies system configuration while maintaining high-quality audio transmission.
What environmental and safety certifications does this cable have?
The cable is RoHS (Restriction of Hazardous Substances) compliant and constructed with halogen-free materials, making it environmentally responsible and safe for use in various settings. The durable TPE jacket and strain relief components meet rigorous safety standards while providing excellent performance characteristics for both commercial and residential applications.
What resolution or display format is specified?
2560 x 1440,1920 x 1080,3840 x 2160.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
