StarTech. com N6LPATCH20BK CAT6 Ethernet Patch Cable - 20ft (6m) LSZH 10 GbE Snagless 100W PoE UTP RJ45 Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

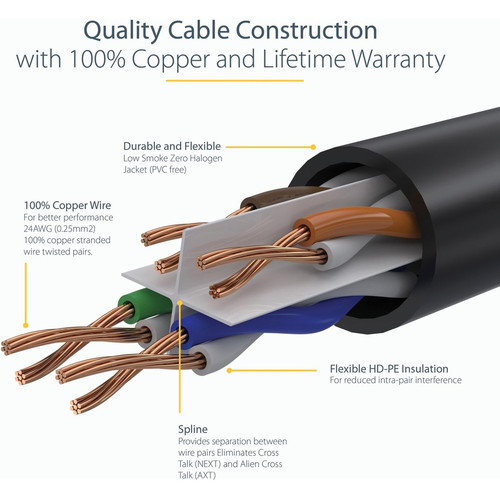

This CAT6 cable operates at a 250 MHz frequency and utilizes 4-pair U/UTP architecture to minimize crosstalk and ensure stable data transmission. The 24 AWG stranded copper conductors enhance flexibility and durability, while the high-density polyethylene insulation maintains signal clarity over the full 20-foot length. The snagless boot design prevents accidental disconnection and reduces strain on the connector during installation.
The cable's LSZH jacket is PVC-free and produces low smoke and toxic fumes in fire scenarios, meeting safety requirements for commercial and industrial settings. Gold-plated pins (50-micron) improve signal integrity and resist oxidation, supporting consistent performance over time. The cable is backward compatible with Cat5e and earlier standards, ensuring broad interoperability.
Key Product Advantages
This Ethernet cable combines advanced materials and design to deliver reliable connectivity with enhanced safety features. The LSZH jacket and pure copper wiring set it apart from lower-quality alternatives, providing both performance and peace of mind in critical installations.
High-Performance Copper Construction
100% copper conductors ensure minimal signal loss and support high-speed data transfer up to 10 Gb/s, with ETL verification for compliance with industry standards.
- Reduces crosstalk and interference
- Supports multi-gigabit speeds
- ETL verified to ANSI/TIA-568.2-D
Safety and Durability
The LSZH jacket is PVC-free and emits low smoke and toxic fumes in fire conditions, while the PVA co-polymer resists bending, fraying, and physical damage.
- Ideal for enclosed or high-density environments
- Resists damage from frequent handling
- Maintains flexibility in tight spaces
PoE and Connectivity Support
Supports up to 100W PoE++ (IEEE 802.3bt type 4) for powering devices like security cameras and VoIP phones, with gold-plated connectors ensuring reliable power and data delivery.
- Powers PoE-enabled devices directly
- Gold contacts resist corrosion
- Snagless design prevents disconnection
Deployment / Use Cases
This CAT6 patch cable is versatile enough for a wide range of networking scenarios, from office workstations to industrial equipment. Its 20-foot length provides flexibility in routing, while the LSZH jacket makes it suitable for installations where fire safety is a priority, such as data centers, server rooms, and commercial buildings.
Common applications include connecting network switches to servers, linking routers to workstations, and powering PoE devices like security cameras and VoIP phones. The cable's compatibility with Cat5e and earlier standards allows for seamless integration into existing network infrastructures, supporting upgrades without requiring wholesale replacements.
Office and Enterprise Networks
Ideal for connecting desktops, laptops, and printers in office environments, providing stable gigabit or multi-gigabit connectivity for daily operations.
PoE Device Installations
Perfect for powering and connecting IP cameras, wireless access points, and VoIP phones, reducing cable clutter and simplifying deployments.
Physical Profile
The cable features a sleek black design that blends into most environments, with a lightweight construction of approximately 7.90 oz (223.96 g) for easy handling. The flexible, stranded conductors and bend-resistant jacket allow for tight bends and routing through cable management systems without compromising performance. The snagless boots protect the RJ45 connectors from damage during installation and removal.
- Weight
- 7.90 oz (223.96 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot CAT6 Ethernet patch cable with LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
- Supports data transfer rates up to 10 Gb/s, ideal for multi-gigabit network applications
- 100W PoE++ support (IEEE 802.3bt type 4) for powering devices like cameras and VoIP phones
- Snagless RJ45 connectors with gold-plated contacts for reliable connectivity and strain relief
- ETL verified to meet ANSI/TIA-568.2-D standards, ensuring compliance and performance
- PVC-free construction with PVA co-polymer jacket resistant to bending and fraying
- Backward compatible with Cat5e and earlier Ethernet standards
- Lifetime warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6LPATCH20BK |
| Brand Name | StarTech.com |
| Product Name | Cat.6 Patch Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | LSZH |
| Device Supported | Network Device,Network Card,Server,Router,NAS,VoIP Device,PoE-enabled Device,Workstation,Notebook,IPTV,Security Camera |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | Strain Relief,Near End Cross Talk (NEXT),PVC Free,PoE,Molded,Damage Resistant,Flexible,Bendable,Crosstalk Protection,Stranded,Fray Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Copper,Copper Clad Aluminum |
| Insulation Material | High-density Polyethylene (HDPE) |
| Weight (Approximate) | 7.90 oz (223.96 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this CAT6 cable?
This CAT6 Ethernet cable supports data transfer rates up to 10 Gb/s, making it suitable for high-speed network applications such as server connections, network storage, and multi-gigabit internet setups. It operates at a 250 MHz frequency and is backward compatible with lower-speed standards like Cat5e.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt type 4 (PoE++). This allows it to deliver both data and power to compatible devices like IP cameras, VoIP phones, and wireless access points, simplifying installations and reducing cable clutter.
What does LSZH mean, and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that produces minimal smoke and toxic fumes in fire conditions. This makes the cable safer for use in enclosed spaces, data centers, and commercial buildings where fire safety regulations are stringent. The PVC-free construction also reduces environmental impact.
Is this cable shielded or unshielded?
This cable is unshielded (U/UTP), meaning it does not have additional shielding layers around the conductors. It relies on twisted pair design to minimize crosstalk and interference, which is sufficient for most office and enterprise environments. The gold-plated connectors further enhance signal integrity.
What devices are compatible with this Ethernet cable?
This cable is compatible with a wide range of network devices, including routers, switches, servers, NAS units, workstations, laptops, IPTV boxes, and PoE-enabled equipment like security cameras and VoIP phones. Its RJ45 connectors and Cat6 rating ensure broad interoperability in mixed network environments.
What warranty does this cable come with?
This StarTech.com cable comes with a lifetime warranty, providing long-term assurance of quality and reliability. The warranty covers defects in materials and workmanship, reflecting the durable construction and ETL-verified compliance with industry standards.
