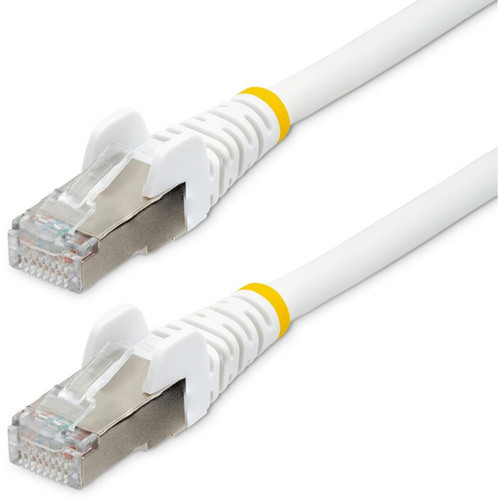

StarTech. com NLWH-20F-CAT6A-PATCH 20ft CAT6a Ethernet Patch Cable - White LSZH S/FTP Shielded 10GbE 100W PoE++ Snagless RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6a patch cable meets ANSI/TIA-568.2-D standards and is ETL verified for performance compliance. The cable features 100% stranded copper conductors (27 AWG) rather than copper-clad aluminum, providing better conductivity, flexibility, and durability. Each of the four twisted pairs is individually foil-shielded, with an overall braided shield for comprehensive EMI/RFI protection.
The cable incorporates multiple performance-enhancing features including minimized Near-End Crosstalk (NEXT) for reduced signal interference, strain relief boots to prevent connector damage, and snagless molded boots that protect the latch mechanism during installation and removal.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable offers distinct advantages for network professionals seeking reliable, high-performance connectivity solutions. The combination of premium materials and thoughtful engineering results in a patch cable that excels in both performance and durability.
Enhanced Safety with LSZH Jacket
The Low Smoke Zero Halogen (LSZH) jacket produces less dense, less toxic smoke than traditional PVC jackets in the event of fire, making it suitable for enclosed spaces, plenum areas, and environments with strict fire safety regulations.
- PVC-free construction
- Reduced corrosive emissions
- Compliant with RoHS and WEEE directives
Superior Shielding for Clean Signals
The S/FTP shielding configuration provides exceptional protection against external interference while minimizing crosstalk between internal pairs, ensuring reliable 10GbE performance even over the full 20-foot length.
- Individual pair foil shielding
- Overall braided shield
- Shielded RJ-45 connectors
Deployment / Use Cases
This Cat6a patch cable is designed for professional network installations where performance, reliability, and safety cannot be compromised. Its combination of high-speed capability, power delivery support, and robust construction makes it suitable for a wide range of networking applications.
In data center environments, the cable provides reliable connections between switches, servers, and storage devices while supporting high-bandwidth applications. For office deployments, it connects workstations to network switches while potentially powering PoE devices like phones and access points. The LSZH jacket makes it particularly suitable for installations in riser spaces, plenum areas, and other locations with strict fire safety requirements.
Data Center Applications
Connect servers, switches, and storage arrays with 10GbE performance while maintaining clean signals in electrically dense environments.
PoE-Enabled Deployments
Power and connect devices like wireless access points, security cameras, and VoIP phones with a single cable up to 100W capacity.
Physical Profile

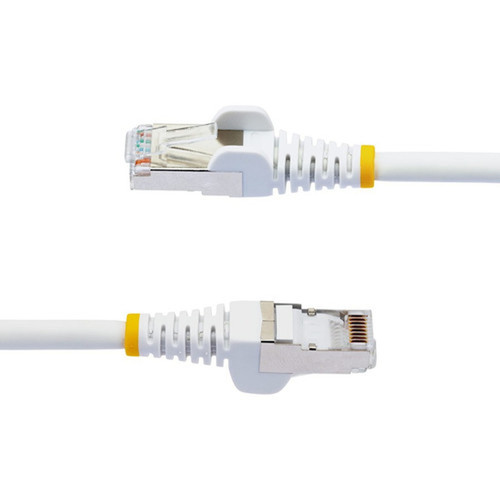

The cable features a white LSZH jacket that provides both aesthetic appeal and functional safety benefits. With a weight of approximately 7.40 ounces (209.79 grams), the cable maintains a manageable profile while incorporating robust shielding and construction. The snagless molded boots protect the RJ-45 connector latches from damage during installation and removal, while strain relief features prevent cable pull-out from the connectors. The cable's flexibility and bend-resistant construction allow for clean routing in cable management systems without performance degradation.
- Weight
- 7.40 oz (209.79 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot Category 6a Ethernet patch cable supporting 10GbE speeds
- S/FTP shielding with foil and braid for maximum EMI/RFI protection
- Supports Power over Ethernet up to 100W (PoE++ IEEE 802.3bt)
- LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
- 100% stranded copper conductors (27 AWG) for superior conductivity

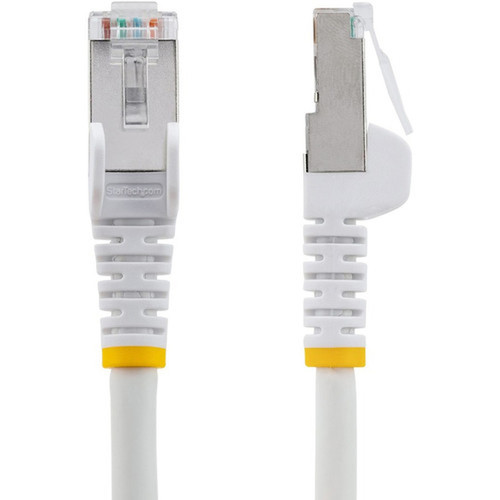

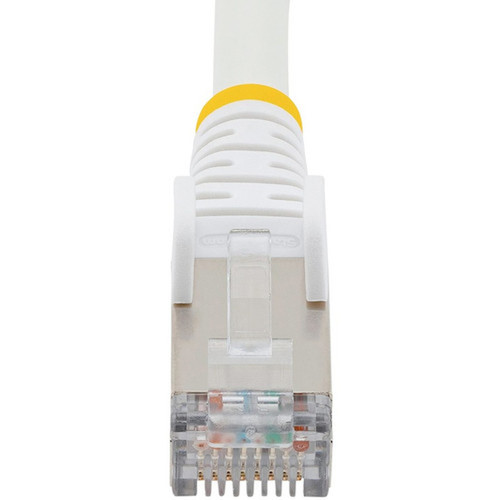

- Gold-plated RJ-45 connectors with snagless molded boots
- ETL verified and compliant with ANSI/TIA-568.2-D standards
- White color with professional appearance for various installations
- Backed by StarTech.com's lifetime warranty
- Environmentally compliant with RoHS and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-20F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 7.40 oz (209.79 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this Cat6a cable supports?
This StarTech.com Cat6a patch cable supports data transfer rates up to 10 Gbit/s (10 Gigabit Ethernet) with a bandwidth of 500 MHz. It's backward compatible with Cat6, Cat5e, and earlier standards, making it suitable for multi-gigabit networks while providing headroom for future upgrades.
Can this cable deliver Power over Ethernet to devices?
Yes, this cable fully supports Power over Ethernet up to 100W, compliant with the IEEE 802.3bt (PoE++) standard. It can power high-demand devices like wireless access points, security cameras, LED lighting, and thin clients while simultaneously transmitting data, eliminating the need for separate power cables.
What does S/FTP shielding mean for this Ethernet cable?
S/FTP stands for Shielded/Foiled Twisted Pair, indicating two layers of protection. Each of the four twisted pairs has individual foil shielding, and there's an overall braided shield around all pairs. This configuration provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean signal transmission in electrically noisy environments.
Why is the LSZH jacket important for network installations?
The Low Smoke Zero Halogen (LSZH) jacket produces significantly less smoke and toxic fumes than traditional PVC jackets in fire situations. This makes the cable suitable for enclosed spaces, plenum areas, data centers, and buildings with strict fire safety regulations. The LSZH material is also PVC-free and complies with environmental directives like RoHS and WEEE.
What are the benefits of the snagless molded boots?
The snagless molded boots protect the RJ-45 connector latches from breaking or snagging during installation, removal, or cable management. This design feature extends the cable's lifespan by preventing one of the most common points of failure in patch cables, especially in high-density patch panel environments where cables are frequently moved or rearranged.
Is this cable suitable for outdoor or direct burial installations?
No, this is an indoor-rated patch cable designed for controlled environment installations. While it features robust S/FTP shielding and an LSZH jacket for enhanced performance and safety, it is not rated for outdoor exposure, direct burial, or wet locations. For outdoor applications, specifically rated outdoor Ethernet cables with appropriate UV protection and waterproofing would be required.
