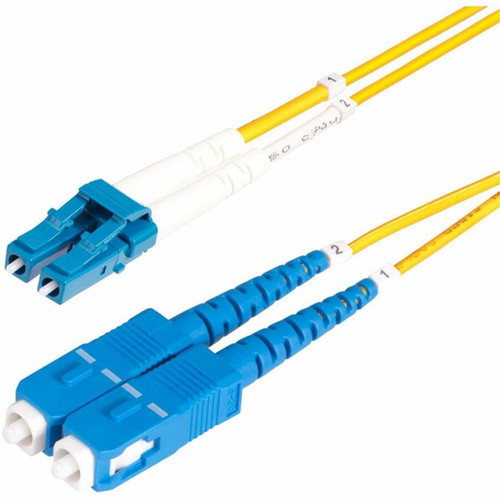

StarTech. com SMLCSC-OS2-25M LC to SC UPC OS2 Single Mode Duplex Fiber Optic Cable - 25m - 82ft - 100G - LSZH - Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable delivers precise optical performance with insertion loss ≤0.3dB and return loss ≥55dB, exceeding typical industry standards. The 9/125μm single-mode fiber supports extended wavelength ranges from 1260-1625nm, enabling compatibility with Coarse Wavelength Division Multiplexing (CWDM) systems for greater channel isolation over long distances.
The Ultra Physical Contact (UPC) polish on SC connectors provides improved return loss compared to standard PC polish, while numbered connectors ensure proper polarity identification during installation. The aramid-reinforced jacket offers mechanical protection with a loaded bend radius of just 10mm (0.39 inches).
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines advanced optical engineering with practical safety features for enterprise networking applications. The OS2 single-mode fiber provides immunity to electromagnetic interference while supporting current 100G networks and maintaining backward compatibility with OS1 standards.
Superior Optical Performance
With insertion loss under 0.3dB and return loss exceeding 55dB, this cable minimizes signal degradation for reliable high-speed data transmission across extended distances.
- UPC polish for improved return loss
- CWDM support 1260-1625nm
- Low insertion loss design
Enhanced Safety & Durability
The LSZH jacket material reduces toxic fume emissions during combustion, while the aramid reinforcement and bend-insensitive fiber provide mechanical resilience in challenging installations.
- LSZH jacket for enclosed spaces
- 10mm bend radius capability
- Aramid-reinforced construction
Deployment / Use Cases
This LC to SC fiber patch cable is specifically designed for connecting network equipment in data centers, enterprise server rooms, and telecommunications facilities. The duplex configuration with separate transmit and receive fibers supports full-duplex communication between devices.
Typical applications include interconnecting servers to switches, storage area network (SAN) equipment, network switches to core routers, and telecommunications distribution frames. The 25-meter length provides flexibility for rack-to-rack connections while maintaining signal integrity for high-speed 100G networks.
Data Center Interconnects
Connect servers, switches, and storage devices within data center environments where EMI immunity and high bandwidth are critical requirements.
Enterprise Backbone Links
Establish reliable connections between network distribution frames and core equipment rooms with the cable's extended distance capabilities and superior optical performance.
Highlights
- 25-meter (82-foot) LC to SC/UPC duplex fiber optic patch cable
- OS2 single-mode fiber optimized for 100Gbps network speeds
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in enclosed spaces
- Bend-insensitive fiber core with 10mm loaded bend radius
- UPC polish connectors for improved return loss ≥55dB
- EMI immune construction suitable for high-interference environments
- Backward compatible with OS1 fiber standards
- Individually tested with included performance report
- RoHS and WEEE compliant for environmental responsibility
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMLCSC-OS2-25M |
| Brand Name | StarTech.com |
| Product Name | FIber Optic Patch Duplex Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 82 ft (25 m) |

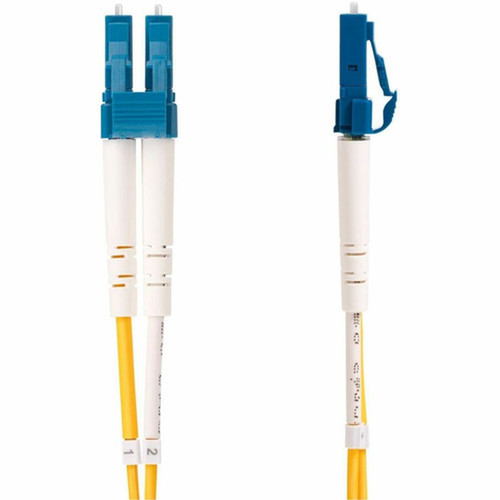

| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |

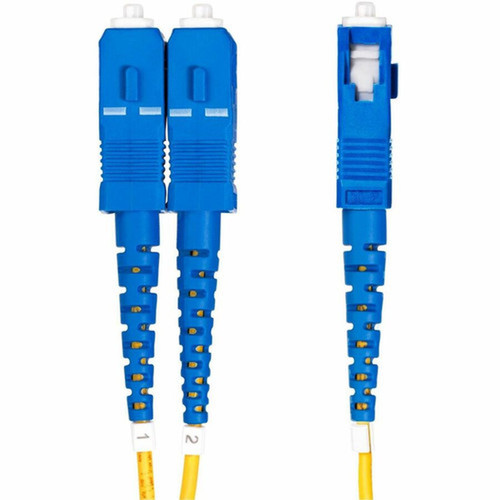

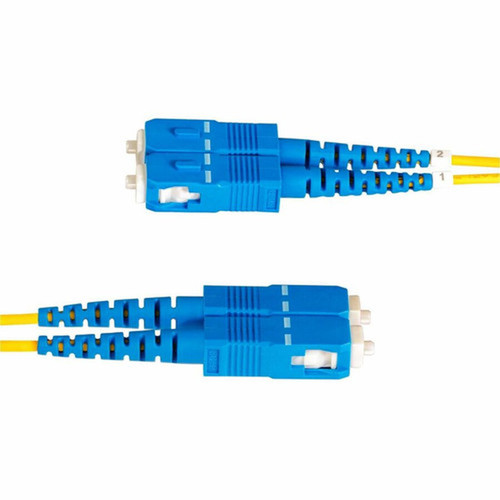

| Connector Type on Second End | SC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC/UPC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Laser-optimized,Bendable,Passive,Ultra Physical Contact (UPC),Flame Retardant,EMI Protection |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices is this fiber optic cable compatible with?
This LC to SC fiber patch cable is designed to connect network devices including servers, switches, storage devices, and telecommunications equipment. It supports 100Gbps networks and is backward compatible with OS1 standards, making it suitable for both new installations and upgrades in data center and enterprise environments.
What are the advantages of the LSZH jacket?
The Low Smoke Zero Halogen (LSZH) jacket minimizes toxic fume emissions if the cable combusts, enhancing safety in enclosed or poorly ventilated spaces like data centers and server rooms. This makes it preferable over standard PVC jackets where fire safety and air quality are concerns during installation or emergency situations.
How does the bend-insensitive fiber benefit installation?
The bend-insensitive fiber core maintains signal integrity even when routed around tight corners or through congested cable pathways. With a loaded bend radius of just 10mm (0.39 inches), it allows for more flexible installation in complex environments without compromising optical performance or risking signal loss.
What is the difference between UPC and PC polish on fiber connectors?
Ultra Physical Contact (UPC) polish provides a more precise, curved end-face on the fiber connector compared to standard Physical Contact (PC) polish. This results in improved return loss (≥55dB vs typical 40-50dB for PC), reducing signal reflections and enhancing performance in high-speed applications like 100G networks.
Can this cable be used for long-distance connections?
Yes, the OS2 single-mode fiber is designed for extended distance transmission with attenuation under 0.35dB/km. Combined with support for Coarse Wavelength Division Multiplexing (CWDM) across 1260-1625nm wavelengths, it enables reliable long-distance connections with greater channel isolation than multimode alternatives.
What documentation is included with the cable?
Each cable is individually tested and includes a performance report verifying its optical characteristics meet specifications. The cable also features numbered connectors for polarity identification, and comprehensive manufacturer documentation is available through the provided PDF links covering technical specifications and installation guidance.
