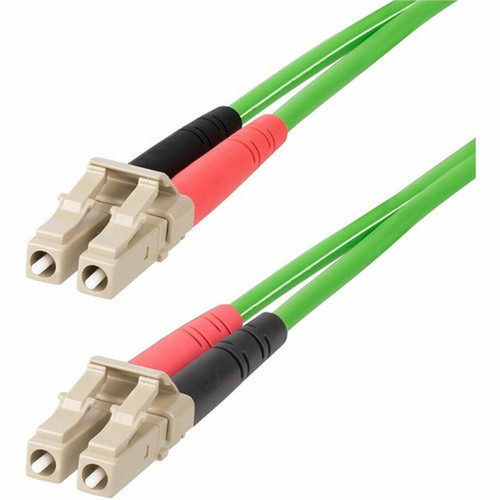

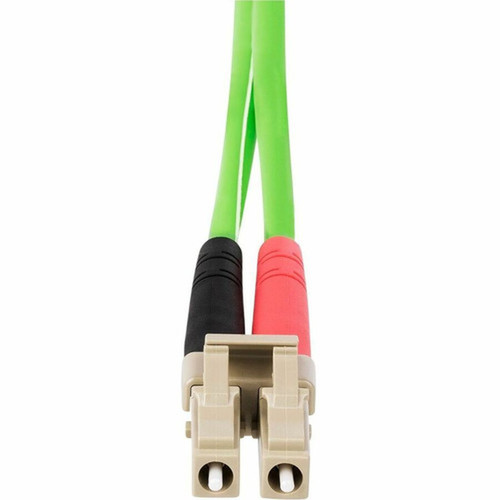

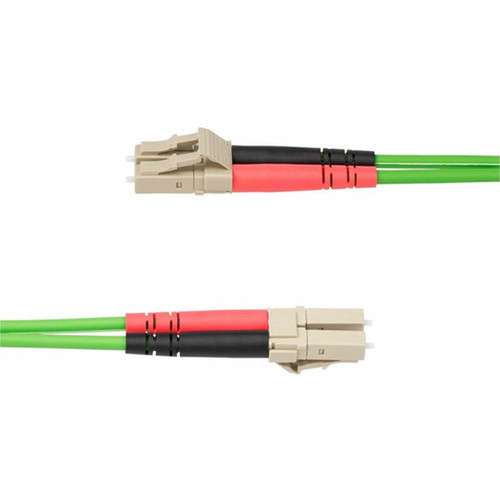

StarTech. com LCLCL-2M-OM5-FIBER 2m LC to LC OM5 Multimode Fiber Optic Cable - 50/125µm Duplex Zipcord - 40G/100G - LSZH - Green
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This OM5 fiber cable delivers enhanced bandwidth capacity through extended wavelength support from 850nm to 953nm, enabling Short Wavelength Division Multiplexing (SWDM) for greater channel isolation and improved performance over previous multimode standards. The cable achieves modal bandwidth of 4700MHz·km at 850nm and 2470MHz·km at 953nm.
Technical specifications include insertion loss of ≤0.3dB and return loss of ≥30dB, ensuring reliable signal transmission across high-speed network links. The cable's 2.9mm outer diameter and flexible zipcord design simplify cable management while maintaining structural integrity.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic cable combines advanced performance characteristics with practical installation features for reliable high-speed network connectivity.
Enhanced Network Performance
OM5 specification provides superior bandwidth capacity for 40G/100G networks compared to OM4 cables, with extended wavelength support enabling SWDM technology for efficient fiber utilization.
- Supports 10/40/100G network speeds
- Backward compatible with OM4/OM3
- Optimized for VCSEL and LED sources
Durable Construction
The cable features aramid-reinforced LSZH jacket that emits low toxic fumes if combusted, making it suitable for enclosed spaces and poorly ventilated areas while providing mechanical protection.
- LSZH flame-retardant jacket
- Aramid reinforcement for strength
- Individual performance testing
Installation Flexibility
Bend-insensitive fiber technology allows tight bending down to 3cm radius when unloaded, facilitating installation in crowded network cabinets and complex routing scenarios without signal degradation.
- 6cm loaded bend radius

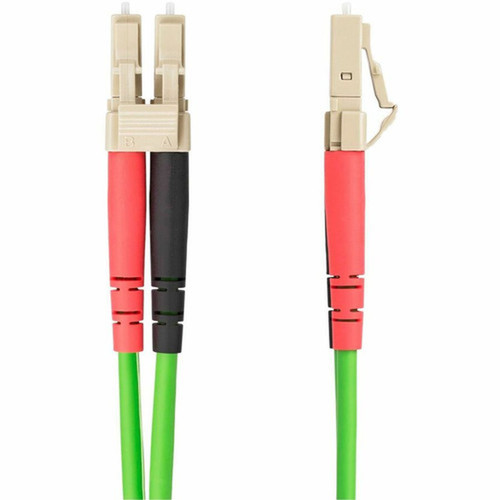

- Color-coded connectors for polarity
- Zipcord design for easy separation
Deployment / Use Cases
This LC to LC OM5 fiber cable is engineered for demanding network environments requiring high bandwidth and reliable connectivity between network equipment.
Primary deployment scenarios include connecting fiber switches to servers in data centers, establishing Storage Area Network (SAN) links, and interfacing with SFP+, QSFP+, and QSFP28 transceiver modules. The cable's performance characteristics make it suitable for backbone connections in enterprise networks, high-performance computing clusters, and telecommunications infrastructure.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Highlights
- OM5 multimode fiber optimized for 40G/100G network applications
- LC to LC connectors with UPC polish for improved return loss
- 2-meter (6.6-foot) length with duplex zipcord construction
- Bend-insensitive 50/125µm fiber with aramid-reinforced jacket
- LSZH flame-retardant jacket safe for enclosed installations
- Supports SWDM technology with 850-953nm wavelength range
- Backward compatible with OM4 and OM3 infrastructure
- Individually tested with included performance report
- RoHS compliant and environmentally friendly
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | LCLCL-2M-OM5-FIBER |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Category | OM5 |
| Cable Length | 6.6 ft (2 m) |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector Type on Second End | LC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x LC/UPC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Switch,Server |
| Data Transfer Rate | 100 Gbit/s |
| Features | Zip Cord,Bend Insensitive,Bendable,UPC Polished Connector,Flame Retardant |
| Physical Characteristics | |
| Product Color | Green |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the difference between OM5 and OM4 fiber cables?
OM5 fiber provides enhanced bandwidth capacity specifically optimized for Short Wavelength Division Multiplexing (SWDM) applications. While both support 40G/100G networks, OM5 offers extended wavelength support from 850nm to 953nm compared to OM4's 850nm focus, enabling greater channel isolation and more efficient fiber utilization in high-density network environments.
Can this cable be used with existing OM3 or OM4 network equipment?
Yes, this OM5 cable is fully backward compatible with OM4 and OM3 network infrastructure. You can deploy it in mixed environments where some equipment uses older multimode standards while maintaining the performance benefits of OM5 for newer high-speed connections. The cable works with all standard multimode transceivers including SFP+, QSFP+, and QSFP28 modules.
What does bend-insensitive fiber mean for installation?
Bend-insensitive fiber technology allows the cable to maintain optimal performance even when bent to tight radii during installation. This cable has a minimum bend radius of 3cm when unloaded and 6cm when loaded, significantly better than traditional fiber cables. This flexibility makes it ideal for crowded network cabinets, tight corners, and complex routing scenarios without risking signal loss or damage.
Why is the LSZH jacket important for network installations?
LSZH (Low Smoke Zero Halogen) jacket material emits minimal toxic fumes and smoke if exposed to fire, making it safer for enclosed spaces like data centers, network closets, and poorly ventilated areas. This cable's LSZH jacket combined with flame-retardant properties meets stringent safety standards for commercial and enterprise installations where fire safety is a priority.
What types of devices and connections is this cable designed for?
This LC to LC fiber cable is designed for connecting network switches, servers, storage devices, and other network equipment using multimode fiber interfaces. It's ideal for data center interconnects, SAN fabric connections, high-performance computing links, and enterprise network backbones. The cable supports connections between SFP+, QSFP+, and QSFP28 transceiver modules across various network equipment brands.
What performance specifications guarantee this cable's reliability?
Each cable undergoes individual testing with documented results showing insertion loss ≤0.3dB, return loss ≥30dB, and attenuation under 2.4dB/km. The OM5 specification ensures modal bandwidth of 4700MHz·km at 850nm and 2470MHz·km at 953nm. These performance metrics, combined with the lifetime warranty, guarantee reliable operation in demanding 40G/100G network environments.
