StarTech. com HDMM2MLS 2m/6ft HDMI 2. 0 Cable with Locking Screw - 4K 60Hz HDR High Speed with Ethernet - 18Gbps - Gold-Plated - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI cable meets the technical demands of modern AV systems with its 18 Gbit/s data transfer rate, enabling support for 4K resolution at 60Hz, 3D video, 21:9 aspect ratios, and 32-channel multi-stream audio with a 1536kHz sampling rate. It incorporates the HDMI Ethernet Channel (HEC) for network sharing over the cable and supports Audio Return Channel (ARC) and Multi-Stream Transport (MST). The 19-pin gold-plated connectors ensure optimal conductivity and corrosion resistance.
Built with a 34 AWG conductor and a rugged thermoplastic elastomer (TPE) jacket measuring 4.5 mm (0.18") in diameter, the cable is both flexible and stress-resistant. Full shielding with aluminum-mylar foil and braid provides effective EMI protection, safeguarding signal quality in electrically noisy environments.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The integrated screw-lock mechanism sets this cable apart by providing a physically secure connection that resists pull-out in dynamic or high-traffic settings. This feature is particularly valuable in commercial installations, digital signage, and portable AV racks where cable integrity is critical.
Secure Locking Design

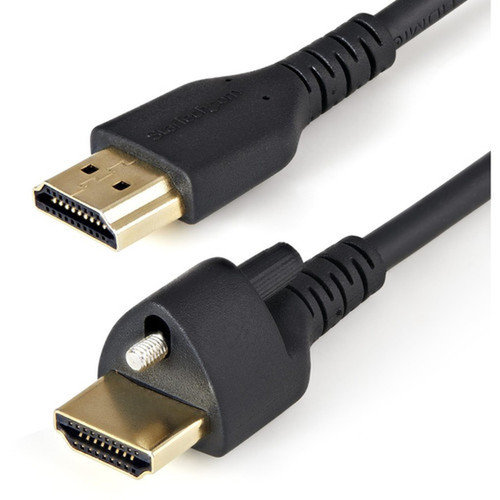

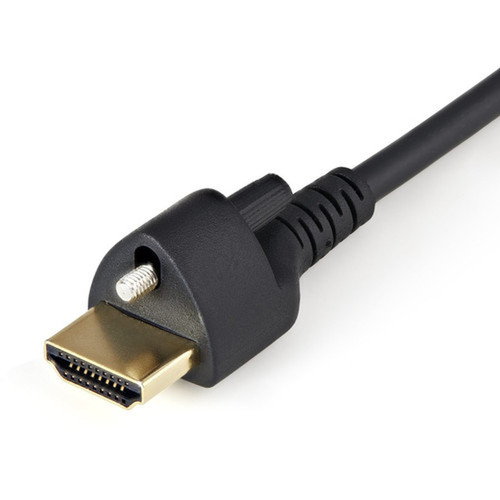

The removable screw on one connector locks securely into standard HDMI ports with screw-type receptacles, preventing disconnection from tension or vibration. The knurled thumbscrew enables quick, tool-free operation.
- Prevents accidental dislodging
- Tool-less installation/removal
- Compatible with screw-type HDMI ports
High-Fidelity Signal Integrity
Gold-plated contacts and comprehensive EMI shielding maintain signal purity over the full 2-meter length, ensuring stable 4K HDR video and high-resolution audio without degradation.
- Gold plating for optimal conductivity
- Aluminum-mylar foil and braid shielding
- Supports 18 Gbps bandwidth
Durable & Flexible Construction
The slim, flexible TPE jacket is halogen-free, RoHS certified, and designed to withstand frequent bending and physical stress without compromising the internal conductors.
- TPE material absorbs bending stress
- Halogen-free and RoHS compliant
- 4.5 mm diameter for easy routing
Deployment / Use Cases
This locking HDMI cable is ideal for environments where connection reliability is paramount. In office boardrooms and conference setups, it ensures that presentation systems remain securely connected despite frequent equipment movement or cable handling. For digital signage players and video walls, the locking mechanism prevents disruptions that could occur from public interaction or cleaning activities.
The cable also serves well in home theater systems, gaming setups, and with projectors where a stable, high-bandwidth link is needed for 4K HDR content. Its compatibility with StarTech.com extenders, switches, and devices from other brands makes it a versatile choice for integrators building mixed-vendor AV solutions. The flexible jacket and moderate length make it suitable for travel kits or temporary installations where cables are frequently coiled and transported.
Physical Profile
The cable features a sleek black TPE jacket that is both aesthetically discreet and physically resilient. With a diameter of just 4.5 mm (0.18"), it remains flexible for easy routing behind equipment or through cable management channels. The approximate weight of 2.20 oz (62.37 g) contributes to its portability, while the robust construction ensures long-term durability in daily use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.20 oz (62.37 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 2.20 oz (62.37 g)
- Length
- 6.6 ft (2 m)
Highlights
- Secure locking HDMI connector with removable screw prevents disconnection from tension or vibration.
- Supports 4K Ultra HD resolution at 60Hz with HDR for high-contrast, vibrant video.
- 18 Gbps bandwidth enables high-speed data transfer for 3D video and multi-channel audio.
- HDMI Ethernet Channel (HEC) allows network sharing over the same cable.
- Gold-plated 19-pin connectors ensure reliable signal transmission and corrosion resistance.
- Flexible, slim TPE jacket (4.5 mm diameter) is halogen-free and RoHS certified.
- Full EMI shielding with aluminum-mylar foil and braid protects against interference.
- Compatible with HDMI 2.0, 1.4, and earlier versions for broad device support.
- Ideal for office boardrooms, digital signage, home theaters, and portable AV setups.
- Backed by a StarTech.com lifetime warranty for long-term reliability assurance.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMM2MLS |
| Brand Name | StarTech.com |
| Product Name | 2m/6ft HDMI Cable with Locking Screw - 4K 60Hz HDMI 2.0 Cable |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 6.6 ft (2 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,TV,Monitor,Projector,Home Theater System,Digital Signage Player,Port Extender,Switch |
| American Wire Gauge | 34 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | Screw Lock,HDMI Ethernet Channel (HEC),Flexible,Multi-Stream Transport (MST) Support,Audio Return Channel (ARC),Stress Resistant,Rugged,Halogen Free,Bend Resistant,HDR Support,EMI Protection |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the purpose of the locking screw on this HDMI cable?
The locking screw provides a physically secure connection that prevents the cable from accidentally dislodging due to tension, vibration, or movement. This is especially useful in commercial environments like conference rooms, digital signage installations, or portable AV racks where cable integrity is critical. The knurled thumbscrew allows for tool-less installation and removal.
Does this cable support 4K resolution and HDR?
Yes, this High Speed HDMI 2.0 cable fully supports 4K Ultra HD resolution (3840 x 2160) at a 60Hz refresh rate with HDR (High Dynamic Range). This ensures high-contrast, vibrant video quality for compatible displays, media players, and gaming consoles.
What is the maximum data transfer rate of this HDMI cable?
The cable supports a data transfer rate of 18 Gbit/s (gigabits per second). This bandwidth is sufficient for 4K @ 60Hz video, 3D content, high-resolution multi-channel audio, and data transmission over the integrated HDMI Ethernet Channel.
Is this cable compatible with older HDMI versions?
Yes, the cable is backward compatible with HDMI 1.4, 1.3, and earlier specifications. It will work with any device featuring a standard HDMI port, though some advanced features like Ethernet Channel or higher bandwidths require corresponding support from the connected equipment.
What devices can I connect with this locking HDMI cable?
This cable is designed for audio/video devices including TVs, monitors, projectors, home theater systems, digital signage players, port extenders, and switches. It works with both standard HDMI ports and those equipped with screw-type receptacles for the locking mechanism.
What environmental certifications does this cable have?
The cable is environmentally friendly and complies with EU RoHS (Restriction of Hazardous Substances), REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), and WEEE (Waste Electrical and Electronic Equipment Directive) standards. The TPE jacket is halogen-free and RoHS certified.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
