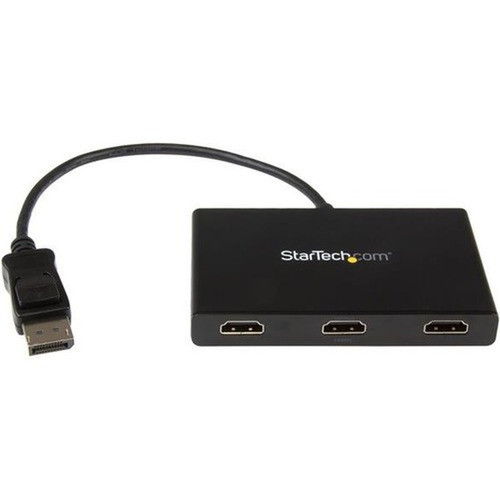

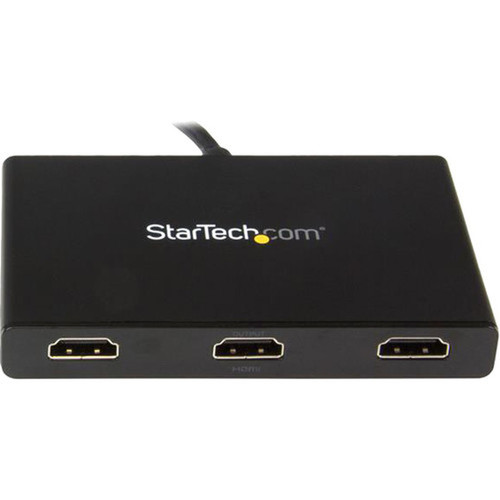

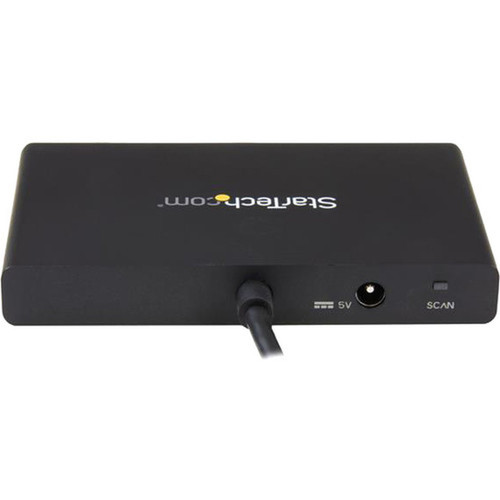

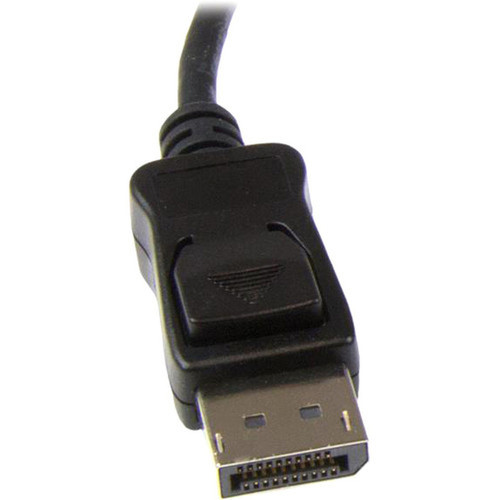

StarTech.com 3-Port Multi Monitor Adapter, DisplayPort to 3x HDMI MST Hub, Triple 1080p, Video Splitter for Extended Desktop Mode, - - (MSTDP123HD)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Quick Install Guide
Maximum Video Resolution: 3840 × 2160
DisplayPort: Yes
HDMI Out: Yes
Number of DisplayPort Inputs: 1
Number of HDMI Outputs: 3
Maximum Operating Distance: 49.87 ft (15200 mm)
Input Voltage: 120 V AC,230 V DC
Product Color: Black
Product Material: Plastic
Height: 0.60" (15.24 mm)
Width: 4.10" (104.14 mm)
Length: 13" (330.20 mm)
Weight (Approximate): 4.48 oz (127 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- MULTI MONITOR ADAPTER FOR WINDOWS: DisplayPort to HDMI MST hub drives up to 3x HDMI monitors in extended or duplicate mode using a DP port on Windows desktop PCs or laptops
Not compatible with macOS - DISPLAY RESOLUTION: Multiple monitor DisplayPort to HDMI MST hub supports HD resolutions up to 3x 1080p 60Hz on three monitors, or dual 4K 30Hz on two monitors, or can support three ultrawide displays up to 2560x1080
- COMPATIBILITY: 3-Port DisplayPort to HDMI MST video splitter requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, NVidia & Intel video cards; Not compatible with laptops/computers with HDMI output ports
- INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office; MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
- GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MSTDP123HD |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub |
| Packaged Quantity | 1 Each |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| HDMI Out | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of HDMI Outputs | 3 |
| Media & Performance | |
| Maximum Operating Distance | 49.87 ft (15200 mm) |
| Power Description | |
| Input Voltage | 120 V AC,230 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Plastic |
| Height | 0.60" (15.24 mm) |
| Width | 4.10" (104.14 mm) |
| Length | 13" (330.20 mm) |
| Weight (Approximate) | 4.48 oz (127 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
