StarTech. com HDMI2-CABLE-4K60-30C High Speed HDMI 2. 0 Cable - 1ft - 0. 3m - 18Gbps - 4K 60Hz/1440p 144Hz - HDR10 - Gold-Plated - TPE Jacket - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built to HDMI 2.0 standards, this cable delivers 18Gbps bandwidth that enables 4K video at 60Hz, 1440p at 144Hz, and 1080p at 240Hz refresh rates. The 3840 x 2160 resolution support ensures crisp, detailed imagery for gaming, content creation, and media playback applications.
The cable incorporates HDMI Ethernet Channel (HEC) capability, allowing for network sharing over the HDMI connection without requiring separate Ethernet cables. With support for 32-channel audio and 7.1 surround sound via Audio Return Channel (ARC), it delivers comprehensive audio-visual performance in a single compact cable.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages

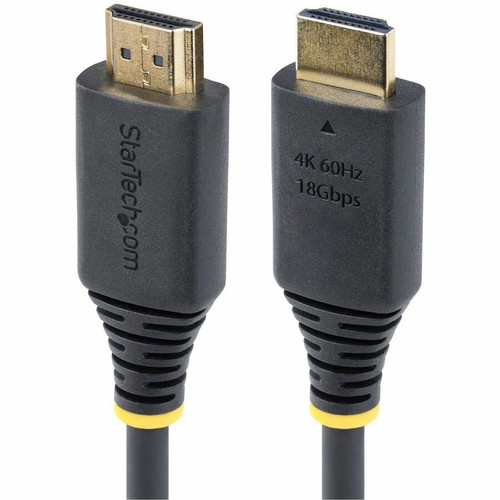

This HDMI cable combines premium construction with advanced feature support to deliver reliable high-bandwidth connectivity for demanding applications. The gold-plated connectors are rated for over 10,000 insertion cycles, while the braided shielding provides enhanced EMI protection against signal interference.
Premium Durability
Tested to withstand 2,000 bending cycles at ±60 degrees, the cable features halogen-free, RoHS-compliant materials with reinforced strain reliefs for long-term reliability in both fixed installations and frequently reconfigured setups.
- 2,000+ bend cycles
- Halogen-free construction
- RoHS compliant
- Reinforced strain relief
Enhanced Connectivity
Beyond basic video transmission, the cable supports Consumer Electronics Control (CEC) for single-remote operation of connected devices, HDMI Ethernet Channel for network sharing, and comprehensive HDCP 2.2 copy protection for secure 4K content playback.
- CEC support
- HEC capability
- HDCP 2.2 compliant
- Backward compatible
Deployment / Use Cases

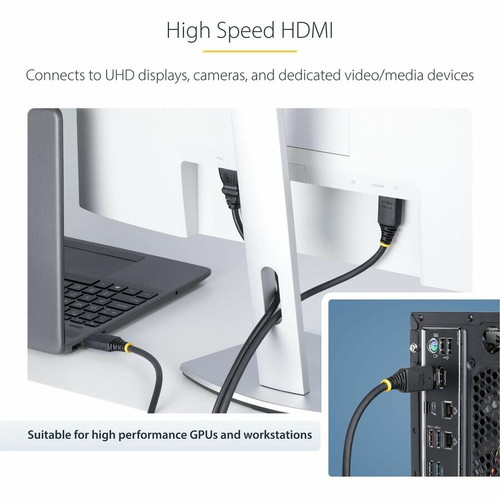

This high-speed HDMI cable is specifically designed for applications requiring maximum bandwidth and feature support. It serves as an ideal connection between 4K UHD displays and source devices such as gaming consoles, media players, and high-performance computing equipment.
The 1-foot length makes it perfect for clean, organized installations where minimal cable management is desired, such as connecting monitors to docking stations, linking A/V receivers to displays, or connecting external GPUs to workstations. The compact form factor reduces clutter while maintaining full 18Gbps performance.
Gaming & High-Performance Computing
Deliver 144Hz refresh rates at 1440p resolution for competitive gaming or connect high-performance GPUs to 4K displays for content creation and workstation applications with minimal latency and maximum color fidelity.
- 144Hz at 1440p
- Low latency
- HDR10 support
- GPU compatible
Home Theater & Professional AV
Connect 4K UHD displays to soundbars, A/V receivers, media players, and cameras with support for ARC audio return, 32-channel audio, and dynamic HDR10 for immersive home theater experiences and professional video production workflows.
- ARC support
- 32-channel audio
- HDR10 compatible
- Professional AV
Physical Profile
The cable features a sleek black design with a 6mm (0.24in) outer diameter that allows for easy routing in tight spaces. The Thermoplastic Elastomer (TPE) jacket provides both flexibility and durability, while the Santoprene and TPE rubber construction ensures the cable maintains its shape and performance through repeated use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.40 oz (39.69 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.40 oz (39.69 g)
- Length
- 1 ft (0.30 m)
Highlights
- 18Gbps bandwidth for 4K 60Hz and 1440p 144Hz video
- Full HDMI 2.0 specification with HDR10, ARC, and HDCP 2.2 support
- Gold-plated connectors rated for over 10,000 insertion cycles
- Durable TPE jacket with reinforced strain reliefs
- Braided shielding with Aluminum Mylar Foil for EMI protection
- Backward compatible with HDMI 1.4 and 1.2 devices
- Halogen-free, RoHS-compliant construction
- Compact 1-foot (0.3m) length for clean installations
- Supports HDMI Ethernet Channel (HEC) for network sharing
- Consumer Electronics Control (CEC) for single-remote operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HDMI2-CABLE-4K60-30C |
| Brand Name | StarTech.com |
| Product Name | HDMI Audio/Video Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI |
| Cable Length | 1 ft (0.30 m) |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,TV,Monitor,Display,A/V Receiver,Soundbar,External GPU,Workstation,Docking Station |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | HDR10 Support,Audio Return Channel (ARC),HDCP 2.2,Flexible,Strain Relief,Durable,HDMI Ethernet Channel (HEC),Braided,EMI Protection,Consumer Electronics Control (CEC),Passive,Halogen Free |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Santoprene,TPE Rubber |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 1.40 oz (39.69 g) |
User Manual
FAQ
What resolutions and refresh rates does this HDMI cable support?
This HDMI 2.0 cable supports 4K resolution (3840 x 2160) at 60Hz, 1440p at 144Hz, and 1080p at 240Hz refresh rates. The 18Gbps bandwidth ensures smooth, high-frame-rate video transmission for gaming, content creation, and media playback applications.
Is this cable backward compatible with older HDMI versions?
Yes, the cable is fully backward compatible with HDMI 1.4 and 1.2 devices. While it delivers full HDMI 2.0 performance when connected to compatible equipment, it will automatically negotiate the highest supported bandwidth with older HDMI sources and displays.
What audio features does this HDMI cable support?
The cable supports 32-channel audio and 7.1 surround sound through the Audio Return Channel (ARC) feature. This allows audio to be sent from a display back to an A/V receiver or soundbar without requiring a separate audio cable, simplifying home theater setups.
How durable are the connectors on this cable?
The gold-plated connectors are rated for over 10,000 insertion cycles and feature reinforced strain reliefs. The cable itself is tested to withstand 2,000 bending cycles at ±60 degrees, ensuring long-term reliability in both permanent installations and frequently reconfigured setups.
What is the cable length and is it suitable for tight spaces?
The cable is 1 foot (0.30 meters) long with a 6mm (0.24in) outer diameter, making it ideal for clean, organized installations where minimal cable management is desired. The compact form factor reduces clutter while maintaining full 18Gbps performance.
Does this cable support HDR content?
Yes, the cable supports Dynamic HDR10 with 12-bit processing for vibrant, lifelike colors and contrast. Combined with HDCP 2.2 copy protection, it ensures secure playback of 4K HDR content from streaming services, Blu-ray players, and gaming consoles.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
