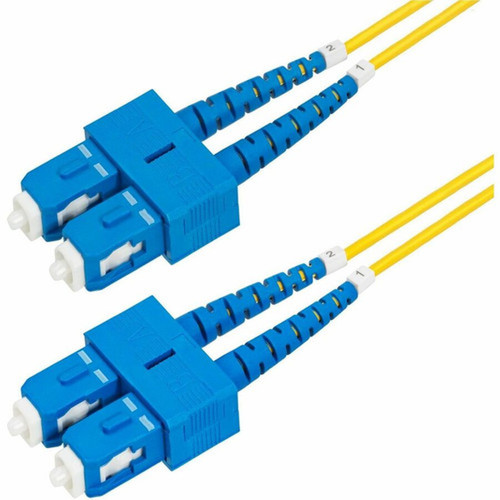

StarTech. com SMDOS2SCSC30M 30m - 98. 4ft SC to SC UPC OS2 Single Mode Duplex Fiber Optic Cable - 9/125100Gbps - LSZH - Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic cable features 9/125µm single mode OS2 fiber with Ultra Physical Contact (UPC) polished SC connectors, ensuring low insertion loss (≤0.3dB) and high return loss (≥55dB). The laser-optimized design supports wavelengths from 1260-1625nm, enabling Coarse Wavelength Division Multiplexing (CWDM) for extended channel isolation over long distances.

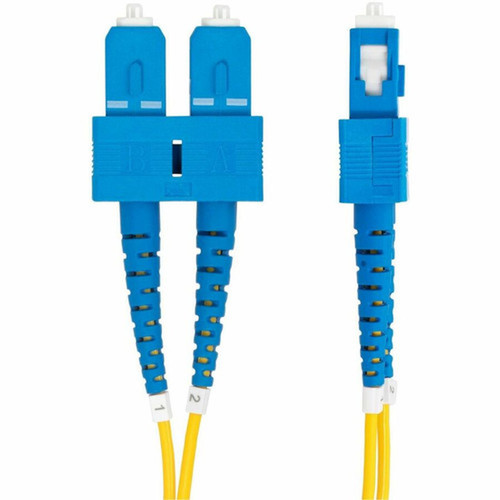

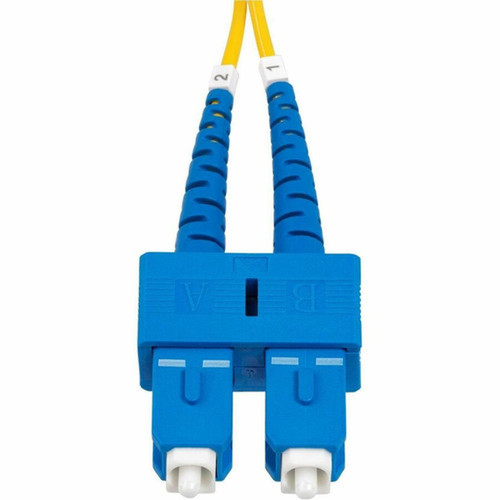

The cable construction includes individually tested fibers with guaranteed performance, and each connector is number-labeled for polarity identification. With a 2mm outer diameter and loaded/unloaded bend radius of 10mm, the cable offers flexibility without compromising signal integrity.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic patch cable combines performance, safety, and durability for demanding network environments. The LSZH jacket material emits low toxic fumes if combusted, making it safe for enclosed or poorly ventilated spaces while meeting EU RoHS, REACH, and WEEE environmental compliance standards.
Superior Signal Integrity
UPC polished connectors reduce back reflection and improve return loss compared to PC polish, ensuring stable signal transmission for high-speed networks.
- ≤0.3dB insertion loss
- ≥55dB return loss
- 1260-1625nm wavelength support
Enhanced Installation Flexibility
Bend-insensitive fiber technology allows tight bends without signal degradation, facilitating routing in crowded racks and cable management systems.
- 10mm loaded bend radius
- Aramid-reinforced jacket
- 2mm slim profile
Deployment / Use Cases
This SC to SC fiber patch cable is ideal for connecting network equipment in data centers, enterprise server rooms, and telecommunications infrastructure. It provides reliable interconnections between servers, switches, storage devices, and other network equipment requiring single mode fiber connectivity.
Common applications include backbone connections for 40G/100G Ethernet networks, CWDM system deployments, and long-distance links where low attenuation and high bandwidth are critical. The cable's compatibility with OS1 standards allows seamless integration with existing infrastructure during upgrades or expansions.
Data Center Interconnects
Connect top-of-rack switches to core switches or storage arrays with high-density SC connectors that maintain signal quality over 30-meter runs.
Telecommunications Backbone
Support CWDM applications with extended wavelength range for greater channel isolation in service provider and enterprise network environments.
Highlights
- 30-meter (98.4-foot) OS2 single mode duplex fiber optic patch cable

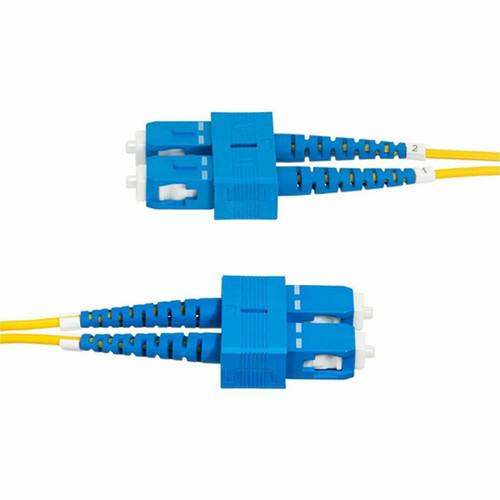

- SC to SC UPC connectors on both ends for low insertion loss
- Supports 40G/100G networks with 100 Gbit/s data transfer rate
- Bend-insensitive fiber with 10mm bend radius for tight installations
- LSZH jacket emits low toxic fumes and is flame retardant
- Yellow color for easy identification of single mode fiber
- UPC polish improves return loss over PC polish
- Backward compatible with OS1 fiber standards
- Individually tested with performance test report included
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMDOS2SCSC30M |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 98.4 ft (30 m) |
| Connector Type on First End | SC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x SC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Ultra Physical Contact (UPC),Bend Insensitive,Flame Retardant,Bend Resistant |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Jacket Material | Low Smoke Zero Halogen |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the difference between OS1 and OS2 single mode fiber?
OS2 single mode fiber has lower attenuation specifications than OS1, typically below 0.4dB/km compared to OS1's 1.0dB/km. This cable uses OS2 fiber with attenuation under 0.35dB/km, making it suitable for longer distances and higher bandwidth applications like 40G/100G networks while maintaining backward compatibility with OS1 equipment.
What does UPC polish mean for SC connectors?
UPC (Ultra Physical Contact) polish refers to a connector finishing technique that creates a slightly curved end face for better physical contact between fibers. This reduces back reflection and improves return loss compared to PC (Physical Contact) polish, resulting in better signal integrity for high-speed data transmission applications.
Why is the LSZH jacket important for network cables?
LSZH (Low Smoke Zero Halogen) jacket material emits minimal toxic fumes and smoke when exposed to fire, making it safer for enclosed spaces like data centers and server rooms. This cable's LSZH jacket meets EU RoHS, REACH, and WEEE environmental standards while providing flame-retardant properties for enhanced safety in network installations.
What is the maximum distance this cable supports for 100G networks?
As an OS2 single mode fiber cable, it supports 100G Ethernet connections over distances up to 40km with appropriate transceivers, though actual distance depends on network equipment and signal budget. The 30-meter length makes it ideal for data center interconnects, with low attenuation under 0.35dB/km ensuring signal quality over the entire run.
Can this cable be used in outdoor installations?
This cable is designed for indoor use with its LSZH jacket and standard construction. For outdoor installations, you would need a cable specifically rated for outdoor environmental conditions with additional protection against moisture, UV exposure, and temperature extremes that this indoor-rated patch cable does not provide.
What equipment is compatible with this SC to SC fiber cable?
This cable connects any network equipment with SC fiber ports, including switches, routers, servers, storage arrays, and media converters. It supports devices from major manufacturers like Cisco, Juniper, Dell, HPE, and others that use SC connectors for single mode fiber connections in 10G, 40G, and 100G network environments.
