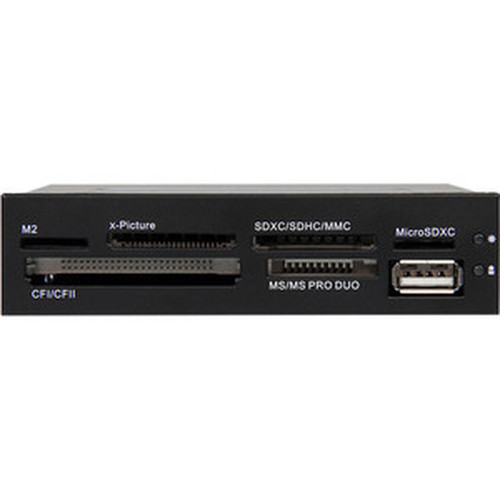

StarTech.com 35FCREADBK3 3.5" Front Bay 22-in-1 USB 2.0 Internal Memory Card Reader - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This card reader's technical architecture centers on broad format compatibility and straightforward integration. The 22-in-1 support spans CompactFlash Type I and II, the full SD family (SD, miniSD, microSD, SDHC, SDXC), MultiMediaCard variants (MMC, RS-MMC, MMCplus, MMCmobile, MMCmicro), Sony Memory Stick lineages (Memory Stick, Duo, PRO, PRO-HG Duo, ROM, M2), and xD-Picture Card. This coverage ensures compatibility with professional photography, industrial logging, medical imaging, and archival media.
The internal design uses a single USB 2.0 host connection, routed via an included 9-pin IDC cable to a motherboard header. This implementation maintains a clean front panel with no external cable clutter. The reader draws less than 500 mA from the USB bus, adhering to the USB 2.0 power specification for seamless operation without auxiliary power. The metal chassis provides EMI shielding and physical protection for the internal controller board and card slots.
Key Product Advantages
The 35FCREADBK3 delivers distinct advantages for system integrators and IT departments requiring reliable, high-capacity memory card access. Its front-bay placement provides immediate user access without occupying valuable desktop space or USB ports. The unified support for 22 card types future-proofs workstations against format obsolescence and reduces adapter inventory.
Consolidated Format Support
A single internal solution replaces multiple external readers, covering CompactFlash, SD families, MMC variants, Memory Stick, and xD cards. This reduces cable clutter, desktop footprint, and adapter costs.
- Eliminates external adapter dongles
- Simplifies user training and access
- Reduces physical port consumption
Integrated Front-Panel Design
Installs into any standard external 3.5" drive bay, matching the aesthetic of optical drives and front-panel ports. The black metal faceplate blends with most PC and server chassis designs.
- Matches existing drive bay layouts
- Provides direct user access
- Maintains a professional, built-in appearance
Deployment / Use Cases
This internal card reader is engineered for environments where frequent memory card access is required but desk space is limited. Its front-bay installation makes it ideal for media production workstations, where editors need rapid offloading from camera cards. The consolidated format support handles SD cards from DSLRs, CompactFlash from older professional cameras, and Memory Stick from legacy Sony devices within a single system.
In digital signage and kiosk deployments, the reader enables content updates via SD or microSD cards without opening the chassis. IT service desks can use it for diagnostics and data recovery from a wide array of customer devices. The internal mounting also suits security DVR/NVR systems that record to removable media for evidence handling. For industrial PCs and embedded controllers, the reader provides reliable data logging from MMC or SD cards used in sensors and monitoring equipment.
Physical Profile
The reader features a compact black metal enclosure measuring 4.10" (104.14 mm) wide by 1" (25.40 mm) high, designed to fit precisely into a standard 3.5" external drive bay. The faceplate is finished in matte black to coordinate with most PC and server front panels. Installation uses the included bag of mounting screws, securing the unit through the side rails of the drive bay. The lightweight design at 5.80 oz (164.43 g) minimizes stress on the bay structure. The durable metal construction resists wear from frequent card insertion and ejection.
- Width
- 4.10" (104.14 mm)
- Height
- 1" (25.40 mm)
- Weight
- 5.80 oz (164.43 g)
What's in the Box
The package includes all components necessary for installation and operation.
Highlights
- Supports 22 memory card types including CompactFlash, SD, microSD, MMC, Memory Stick, and xD
- Installs into any standard external 3.5" front drive bay for integrated access
- USB 2.0 interface with data transfer rates up to 480 Mbps
- Bus-powered from the USB connection—no external power adapter required
- Durable black metal enclosure for professional appearance and protection
- Includes 9-pin IDC cable, mounting screws, and instruction manual
- RoHS compliant and environmentally friendly
- Backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 35FCREADBK3 |
| Brand Name | StarTech.com |
| Product Name | 3.5in Front Bay 22-in-1 USB 2.0 Internal Multi Media Memory Card Reader - Black |
| Packaged Quantity | 1 Each |
| Product Type | Flash Reader |
| Technical Information | |
| Number of Memory Card Types Supported | 22-in-1 |
| Memory Card Supported | CompactFlash Type I,CompactFlash Type II,SD,miniSD,microSD,SDHC,SDXC,MultiMediaCard (MMC),Reduced Size MultiMediaCard (MMC),Memory Stick,Memory Stick Duo,Memory Stick PRO,Memory Stick PRO Duo,Memory Stick PRO-HG Duo,Memory Stick ROM,Memory Stick Micro (M2),xD-Picture Card,MMCmobile,MMCplus,Micro Size MultiMediaCard (MMC),microSDHC |
| Interfaces/Ports | |
| Host Interface | USB 2.0 |
| Total Number of USB Ports | 1 |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 4.10" (104.14 mm) |
| Form Factor | Internal |
| Weight (Approximate) | 5.80 oz (164.43 g) |
| Product Color | Black |
| Miscellaneous | |
| Package Contents | 3.5in Front Bay 22-in-1 USB 2.0 Internal Multi Media Memory Card Reader - Black 1 x 9-pin IDC USB Cable 1 x Bag of Mounting Screw 1 x Instruction Manual |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What memory card formats does this StarTech.com reader support?
The 35FCREADBK3 supports 22 card formats. This includes CompactFlash Type I and II; the SD family (SD, miniSD, microSD, SDHC, SDXC); MultiMediaCard variants (MMC, Reduced Size MMC, MMCplus, MMCmobile, Micro Size MMC); Sony Memory Stick types (Memory Stick, Duo, PRO, PRO Duo, PRO-HG Duo, ROM, Memory Stick Micro M2); and xD-Picture Card. This broad compatibility covers most consumer, professional, and legacy media formats.
How do I install this internal card reader into my computer?
Installation requires a free external 3.5" drive bay on your PC case. Mount the reader into the bay using the included screws. Connect the included 9-pin IDC cable from the reader to an available USB 2.0 header on your motherboard. The reader is powered directly through this USB connection, so no separate power cable is needed. Refer to the included instruction manual for detailed mounting and cabling diagrams.
Does this card reader require a separate power supply?
No, the reader is bus-powered and draws all necessary power directly from the USB 2.0 connection to the motherboard. It complies with the USB 2.0 specification, consuming less than 500 mA. This eliminates the need for an external power adapter or Molex power cable, simplifying installation and reducing cable clutter inside the chassis.
What is the data transfer speed of this USB 2.0 card reader?
The reader supports High-Speed USB 2.0 with a maximum theoretical data transfer rate of 480 megabits per second (Mbps). Actual throughput will vary based on the specific memory card's speed class, the card's controller, and system performance. This speed is sufficient for efficient transfer of high-resolution photos, video clips, and large data sets from supported card formats.
What is included in the package with the card reader?
The package contains the StarTech.com 3.5in Front Bay 22-in-1 USB 2.0 Internal Memory Card Reader in black, one 9-pin IDC USB cable for connecting to the motherboard header, one bag of mounting screws for securing the reader in the drive bay, and an instruction manual. All necessary hardware for a standard installation is provided.
What warranty does StarTech.com provide for this product?
StarTech.com backs the 35FCREADBK3 with a 2-year limited warranty. This warranty covers defects in materials and workmanship under normal use. The product is also RoHS (Restriction of Hazardous Substances) compliant, meeting environmental standards for reduced hazardous materials. For warranty service or support, contact StarTech.com directly with your proof of purchase.
