StarTech. com N6LPATCH35BK CAT6 Ethernet Patch Cable - 35ft (10. 7m) LSZH 10GbE Snagless 100W PoE UTP RJ45 Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable complies with ANSI/TIA-568-2.D Category 6 requirements and is ETL verified for performance and safety. It features 24 AWG stranded copper conductors that provide superior conductivity and flexibility compared to copper-clad aluminum alternatives. The cable operates at a frequency of 250 MHz and supports multi-gigabit speeds including 1, 2.5, 5, and 10 Gbps over distances up to 55 meters.
The unshielded twisted pair (UTP) construction with four pairs of wires ensures reliable data transmission with low near-end crosstalk (NEXT) and return loss. The PVA copolymer jacket offers excellent resistance to bending, fraying, and physical damage, while the molded strain relief enhances durability at connection points.
Key Product Advantages
This Ethernet cable combines performance, safety, and durability for professional network installations. The LSZH jacket material makes it ideal for use in enclosed spaces, data centers, and commercial buildings where fire safety is a priority. The 100W PoE++ support enables power delivery to high-demand devices without separate power cables.
Enhanced Safety
The LSZH jacket produces minimal smoke and no halogenated gases when exposed to fire, reducing health risks and equipment damage in emergency situations.
- Low smoke emission
- Zero halogen content
- Reduced toxic fumes
Superior Connectivity
Gold-plated RJ45 connectors and 50-micron gold-plated pins maintain signal integrity and prevent corrosion, ensuring stable network connections over time.
- Gold contact plating
- Snagless boot design
- Molded strain relief
Deployment / Use Cases
This versatile CAT6 patch cable is suitable for various networking scenarios where reliable high-speed connectivity and PoE support are required. Its 35-foot length provides flexibility for connecting equipment across server racks, office workstations, or between floors in commercial buildings.
Common applications include connecting network switches to servers in data centers, powering VoIP phones and wireless access points through PoE, linking security cameras to network video recorders, and establishing connections between routers and workstations in office environments. The cable also supports legacy Cat5e and earlier standards for backward compatibility.
Data Center Installations
Connect servers, storage arrays, and network switches with 10GbE capability and PoE support for in-rack power distribution.
Commercial Deployments
Power and connect security cameras, access points, and VoIP systems in offices, retail spaces, and educational facilities.
Physical Profile
The cable features a sleek black design that blends with most network environments. With an approximate weight of 13.90 ounces (394.06 grams), it remains manageable despite its 35-foot length. The flexible construction allows for easy routing through cable management systems and tight spaces without compromising performance.
- Weight
- 13.90 oz (394.06 g)
- Length
- 35 ft (10.67 m)
Highlights
- 35-foot CAT6 Ethernet patch cable with 10 Gbps data transfer capability
- LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety

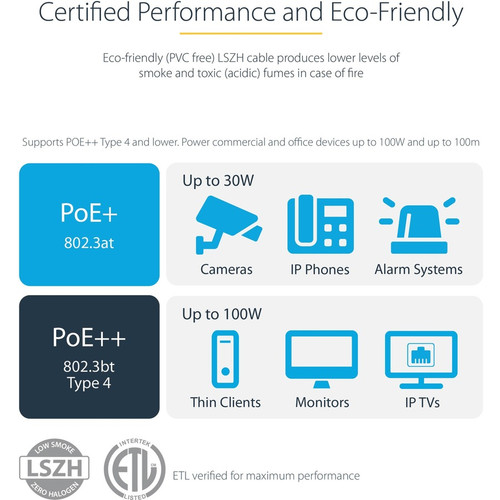

- Supports Power over Ethernet (PoE) up to 100W (IEEE 802.3bt type 4)
- Snagless boot design prevents accidental disconnection
- Gold-plated RJ45 connectors for optimal signal integrity
- 24 AWG stranded copper conductors for flexibility and conductivity
- ETL verified to meet ANSI/TIA-568.2-D standards
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6LPATCH35BK |
| Brand Name | StarTech.com |
| Product Name | Cat.6 Patch Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 35 ft (10.67 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | LSZH |
| Device Supported | Network Device,Network Card,Server,Router,NAS,VoIP Device,PoE-enabled Device,Workstation,Notebook,IPTV,Security Camera |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | Strain Relief,Near End Cross Talk (NEXT),PVC Free,PoE,Molded,Damage Resistant,Flexible,Bendable,Crosstalk Protection,Stranded,Fray Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Copper,Copper Clad Aluminum |
| Insulation Material | High-density Polyethylene (HDPE) |
| Weight (Approximate) | 13.90 oz (394.06 g) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this CAT6 cable?
This CAT6 Ethernet cable supports data transfer rates up to 10 Gbps (10 Gigabit per second). It is also backward compatible with lower speeds including 1, 2.5, and 5 Gbps, making it suitable for multi-gigabit network environments and future upgrades.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, complying with IEEE 802.3bt type 4 (PoE++) standards. This allows it to deliver both data and power to compatible devices such as VoIP phones, wireless access points, security cameras, and other PoE-enabled equipment without separate power cables.
What does LSZH mean and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that produces minimal smoke and no halogenated gases when exposed to fire. This is crucial for safety in enclosed spaces like data centers, server rooms, and commercial buildings, as it reduces toxic fumes and corrosion risks to equipment during fire incidents.
What types of devices are compatible with this Ethernet cable?
This cable is compatible with a wide range of network devices including servers, routers, switches, NAS units, VoIP equipment, workstations, notebooks, IPTV systems, security cameras, and any PoE-enabled device. It supports both data transmission and power delivery for PoE devices.
What is the advantage of the snagless boot design?
The snagless boot design features a protective cover over the RJ45 connector latch that prevents it from catching on other cables or equipment. This reduces accidental disconnections, minimizes strain on the connector, and extends the cable's lifespan in high-density network environments.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable, meaning it does not have additional foil or braid shielding around the wire pairs. UTP cables are suitable for most office and data center environments where electromagnetic interference is minimal, and they offer greater flexibility and easier installation compared to shielded alternatives.
