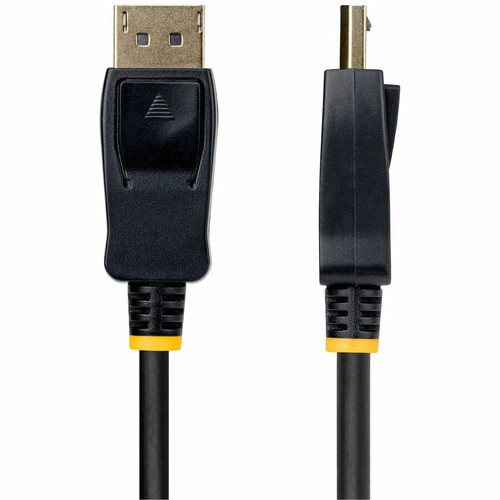

StarTech. com 3F-DP-HDMI-4K60-GR StarTech 3ft DisplayPort to HDMI Adapter Cable - 4K 60Hz HDR - Active - Gripping Connector
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter cable implements DisplayPort 1.4 to HDMI 2.0b conversion through an integrated active chipset that maintains signal integrity across the 3-foot length. The 18 Gbit/s bandwidth supports 4K resolution at 60Hz with 8-bit color depth and dithering for smooth gradient transitions. HDR compatibility expands the dynamic range for brighter highlights and deeper shadows, while HDCP 2.3 ensures compatibility with the latest protected content from streaming services and media applications.
The cable features gold-plated connectors with EMI shielding to minimize signal interference and maintain consistent performance in electrically noisy environments. The DisplayPort end incorporates a latching mechanism that securely locks into source devices, while the HDMI end includes a gripping connector design that resists accidental disconnections from tension or vibration. This dual-securement approach makes the cable ideal for permanent installations, mobile workstations, and environments where cable movement is common.
Key Product Advantages
This DisplayPort to HDMI adapter cable combines multiple reliability features that distinguish it from basic passive adapters. The integrated active converter ensures consistent signal quality without depending on source device capabilities, while the gripping HDMI connector and latching DisplayPort mechanism provide physical security that prevents accidental disconnections during use.
Enterprise-Grade Durability
Rigorously tested in StarTech's Innovation Lab, this cable meets enterprise reliability standards with a durable PVC jacket and reinforced connectors. The 3-year limited warranty supports large-scale deployments and long-term installations.
- PVC jacket material
- Tested for enterprise use
- 3-year warranty
Universal Compatibility
Works with any operating system and hardware platform without drivers or software. Utilizes integrated or dedicated GPU capabilities from Intel, AMD, or Nvidia to deliver high-performance graphics with minimal CPU overhead.
- No drivers required
- OS independent
- GPU optimized
Deployment / Use Cases
This adapter cable serves multiple professional and commercial applications where reliable DisplayPort to HDMI conversion is required. IT departments can deploy it across organizations for standardizing display connections during Windows 11 migrations or hardware refreshes, ensuring consistent video output from newer computers with DisplayPort outputs to existing HDMI displays.
In AV integration scenarios, the cable connects DisplayPort sources like media players, PCs, or external GPUs to HDMI displays, monitors, or projectors in conference rooms, digital signage installations, and control rooms. The HDCP 2.3 support makes it suitable for protected content playback in educational, corporate, and hospitality environments. Security system integrators can use it to connect DisplayPort output security workstations to HDMI monitoring displays while maintaining high-resolution video feeds.
Corporate IT Deployments
Standardize display connectivity across mixed-hardware environments during OS upgrades and hardware refresh cycles. The driverless operation simplifies deployment across diverse user systems.
- Windows 11 compatibility
- Mixed hardware support
- Simplified deployment
AV & Digital Signage
Connect media players and content sources to displays in conference rooms, lobbies, and retail environments. HDR support enhances visual impact for promotional and informational content.
- HDR for visual impact
- Protected content ready
- Reliable signal transmission
Highlights
- Active DisplayPort 1.4 to HDMI 2.0b adapter cable with integrated conversion
- Supports 4K resolution at 60Hz with HDR for enhanced visual quality
- 18 Gbit/s bandwidth through HBR3 technology maintains signal integrity
- Gripping HDMI connector prevents accidental disconnections from tension or vibration
- Latching DisplayPort connector securely attaches to source devices
- Gold-plated connectors with EMI shielding minimize signal interference
- Universal compatibility with all operating systems without drivers or software
- HDCP 1.4 and 2.3 support for protected content playback
- 3-year limited warranty backed by enterprise-grade testing
- RoHS and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 3F-DP-HDMI-4K60-GR |
| Brand Name | StarTech.com |
| Product Name | 3ft DisplayPort to HDMI Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort/HDMI |
| Cable Length | 3 ft (0.91 m) |
| Outer Diameter | 0.22" (5.50 mm) |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video |
| Connector Gender on First End | Male |
| Connector on First End Details | 1x Displayport 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0b Digital Audio/Video |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1x HDMI 2.0b Digital Audio/Video - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,Monitor,Security System,Switch,External GPU,Display,PC |
| Data Transfer Rate | 18 Gbit/s |
| Features | Active,Gripping Connector,HDR Support,High Bit Rate 3 (HBR3),HDCP 1.4,HDCP 2.3,EMI Protection,Latching Connector,Durable |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | PVC |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
Does this cable require external power or drivers to function?
No, this is an active adapter cable that does not require external power, drivers, or software installation. The integrated conversion chipset draws power directly from the DisplayPort connection, ensuring plug-and-play compatibility with any operating system and hardware platform. This makes deployment straightforward across diverse IT environments.
How does the gripping connector prevent accidental disconnections?
The HDMI end features a gripping connector design with enhanced friction and retention mechanisms that resist pull-out from tension or vibration. Combined with the latching DisplayPort connector that securely locks into source devices, this dual approach ensures reliable connections in environments where cables may be bumped, moved, or subjected to incidental tension during use.
What devices are compatible with this DisplayPort to HDMI adapter cable?
The cable is compatible with devices featuring DisplayPort outputs including desktop PCs, laptops, external GPUs, security system workstations, and switches. It connects to HDMI displays, monitors, projectors, TVs, and audio/video devices. The universal design works with integrated or dedicated graphics from Intel, AMD, and Nvidia without platform restrictions.
Does this cable support HDR and what are the benefits?
Yes, this adapter cable supports HDR (High Dynamic Range), which expands the range of brightness levels and colors beyond standard dynamic range. This results in more realistic imagery with brighter highlights, deeper shadows, and richer color gradations. HDR is particularly beneficial for video content, gaming, and professional applications where visual accuracy and impact are important.
What content protection standards does this cable support?
The cable supports HDCP 1.4 and HDCP 2.3 content protection standards, ensuring compatibility with protected content from streaming services, Blu-ray players, media applications, and other copy-protected sources. This makes it suitable for commercial and educational environments where licensed content playback is required without signal interruption or compatibility issues.
What connectivity or interface options are available?
Connectivity options include DisplayPort 1.4 Digital Audio/Video, helping the product integrate into common office or home setups.
