StarTech. com DP2VGAMM3B 3ft DisplayPort to VGA Active Adapter Cable - 1080p Video - 1920 x 1200 - Latching DP & Screw Lock VGA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter cable utilizes DisplayPort 1.2 (HBR2) technology on the source end, connecting via a 20-pin male DisplayPort connector. The VGA end features a standard 15-pin HD-15 male connector. The integrated active converter chip handles the digital-to-analog translation, supporting EDID and DDC pass-through for seamless plug-and-play operation between the source device and the display.
Key technical features include a latching mechanism on the DisplayPort connector to secure the connection and prevent accidental disconnection, along with screw-lock terminals on the VGA side for a firm, vibration-resistant attachment. The cable itself is flexible and designed to minimize desk clutter, with the converter electronics housed compactly within the VGA connector shell.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter cable eliminates the need for separate external converter boxes, integrating all necessary electronics into a single, streamlined cable. This design reduces cable clutter, simplifies setup, and provides a more reliable connection by minimizing points of failure.
Universal Compatibility
Works with DisplayPort or DP++ sources from AMD, NVIDIA, and integrated graphics platforms, connecting to VGA displays, projectors, TVs, and monitors without requiring drivers or software.
- Supports macOS, Windows, Ubuntu
- Connects to workstations, desktops, laptops, docking stations
Secure Connection Design

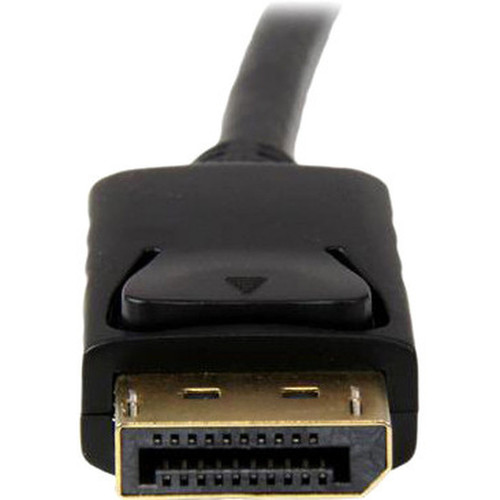

Features a latching DisplayPort connector that clicks into place for a solid host connection, combined with screw-lock VGA terminals that physically secure the cable to the display to prevent loosening from movement or vibration.
Environmental Responsibility
Manufactured in compliance with EU RoHS, REACH, and WEEE directives, ensuring reduced hazardous substances and adherence to environmental standards for electronic products.
Deployment / Use Cases
This DisplayPort to VGA adapter is ideal for environments where modern computers need to connect to older VGA-based display equipment. Common scenarios include corporate offices upgrading workstations but retaining existing monitors, educational institutions using legacy projectors in classrooms, or home offices extending the usability of older LCD monitors.
Its plug-and-play nature makes it suitable for temporary setups such as conference room presentations, trade show displays, or testing benches where quick connectivity between newer laptops and older display hardware is required. The active conversion ensures signal integrity over the cable's length, supporting sharp video output up to 1920x1200 resolution for detailed spreadsheets, presentations, or general desktop use.
Physical Profile
The cable features a sleek black design that blends discreetly with most workspace aesthetics. With a total length of 3 feet (0.91 meters), it provides sufficient reach for typical desk setups without excess slack. The flexible cable jacket and integrated converter contribute to a tidy installation, while the lightweight construction at 3.17 ounces (90 grams) ensures minimal strain on ports.
- Weight
- 3.17 oz (90 g)
- Length
- 3 ft (0.91 m)
Highlights
- Active DisplayPort to VGA adapter cable with integrated converter chip
- Supports resolutions up to 1920x1200, including 1080p at 60Hz
- Latching DisplayPort connector ensures a secure host connection
- Screw-lock VGA terminals prevent accidental disconnection
- Plug-and-play operation; no drivers or software required
- Compatible with macOS, Windows, and Ubuntu operating systems
- Connects to projectors, monitors, TVs, PCs, workstations, and docking stations
- Flexible 3-foot black cable reduces desk clutter
- DisplayPort 1.2 (HBR2) to HD-15 VGA male connectors
- Backed by a 3-year limited warranty and EU RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2VGAMM3B |
| Brand Name | StarTech.com |
| Product Name | 3 ft DisplayPort to VGA Adapter Converter Cable - DP to VGA 1920x1200 - Black |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable Adapter |
| Technical Information | |
| Cable Type | DisplayPort/VGA |
| Cable Length | 3 ft (0.91 m) |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| Device Supported | Projector,Monitor,TV,Notebook,Video Device,PC,Audio/Video Device,Desktop Computer,Workstation,Docking Station |
| Supported Resolution | 1920 x 1200 |
| Features | Active,Latching Connector,Extended Display Identification Data (EDID),Display Data Channel (DDC) Compatible,Flexible,Screw Lock |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 3.17 oz (90 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution supported by this DisplayPort to VGA cable?
This active adapter cable supports a maximum resolution of 1920 x 1200, which includes full 1080p (1920x1080) at a 60Hz refresh rate. It is designed for clear video output on VGA displays, making it suitable for office productivity, presentations, and general computing tasks where high-definition detail is required.
Does this cable require external power or software drivers to work?
No, this is a plug-and-play cable that does not require external power adapters, software drivers, or additional installation. The active conversion circuitry is powered directly through the DisplayPort connection, and it works immediately with compatible operating systems like Windows, macOS, and Ubuntu upon connection.
What types of devices can I connect with this DP to VGA adapter?
You can connect DisplayPort or DP++ output sources—such as desktops, workstations, laptops, and docking stations from AMD, NVIDIA, or integrated graphics platforms—to VGA input devices like monitors, projectors, TVs, and legacy displays. It supports a broad range of computers and video devices commonly found in office, educational, and home environments.
How does the latching DisplayPort connector improve reliability?
The latching mechanism on the DisplayPort connector clicks securely into place on the host device, preventing the cable from accidentally dislodging due to movement or tension. This ensures a stable video signal transmission and reduces the risk of connection interruptions during use, which is particularly valuable in professional or presentation settings.
What is the purpose of the screw-lock feature on the VGA end?

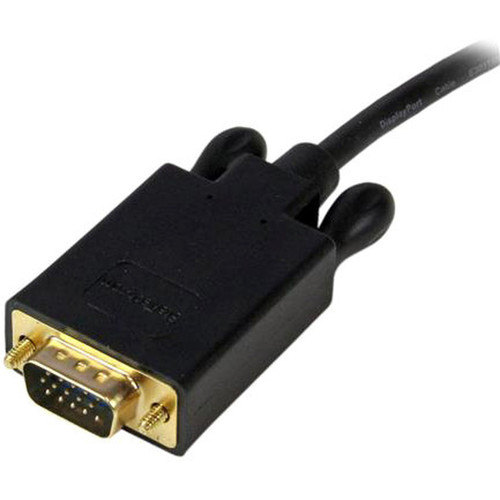

The screw-lock terminals on the VGA connector allow you to physically secure the cable to the display by tightening the built-in screws. This prevents the cable from coming loose from vibration, accidental tugs, or frequent plugging/unplugging, providing a more reliable and durable connection for stationary setups like desktop monitors or installed projectors.
What resolution or display format is specified?
It features a display specification of 1920 x 1200, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include DisplayPort 1.2 Digital Audio/Video - Male, helping the product integrate into common office or home setups.
